Multi-ribbed belt 5 PK 835 (329-K) optibelt RBK
Code: 258566
Product detailed description
Multi-V-belt 5 PK 835 from the manufacturer optibelt, type RBK. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands on power transmission and high speeds. The inch designation is 329-K, where \K\ stands for the profile - equivalent to \PK\ and 329 is the inch length of the belt. In this case 32.9 inches = 835 mm. What is not indicated on the belt is the number of ribs. Since the belt is cut from a sleeve, the number of ribs (wedges) is necessary. ribs 5 pieces. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PK 3.56 mm > 5 PK |
|---|---|
| Weight: | 0.075 kg |
| EAN: | 4014486350104 |
| Calculation length Lw, Lp, mm: | 835 |

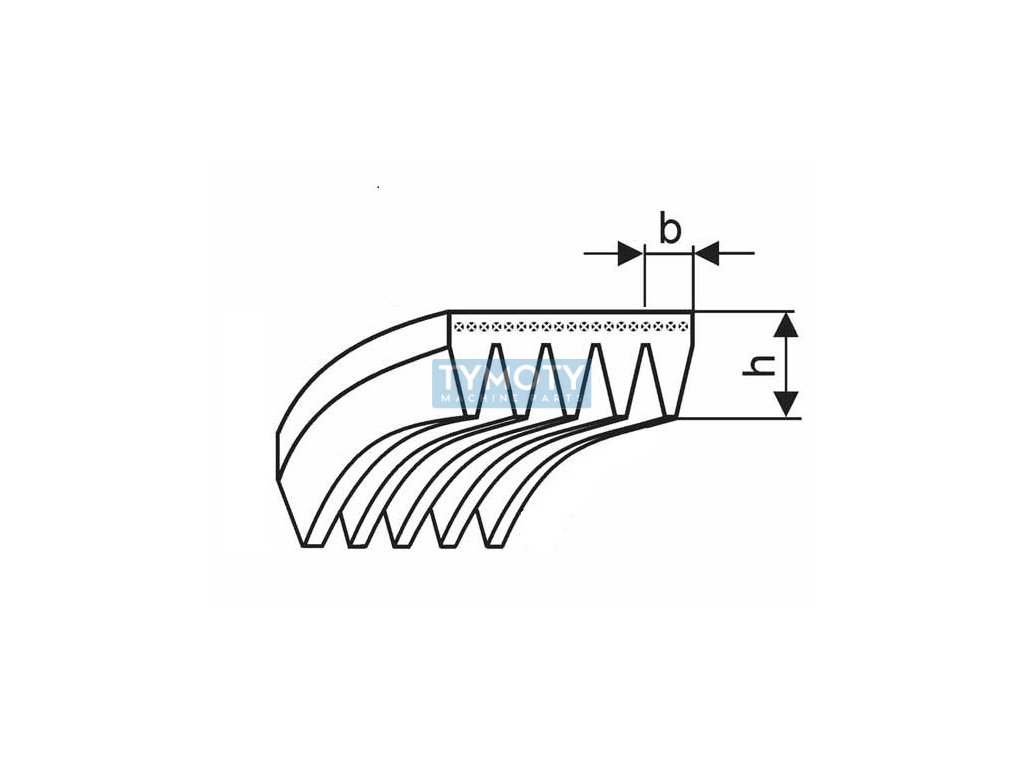

| Height H (mm): | 4,6 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 45 |
| Number of teeth (splines): | 5 |
| Product: | RBK |
| Profile: | PK |
| Spacing t (mm): | 3,56 |
| Width B (mm): | 17,8 |
| Číslo výrobce: | 1552618 |
| Značení: | 329-K |
| Řada: | 5 PK 835 |
| Typ: | víceklínový žebrový řemen |
