Multi-ribbed belt 4 PK 1930 (760-K) optibelt RB
Code: 250569
Product detailed description

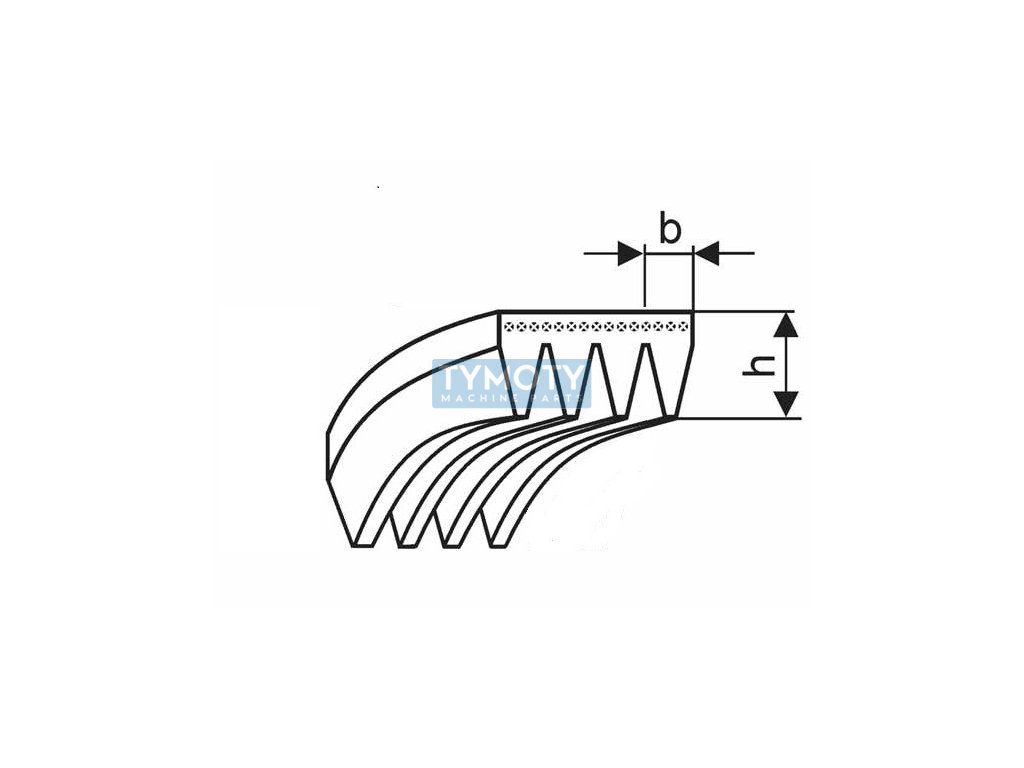

Multi-V-belt 4 PK 1930 from the manufacturer optibelt, type RB. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands for power transmission and high speeds. The inch designation is 760-K, where \K\ stands for the profile - equivalent to \PK\ and 760 is the inch length of the belt. In this case 76 inches = 1930 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (v-ribs) is necessary. 4 pieces of ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PK 3.56 mm > 4 PK |
|---|---|
| Weight: | 0.178 kg |
| EAN: | 4014486115918 |
| Calculation length Lw, Lp, mm: | 1930 |
| Height H (mm): | 4,6 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 45 |
| Number of teeth (splines): | 4 |
| Product: | RB |
| Profile: | PK |
| Spacing t (mm): | 3,56 |
| Width B (mm): | 14,24 |
| Číslo výrobce: | 1931753 |
| Značení: | 760-K |
| Řada: | 4 PK 1930 |
| Typ: | víceklínový žebrový řemen |
