Multi-ribbed belt 4 PK 1070 (421-K) Rubena Multi VRC
Code: 240451
Product detailed description

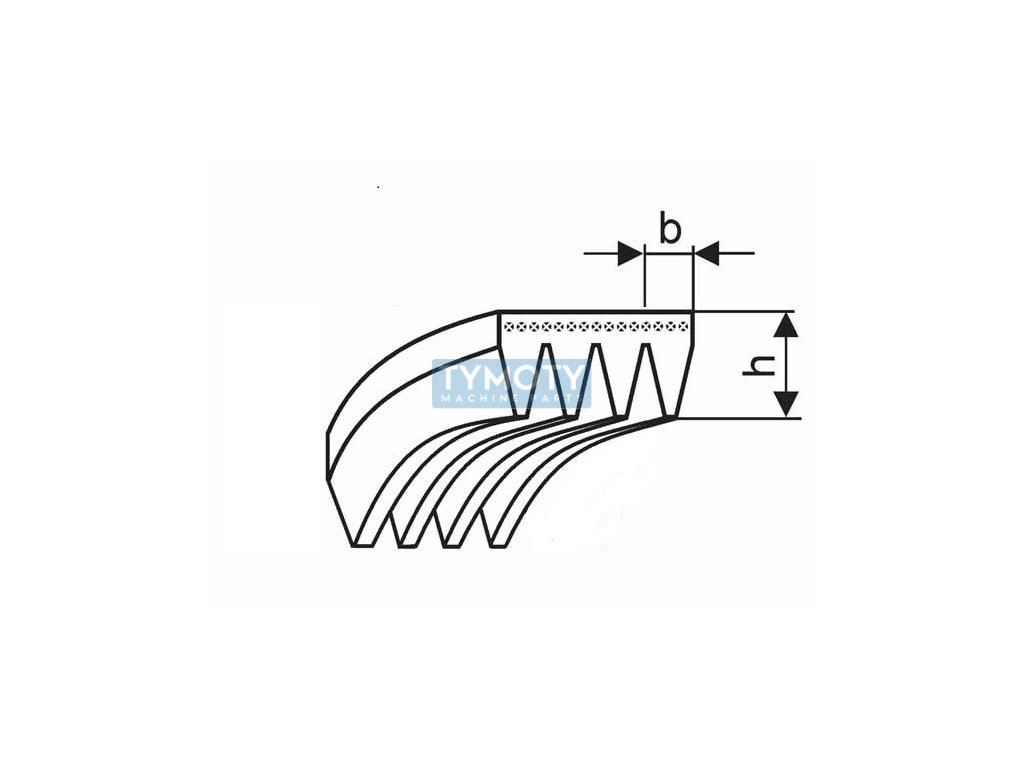

Multi-V-belt 4 PK 1070 from the manufacturer Rubena, type Multi VRC. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands for power transmission and high speeds. The inch designation is 421-K, where \K\ stands for the profile - equivalent to \PK\ and 421 is the inch length of the belt. In this case 42.1 inches = 1070 mm. What is not stated on the belt is the number of ribs. The number of ribs is 4 pieces. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PK 3.56 mm > 4 PK |
|---|---|
| Weight: | 0.086 kg |
| Calculation length Lw, Lp, mm: | 1070 |
| Height H (mm): | 4,6 |
| Manufacturer's brand: | Rubena |
| Minimum diameter: | 45 |
| Number of teeth (splines): | 4 |
| Product: | Multi-spline belt - ribbed |
| Profile: | PK |
| Spacing t (mm): | 3,56 |
| Width B (mm): | 14,24 |
| Řada: | Multi VRC |
