Multi-ribbed belt 4 PJ 560 (220-J) Flexonic Hutchinson Poly-V

Product detailed description

The 4 PJ 560 (220-J) Flexonic Hutchinson Poly-V multi-V belt is a high-quality component designed for the transmission of mechanical energy in various industrial applications. This belt is designed with a PJ profile, which means that it is suitable for applications requiring high flexibility and efficient power transmission on smaller pulley diameters.

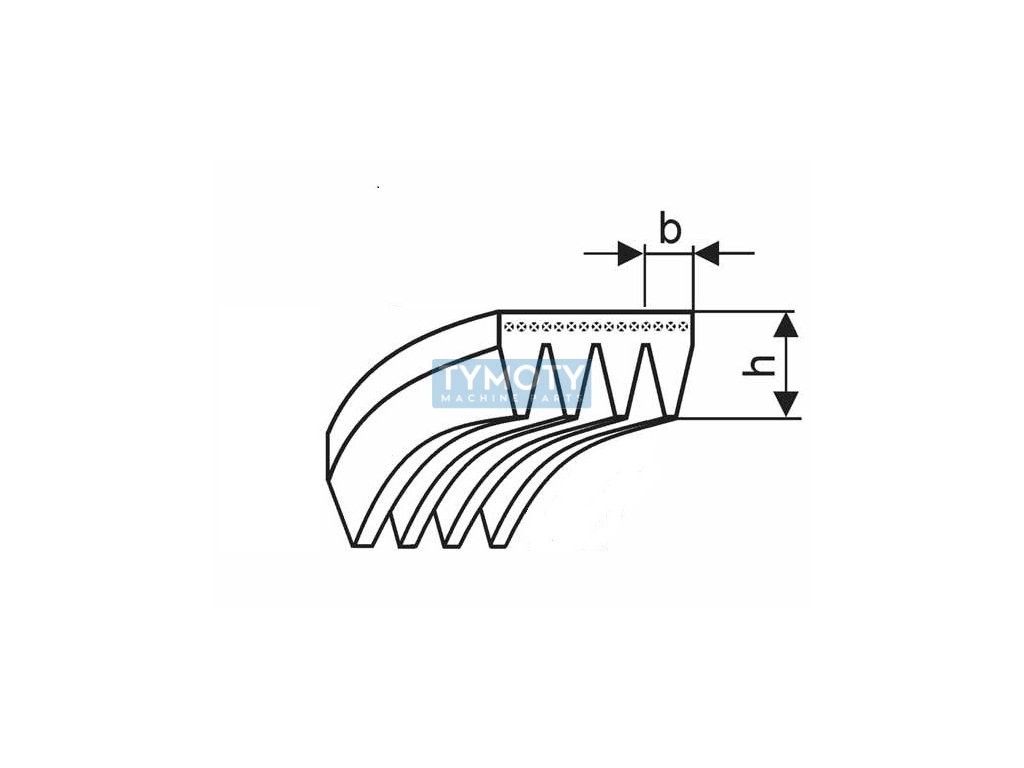

The belt has a width of 9.36 mm and a height of 3.5 mm, which guarantees optimal stability and wear resistance. The pitch between the individual wedges is 2.34 mm, which allows for precise fit into the pulley grooves and minimizes the risk of skipping or slipping. The total number of wedges is four, which provides sufficient contact with the pulley surface and improves torque transmission.

The calculated length of the belt is 560 mm, which corresponds to the inch marking 220-J. This length is critical for the correct tension and functionality of the belt in the system. The belt is manufactured by Hutchinson, a company known for its precision manufacturing and the use of quality materials, which guarantees a long service life and reliability of the product.

This multi-V-belt is ideal for use in equipment where it is necessary to transmit power over short distances with high efficiency. Its design allows for quiet operation and reduces vibrations, which contributes to an overall reduction in wear on mechanical parts.
