Multi-ribbed belt 4 PJ 559 (220-J) optibelt RB
Code: 245862
Product detailed description

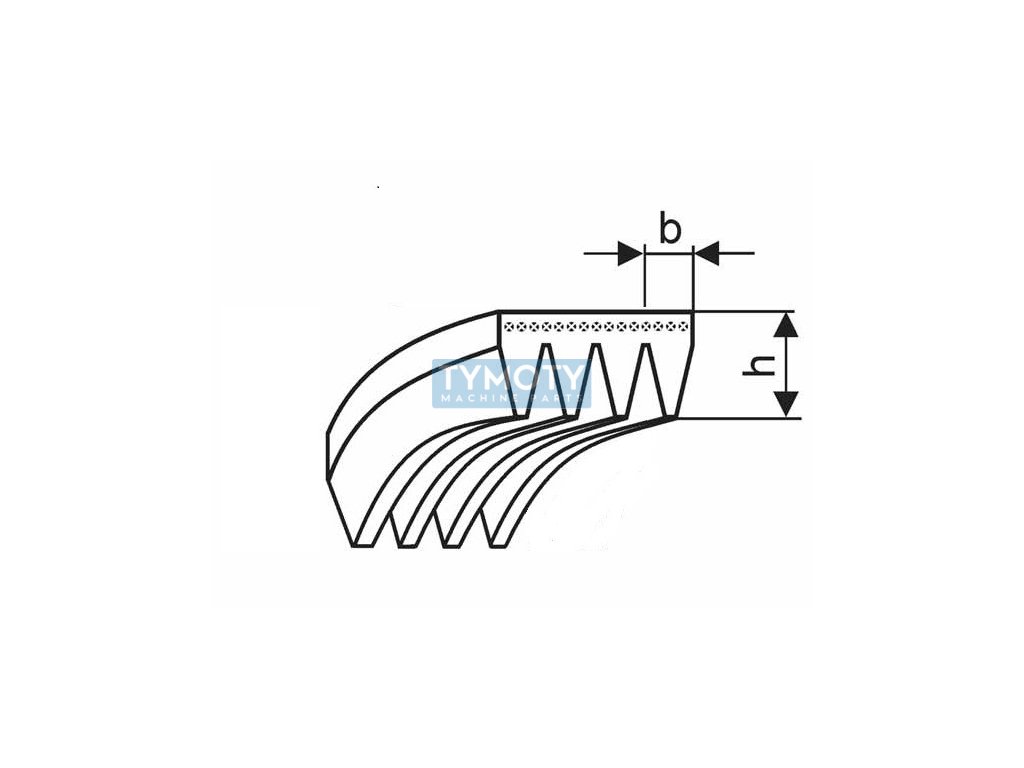

Multi-V-belt 4 PJ 559 from the manufacturer optibelt, type RB. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands for power transmission and high speeds. The inch designation is 220-J, where \J\ stands for the profile - equivalent to \PJ\ and 220 is the inch length of the belt. In this case 22 inches = 559 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (v-ribs) is necessary. 4 pieces of ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PJ 2.34 mm > 4 PJ |
|---|---|
| Weight: | 0.02 kg |
| EAN: | 4014486114843 |
| Calculation length Lw, Lp, mm: | 559 |
| Height H (mm): | 3,5 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 20 |
| Number of teeth (splines): | 4 |
| Product: | RB |
| Profile: | PJ |
| Spacing t (mm): | 2,34 |
| Width B (mm): | 9,36 |
| Číslo výrobce: | 1790780 |
| Značení: | 220-J |
| Řada: | 4 PJ 559 |
| Typ: | víceklínový žebrový řemen |
