Multi-ribbed belt 4 PJ 254 (100-J) Hutchinson Poly-V
Code: 241847
Product detailed description

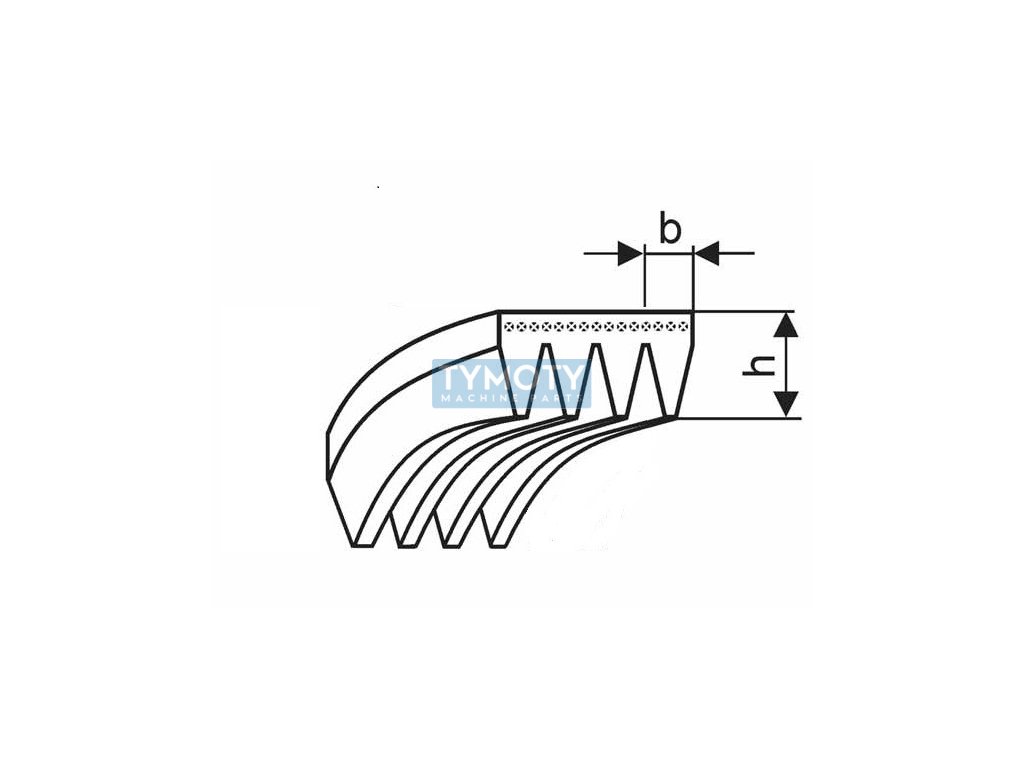

Multi-V belt 4 PJ 254 from Hutchinson, type POLY-V. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands for power transmission and high speeds. The inch designation is 100-J, where \J\ stands for the profile - equivalent to \PJ\ and 100 is the inch length of the belt. In this case 10 inches = 254 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (v-ribs) is necessary. 4 pieces of ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PJ 2.34 mm > 4 PJ |
|---|---|
| Weight: | 0.019 kg |
| Calculation length Lw, Lp, mm: | 254 |
| Height H (mm): | 3,5 |
| Manufacturer's brand: | Hutchinson |
| Number of teeth (splines): | 4 |
| Product: | POLY-V |
| Profile: | PJ |
| Spacing t (mm): | 2,34 |
| Width B (mm): | 9,36 |
