Multi-ribbed belt 3 PK 600 (236-K) optibelt RBK
Code: 243083
Product detailed description
Multi-V-belt 3 PK 600 from the manufacturer optibelt, type RBK. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands on power transmission and high speeds. The inch designation is 236-K, where \K\ stands for the profile - equivalent to \PK\ and 236 is the inch length of the belt. In this case 23.6 inches = 600 mm. What is not indicated on the belt is the number of ribs. Since the belt is cut from the sleeve, the number of ribs (wedges) is necessary. 3 ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PK 3.56 mm > 3 PK |
|---|---|
| Weight: | 0.058 kg |
| EAN: | 4014486330489 |
| Calculation length Lw, Lp, mm: | 600 |

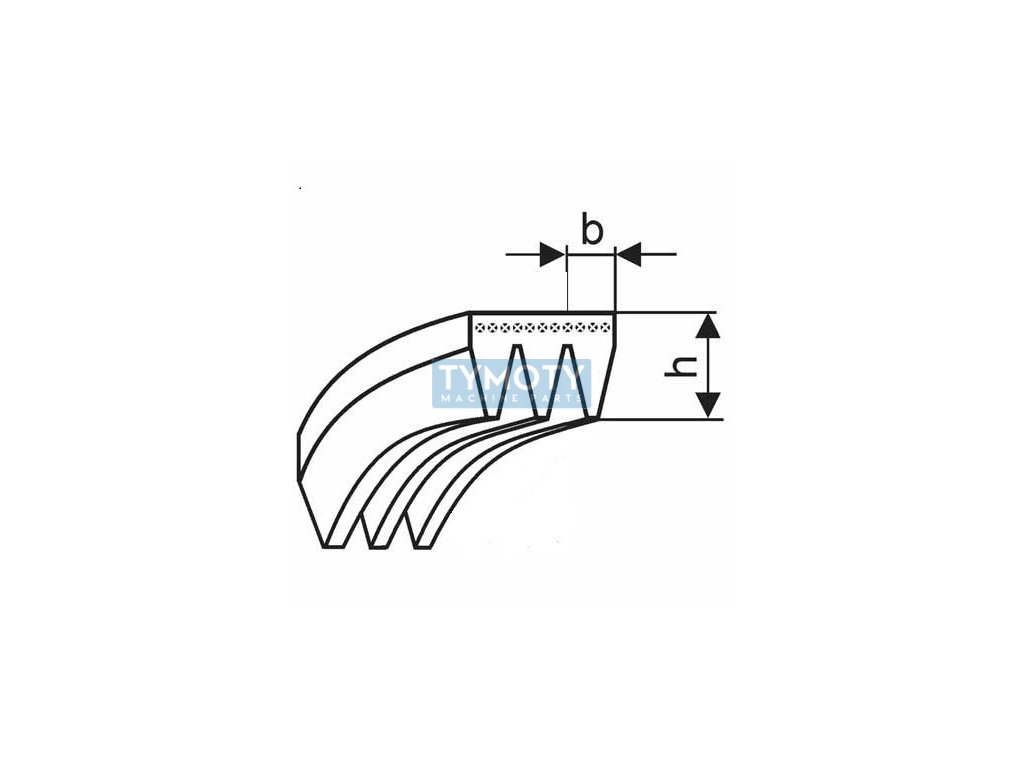

| Height H (mm): | 4,6 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 45 |
| Number of teeth (splines): | 3 |
| Product: | RBK |
| Profile: | PK |
| Spacing t (mm): | 3,56 |
| Width B (mm): | 10,68 |
| Číslo výrobce: | 1907123 |
| Značení: | 236-K |
| Řada: | 3 PK 600 |
| Typ: | víceklínový žebrový řemen |
