Multi-ribbed belt 2 PJ 483 (190-J) optibelt RB
Code: 244946
Product detailed description
Multi-V-belt 2 PJ 483 from the manufacturer optibelt, type RB. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands on power transmission and high speeds. The inch designation is 190-J, where \J\ stands for the profile - equivalent to \PJ\ and 190 is the inch length of the belt. In this case 19 inches = 483 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (v-ribs) is necessary. 2 pieces of ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PJ 2.34 mm > 2 PJ |
|---|---|
| Weight: | 0.009 kg |
| EAN: | 4014486105834 |
| Calculation length Lw, Lp, mm: | 483 |

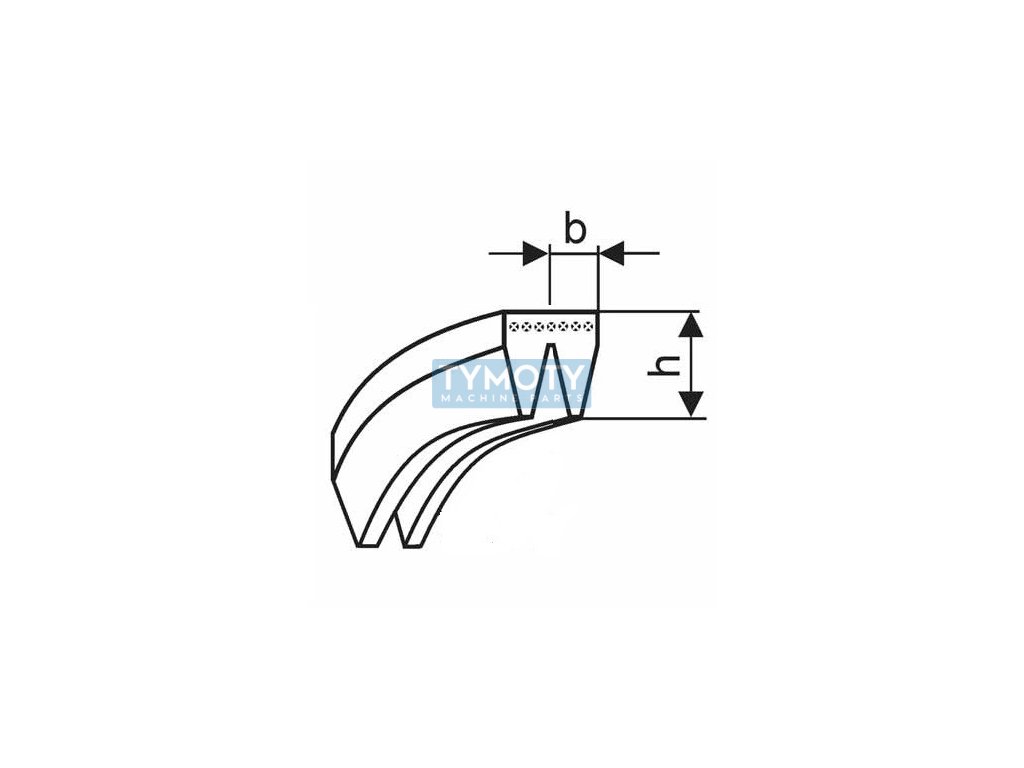

| Height H (mm): | 3,5 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 20 |
| Number of teeth (splines): | 2 |
| Product: | RB |
| Profile: | PJ |
| Spacing t (mm): | 2,34 |
| Width B (mm): | 4,68 |
| Číslo výrobce: | 1682543 |
| Značení: | 190-J |
| Řada: | 2 PJ 483 |
| Typ: | víceklínový žebrový řemen |
