Multi-ribbed belt 15 PJ 1321 (520-J) optibelt RB
Code: 248400
Product detailed description
Multi-V-belt 15 PJ 1321 from the manufacturer optibelt, type RB. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands on power transmission and high speeds. The inch designation is 520-J, where \J\ stands for the profile - equivalent to \PJ\ and 520 is the inch length of the belt. In this case 52 inches = 1321 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (wedges) is necessary. 15 ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PJ 2.34 mm > 15 PJ |
|---|---|
| Weight: | 2.46 kg |
| Calculation length Lw, Lp, mm: | 1321 |

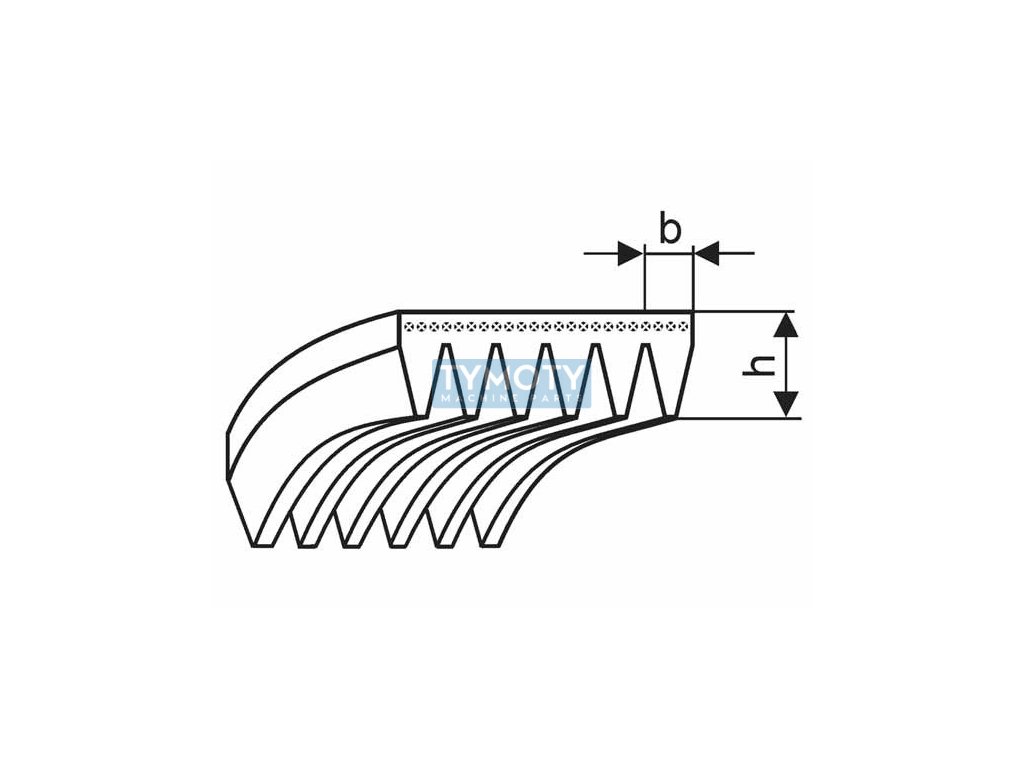

| Height H (mm): | 3,5 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 20 |
| Number of teeth (splines): | 15 |
| Product: | RB |
| Profile: | PJ |
| Spacing t (mm): | 2,34 |
| Width B (mm): | 35,1 |
| Číslo výrobce: | 1546581-15 |
| Značení: | 520-J |
| Řada: | 15 PJ 1321 |
| Typ: | víceklínový žebrový řemen |
