MTM 2305-2RS tilt ball bearing
Code: 321701
Product detailed description

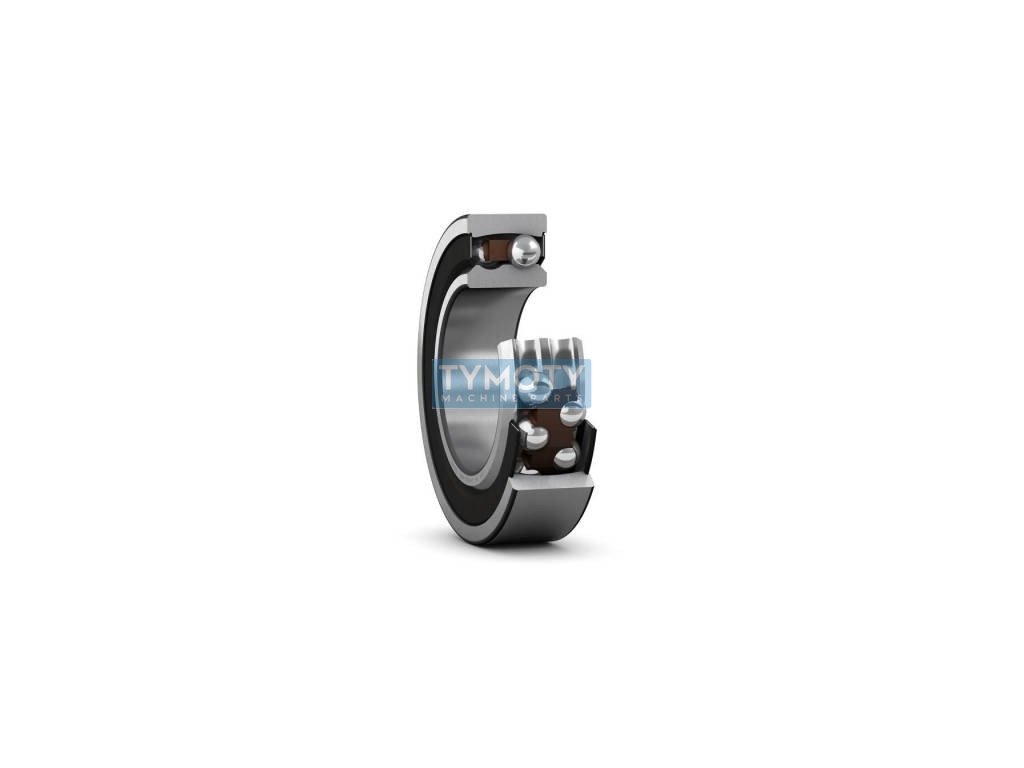

CX 2305-2RS - non-separable double-row self-aligning ball bearing with a pressed steel cage guided by two rows of balls, double-sided friction seals and normal radial clearance. The seals are made of oil-resistant and wear-resistant and are pressed into grooves in the outer ring. The sealing blades rest on a smooth inner ring. The outer ring has a common spherical raceway for both rows of balls, which allows the bearing to be tilted and to compensate for misalignment or deflection of the shaft relative to the housing.Additional parameters
| Category: | Bearings > tilting ball > 23.. > 2305 |
|---|---|
| Weight: | 0.361 kg |
| EAN: | 3838486269676 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 25, 62 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | MTM |
| Material: | steel |
| Seal: | double-sided - rubber |
| Width B (mm): | 24 |
| Značení: | 2305-2RS |
| Typ: | naklápěcí kuličkové ložisko |
