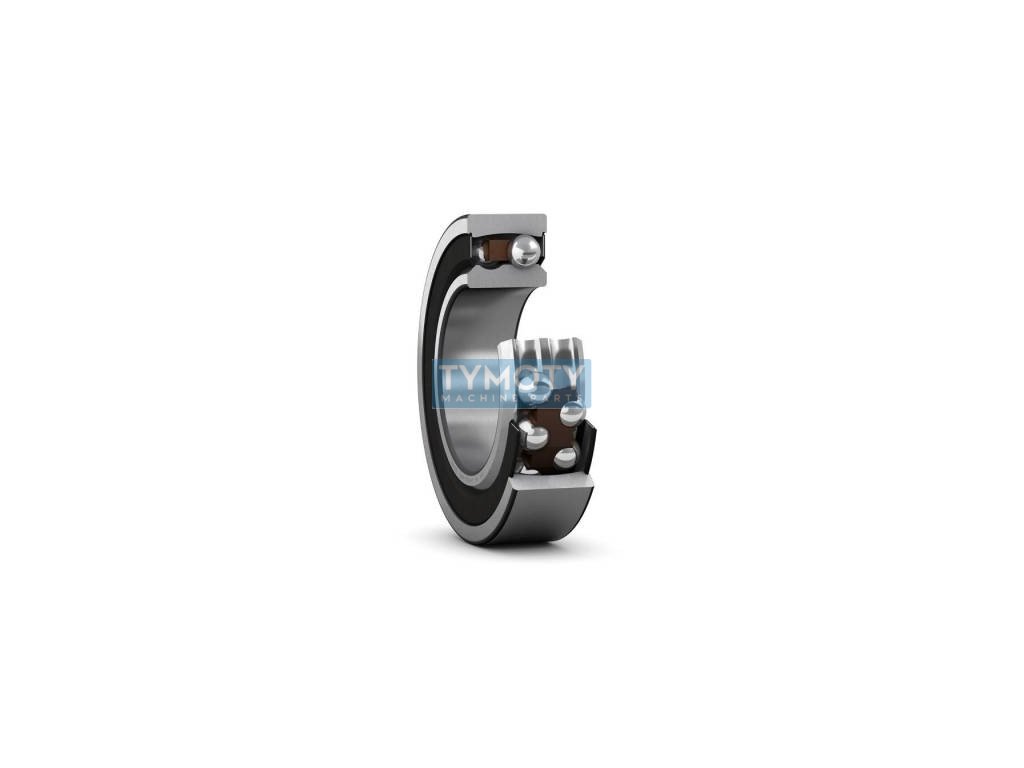

MTM 2203-2RS tilt ball bearing
Code: 321121
Product detailed description
MTM 2203-2RS - non-separable double-row self-aligning ball bearing with a pressed steel cage guided by two rows of balls, friction seals on both sides and with normal radial clearance. metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on a smooth inner ring. The outer ring has a common spherical raceway for both rows of balls, which allows the bearing to be tilted and to compensate for misalignment or deflection of the shaft relative to the housing.Additional parameters
| Category: | Bearings > tilting ball > 22.. > 2203 |
|---|---|
| Weight: | 0.096 kg |
| EAN: | 3838486269454 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 17, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | MTM |
| Material: | steel |
| Seal: | double-sided - rubber |
| Width B (mm): | 16 |
| Značení: | 2203-2RS |
| Typ: | naklápěcí kuličkové ložisko |
