Mounting ring DIN 705A 12x22x12

Product detailed description

The DIN 705A 12x22x12 adjusting ring is a precision machined component designed for fixing and positioning rotating parts on shafts. This ring is made of steel, which guarantees its high strength and resistance to mechanical wear. The DIN 705A standard, according to which the ring is manufactured, defines its design parameters and ensures compatibility with other components in mechanical engineering applications.

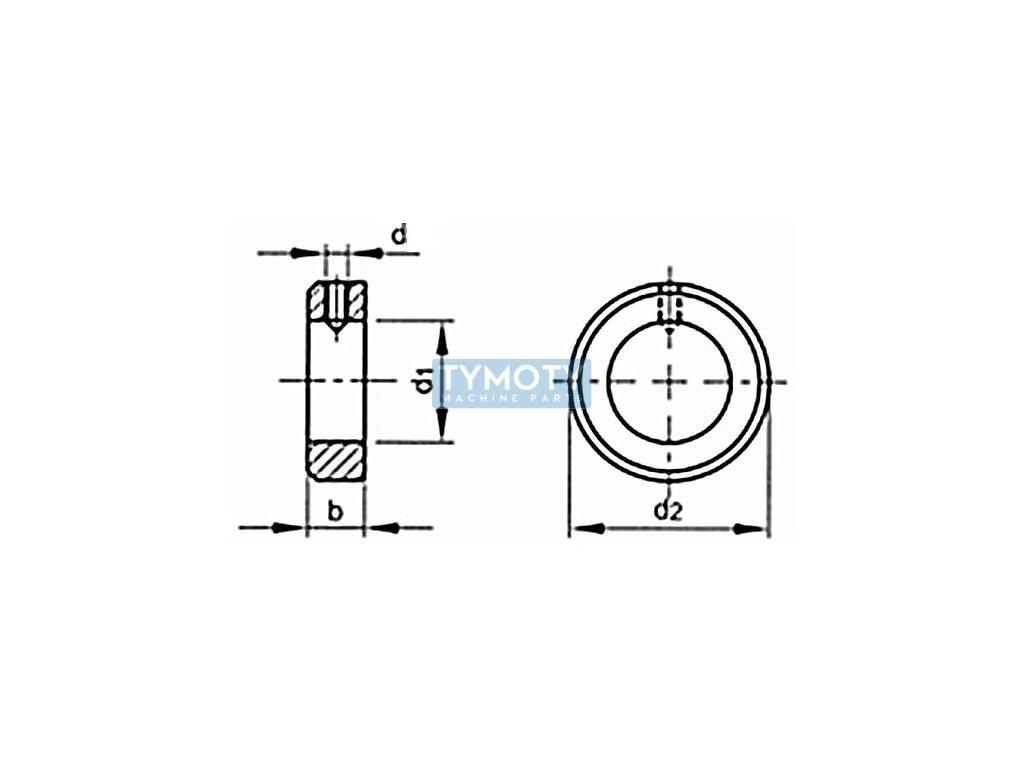

The ring has dimensions of 12 mm (inner diameter) x 22 mm (outer diameter) x 12 mm (width), which makes it suitable for use with shafts with a diameter of 12 mm. It is equipped with an adjusting screw according to DIN 553/ISO 7434, which allows the ring to be firmly attached to the shaft and prevents it from shifting during operation. This screw is located tangentially, which simplifies the assembly and disassembly of the ring without the need to disassemble other components.

The use of this adjusting ring is wide, especially in areas where precise adjustment and fixation of the position of components is required, such as gearboxes, motors and other rotating mechanisms. Due to its design and material properties, it is suitable for applications with high demands on reliability and accuracy.
