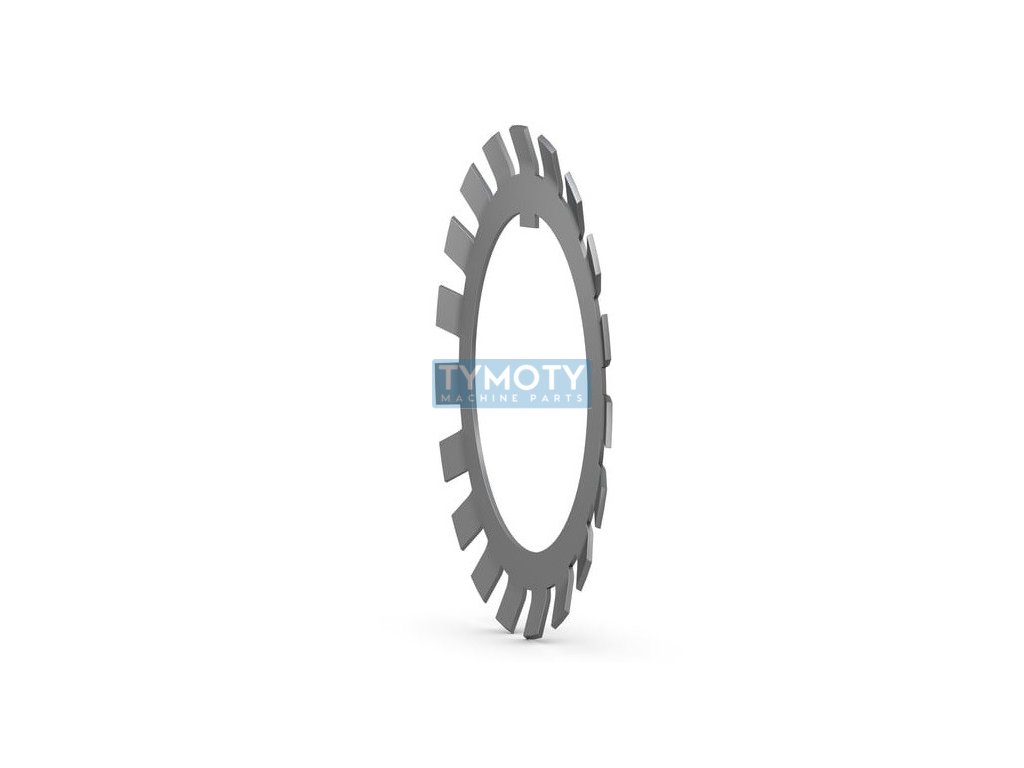

MB 30 CX lock washer

Product detailed description

The MB 30 lock washer from CX is a structural component designed to ensure reliable fastening and prevent loosening of bolted joints in mechanical assemblies. This washer is made of steel, which guarantees high strength and resistance to mechanical stress and corrosion.

The washer has an outer diameter d1 of 171 mm and an inner diameter d of 150 mm, which allows it to be used in connections with larger diameters. The total diameter D is 205 mm, which provides sufficient contact area for effective load distribution. The thickness of the washer is 2 mm, which is optimal for ensuring stability and strength of the connection without unnecessarily increasing the weight of the assembly.

The length L of the washer is 145 mm and the width B is 2 mm, with the width b being 16 mm. These dimensions are designed so that the washer can be effectively integrated into various types of mechanical assemblies, ensuring reliable fastening and minimizing the risk of loosening of joints due to vibrations or dynamic loads.

The MB 30 lock washer is marked with the type designation MB 30, which facilitates its identification and compatibility with other components within the technical specifications and documentation. This type of washer is ideal for use in industrial applications where it is necessary to ensure high reliability and safety of joints.
