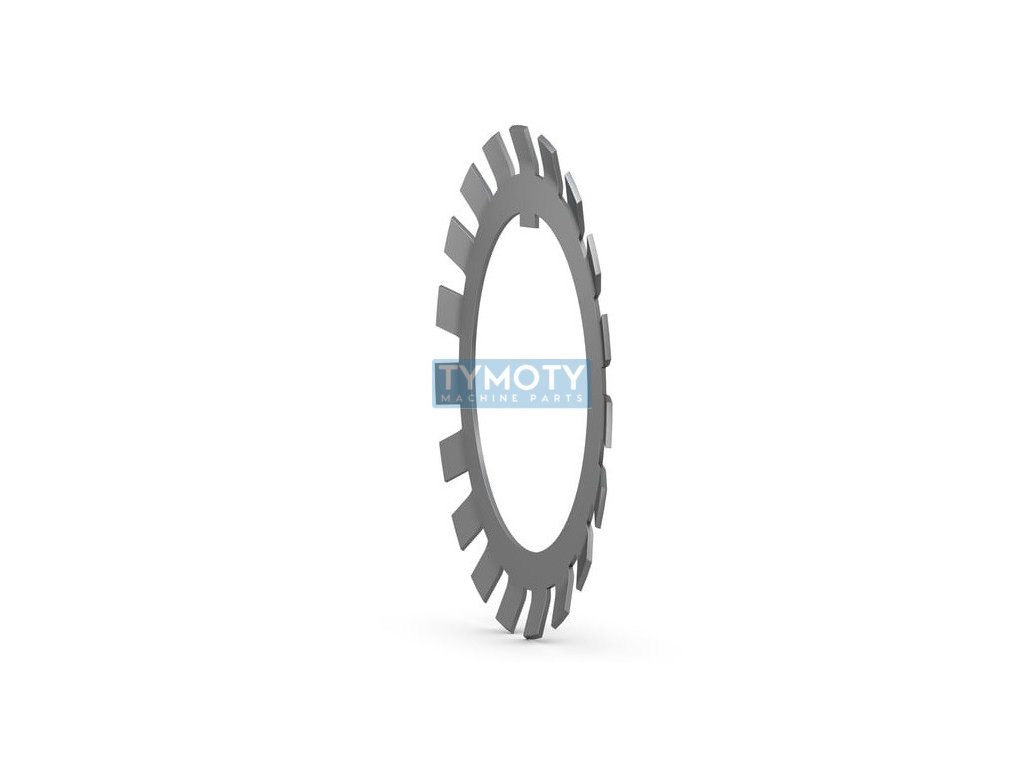

MB 3 MTM lock washer

Product detailed description

The MB 3 lock washer from MTM is a structural component designed to ensure a reliable connection in mechanical assemblies. This washer is made of steel, which guarantees its high strength and resistance to mechanical stress. Steel is a material known for its ability to resist deformation and wear, which is key for components that are exposed to dynamic loads.

The MB 3 washer has an outer diameter d1 of 24 mm and an inner diameter d of 17 mm, which allows it to be used with shafts or screws with a diameter of up to 17 mm. The total diameter D is 32 mm, which provides sufficient contact area for pressure distribution and ensuring connection stability. The thickness of the washer is 1 mm, which is the optimal value for ensuring strength without unnecessarily increasing the weight of the assembly.

The length L of the washer is 15.5 mm, which together with the width B of 1 mm and the width b of 4 mm allows it to be easily integrated into various mechanical systems. These dimensions are designed so that the washer can effectively perform its function in various applications where it is necessary to ensure a reliable and durable connection.

The MB 3 lock washer is marked as type MB 3, which is the standard designation for this type of component within the MTM product range. This type of washer is often used in industrial applications where it is necessary to ensure that bolted joints do not loosen due to vibration or other dynamic forces. It is suitable for use in various industries, including mechanical engineering, automotive and equipment manufacturing.
