MB 19 FAG lock washer

Product detailed description

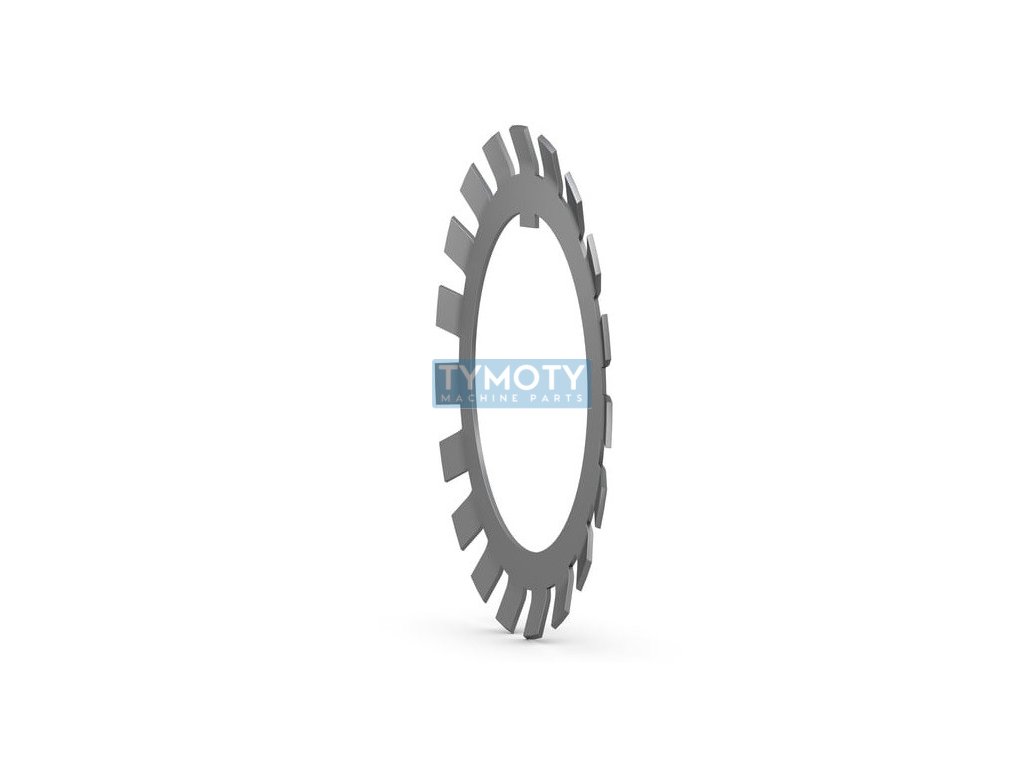

The MB 19 FAG lock washer is a structural component designed to secure mechanical assemblies, especially in the field of bearings and rotating systems. This washer is made of steel, which guarantees high strength and resistance to mechanical stress. Its main function is to prevent the loosening of nuts or other fasteners, thus contributing to the stability and safety of the entire assembly.

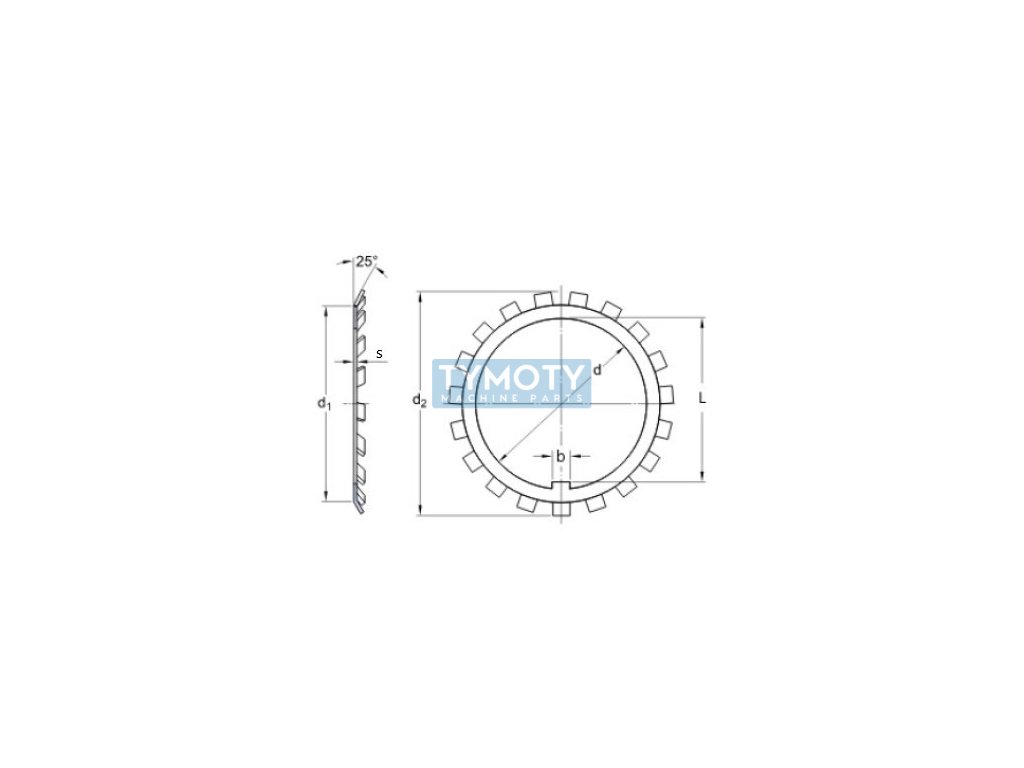

The washer has an internal diameter (d) of 95 mm, which allows it to be used on shafts of the same diameter. The external diameter (d1) is 113 mm, while the total external diameter (D) is 133 mm. These dimensions are critical for correct installation and guarantee compatibility with other components. The thickness of the washer (s) is 1.75 mm, which provides sufficient strength with minimal weight addition to the assembly.

The length of the washer (L) is 91.5 mm and the width (B) is 1.75 mm, with the width b being 10 mm. These dimensions are optimized for effective force distribution and ensuring a reliable fit. The weight of the washer is 0.08 kg, which is advantageous for applications where weight efficiency is important.

The manufacturer FAG, known for its precision and quality, guarantees that this lock washer meets high standards and is suitable for demanding industrial applications. The product is marked with the code MB19 and is identified by the manufacturer with the number 016733312-0000. This washer is ideal for use in applications where it is necessary to ensure a reliable and durable connection, while being compatible with various types of bearings and rotating systems.
