MB 16 FAG lock washer

Product detailed description

The MB 16 FAG lock washer is a structural component designed to secure nuts on shafts, preventing them from loosening during operation. This washer is made of steel, which guarantees high strength and resistance to mechanical stress. Its use is suitable in applications where reliable securing of threaded connections is required, for example in mechanical engineering or the automotive industry.

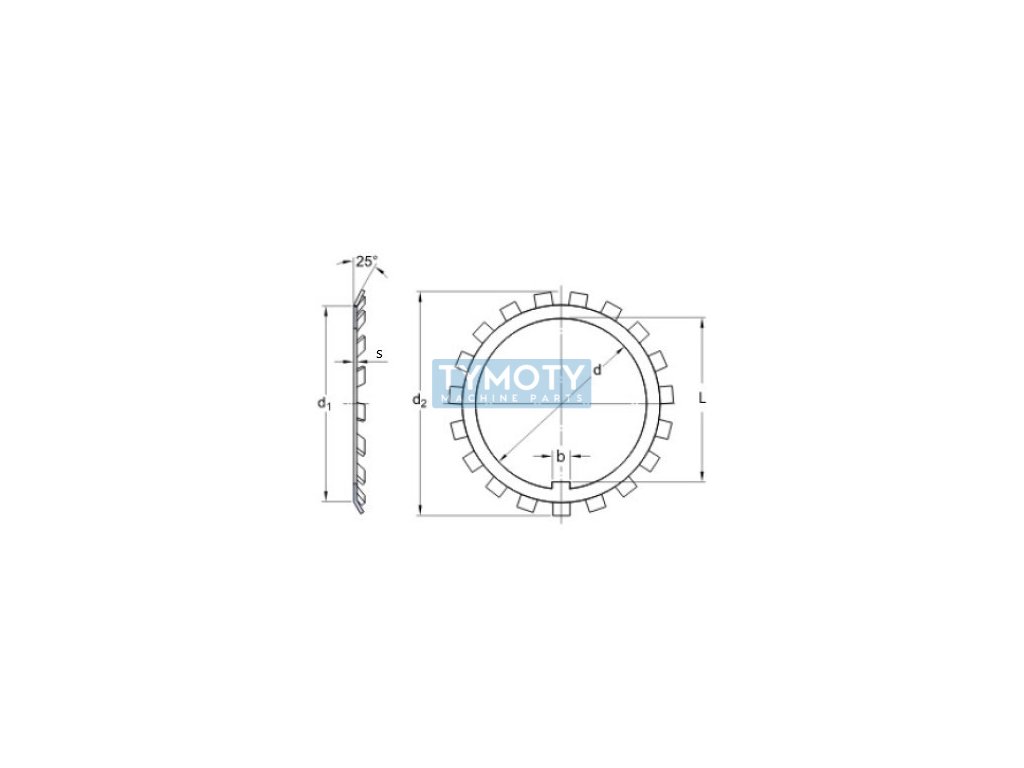

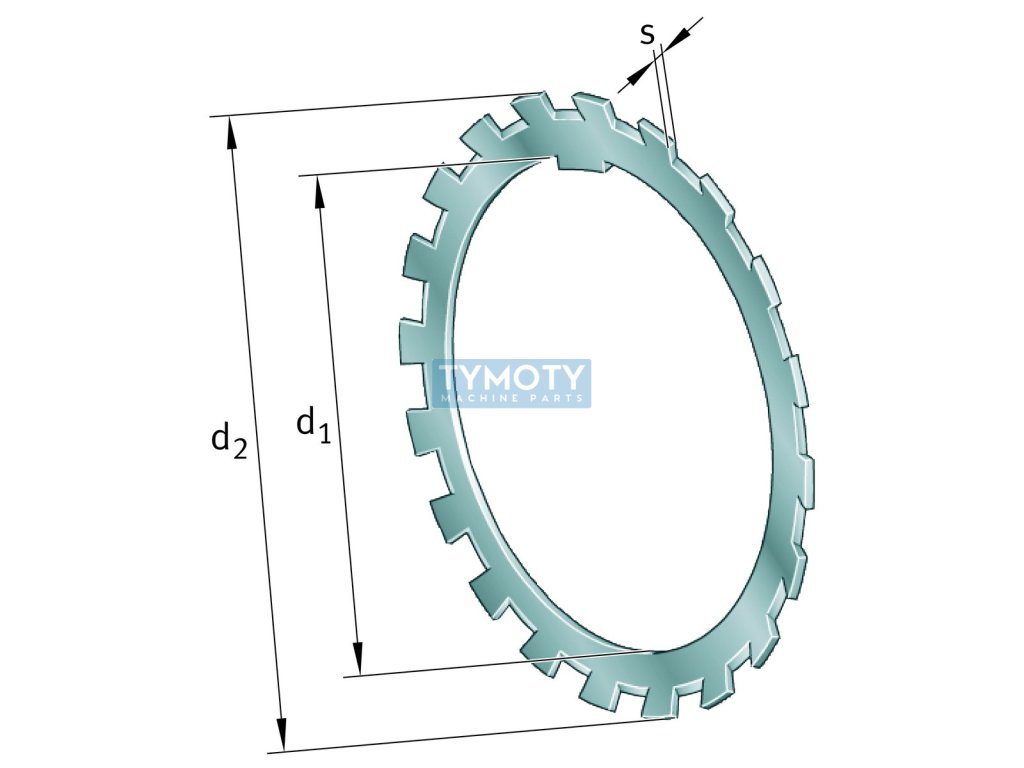

The dimensions of the washer are precisely defined: the inner diameter d is 80 mm, the outer diameter d1 is 95 mm and the total outer diameter D is 112 mm. The thickness of the washer, referred to as the width s, is 1.75 mm, which is important for correct seating and function within the mechanical connection. The width b is 10 mm, which corresponds to the width of the washer's locking element.

The length L of the washer is 76.5 mm, which allows its compatibility with various types of nuts and shafts. The total weight of the washer is 0.045 kg, which contributes to its easy handling and installation. The manufacturer FAG, known for its quality and precision, guarantees that this lock washer meets high standards of reliability and durability.

The MB 16 FAG lock washer is marked with the code MB16 and is identified by the manufacturer with the number 016733258-0000. This component is part of the Schaeffler range, which is renowned in the field of manufacturing bearings and related components. The MB 16 lock washer is ideal for applications where a high level of security and reliability of connections is required.
