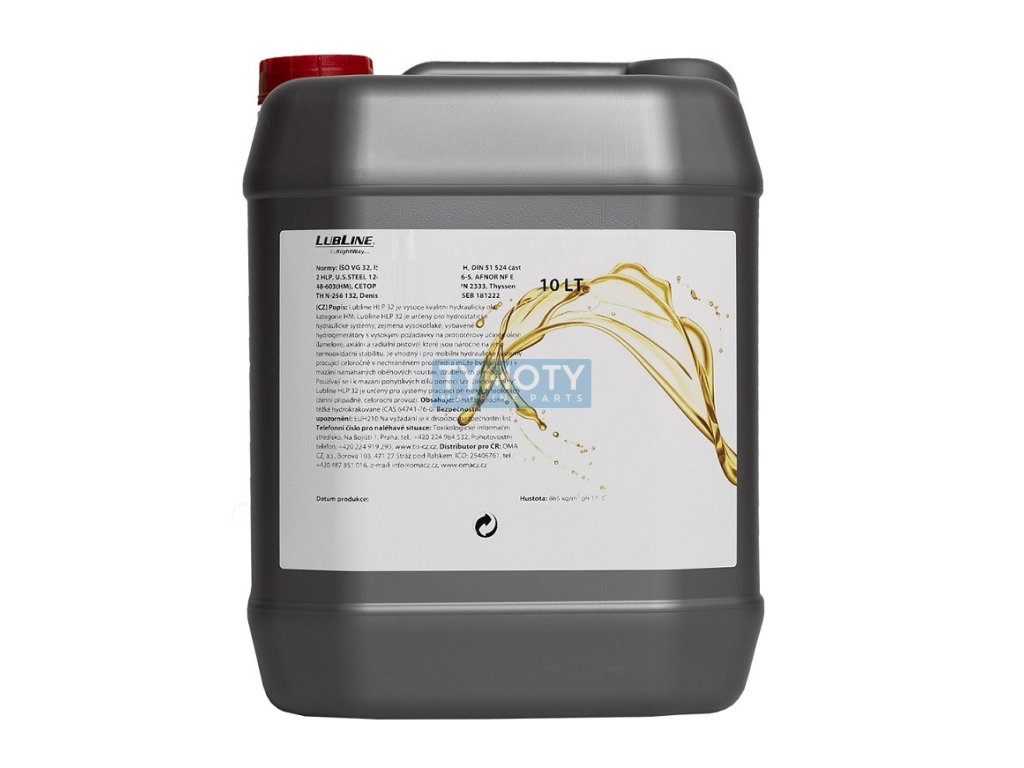

Lubline HLP 46 - 10 L hydraulic oil ( Mogul HM 46 )

Product detailed description

Lubline HLP 22, 32, 46, 68, 100 - High-quality hydraulic oils for hydrostatic mechanisms The products of the Lubline HLP group are specially designed for use in hydrostatic hydraulic mechanisms, especially those operating under high pressure. These oils are ideal for systems equipped with hydrogenerators with high requirements for anti-wear effect and thermo-oxidative stability. They are also suitable for mobile hydraulics that operate year-round in an unprotected environment, and can be used to lubricate stressed circulation systems, gears and moving parts using "oil mist".

Advantages:

• Protects the grease from corrosion.
• Does not have an aggressive effect on sealing elements (elastomers).

Technical parameters:

• Technology: Hydraulic oils of category HM.
• Chemical type: Deeply refined base oils 12185):

- HLP 22: 862 kg/m? - HLP 32: 862 kg/m? - HLP 46: 865 kg/m? - HLP 68: 870 kg/m? - HLP 100: 886 kg/m?

• 3104):

- HLP 22: 21.8 mm?/s - HLP 32: 31.5 mm?/s - HLP 46: 47.2 mm?/s - HLP 68: 69.0 mm?/s - HLP 100: 99.6 mm?/s

- HLP 22: 200°C - HLP 32: 205°C - HLP 46: 235°C - HLP 68: 240°C - HLP 100: 265°C

• Pour point (ČSN EN ISO 3016): HLP 32: -21°C - HLP 46: -21°C - HLP 68: -18°C - HLP 100: -15°C

  Application:

  • Hydrostatic hydraulic mechanisms with high anti-friction requirements operating year-round in an unprotected environment.
  • Lubrication of stressed circulation systems and gear transmissions.
  • Lubrication of moving parts using "oil mist".

  Standards and certifications:

  • ISO 502 H
  • DIN 51 524 part 2 HLP
  • USSTEEL 126, 127
  • Sperry Vickers I286S
  • AFNOR NF E 48603(HMHV)
  • CETOP RP 9 2333
  • Thyssen TH N256 132
  • Denison Filterability TP 02100
  • SEB 181222

  Storage: Store in closed containers in ventilated areas at temperatures. The warehouse must be equipped with a first aid kit and a source of drinking water. Due to the risk of slipping, prevent spillage of the product.

  Technical data sheet or safety data sheet Lubline HLP 22, 32, 46, 68, 100 on request.
