Low crown nut DIN 937 M20x2.00

Product detailed description

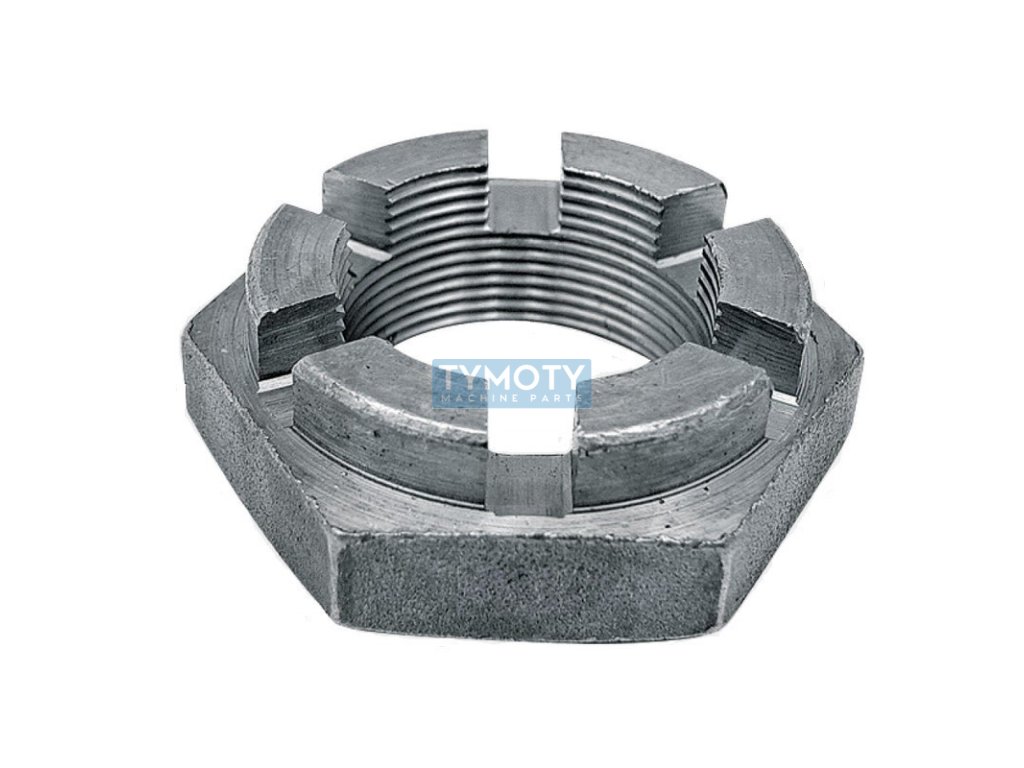

Low crown nut according to DIN 937, ČSN 021412 and ISO 7035 with metric fine thread M20x2.00 is intended for applications where it is necessary to ensure reliable securing of threaded connections. This nut has a hexagonal shape, which allows easy assembly and disassembly using standard tools.

Its construction includes a crown design that is specific for use with a cotter pin, which increases the safety of the connection against spontaneous loosening. Thanks to its low height of 13 mm, it is suitable for use in space-limited applications.

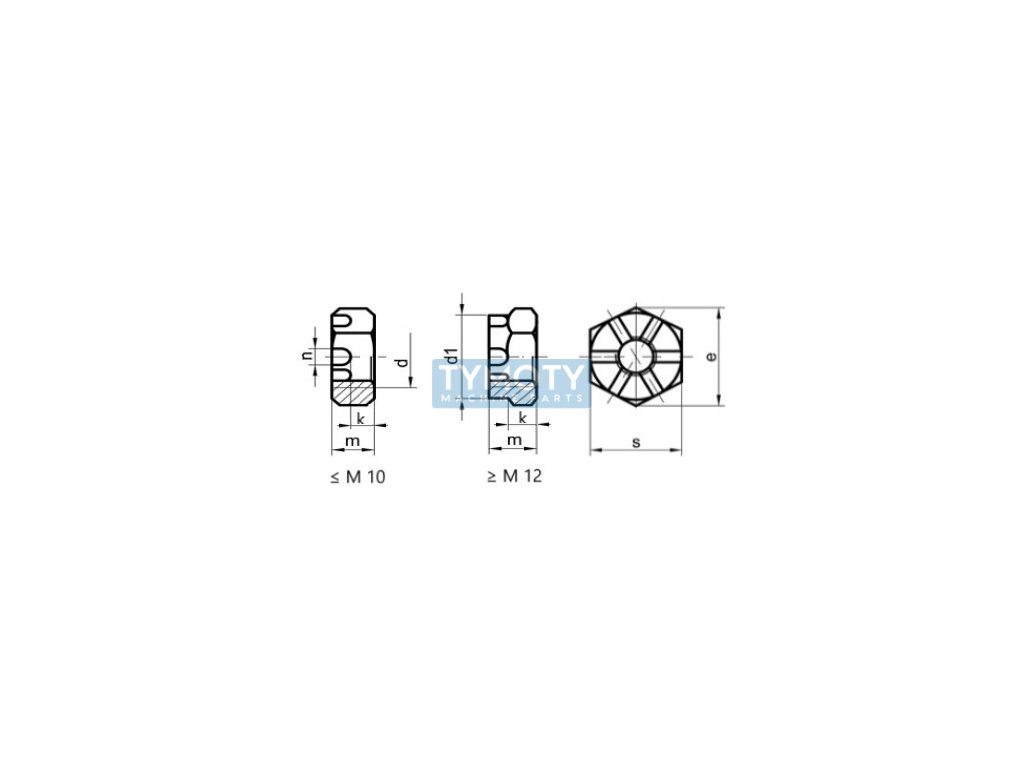

The nut has an outer diameter of 28 mm, a width between the surfaces of 30 mm and a width between the diagonals of 32.95 mm. The crown height is 8 mm and the groove for the cotter pin has a width of 4.5 mm.

It is made of steel with a strength class of 17H, which guarantees high mechanical resistance and reliability in demanding conditions. The surface of the nut is untreated, which must be taken into account when used in corrosive environments.

This nut is ideal for applications where reliable and safe locking of threaded connections is required, especially in the mechanical engineering and automotive industries.
