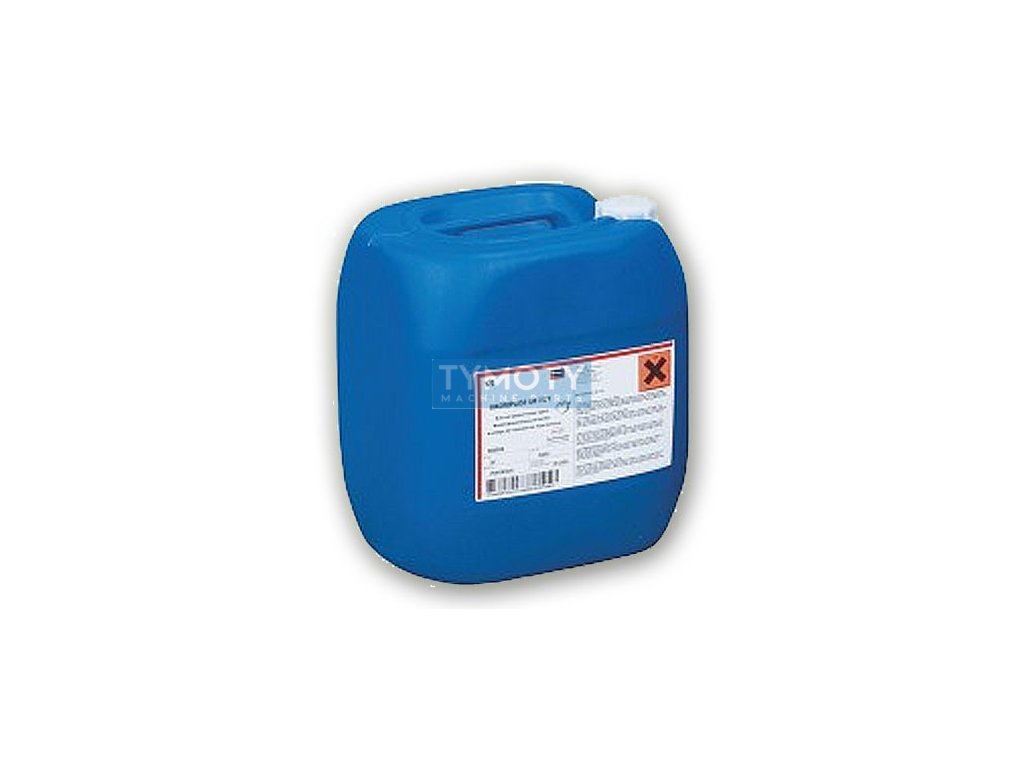

Loctite UK 8309 - 30 kg Macroplast polyurethane adhesive

Product detailed description

Loctite UK 8309 Part A (also known as Macroplast UK 8309, IDH 667250) is a two-component, solvent-free polyurethane adhesive. The resin part (Part A) contains organic compounds with hydroxyl groups and the hardener (Part B) is based on isocyanates. When the two components are mixed in a ratio of 5:1, a hard, elastic material is formed which shows no measurable change in volume after curing. This product is ideal for bonding metals, synthetic materials, wood and rigid foams, particularly in the automotive industry, in the production of truck bodies.

Advantages:

• Solvent-free two-component construction adhesive.
• High viscosity, pasty consistency.
• Hard, elastic bond without measurable volume changes after curing.
• Foam.

Technical parameters:

• Technology: Polyurethane
• Product type: PU adhesive
• Curing: Polyaddition
• Color: Component A - white, component B (by weight): 5:1
• Mixing ratio (by volume): 3.7:1
• Consistency:
  • Component A: pasty (specific gravity 1.6 to 1.7 g/cm?)
  • Component B: thin liquid0, viscosity. 20 °C)
  • Mixed product: pasty mixture
• Potency: 40 to 60 minutes at 23 °C (120 g mixture)
• Open time: 70 to 130 minutes at 23 °C
• >9 MPa according to EN 1465
• Temperature resistance: -40 °C to +80 °C
• Consumption: 200 to 500 g/m? depending on the substrate

Applications: Loctite UK 830 rigid foam. The main applications include the assembly of truck bodies, bonding of elements in the container manufacturing industry and other structural components. strength and without volume changes.

Use for application:

• The adhesive can be mixed manually or using an automatic two-component dosing system. Mix components A and B in a ratio of 5:1 and apply during the pot life. It is recommended to maintain sufficient pressure on the bonded parts throughout the curing period.

Instructions for use:

1. Prepare the surface by removing dust, grease and other contaminants. The use of a suitable primer can improve the adhesion and stability of the joint.
2. Mix components A and B in a ratio of 5:1 (by weight). Stir thoroughly to prevent air entrapment.
3. Apply the mixture to the surface during the pot life (40 to 60 minutes).
4. Ensure sufficient pressure on the bonded parts during curing.

Surface preparation: Use Loctite SF 7 cleaner to thoroughly degrease and remove dirt. If you are working with plastic materials, Loctite SF 7070 is the ideal choice, which will provide gentle but effective cleaning without damaging the surface.
