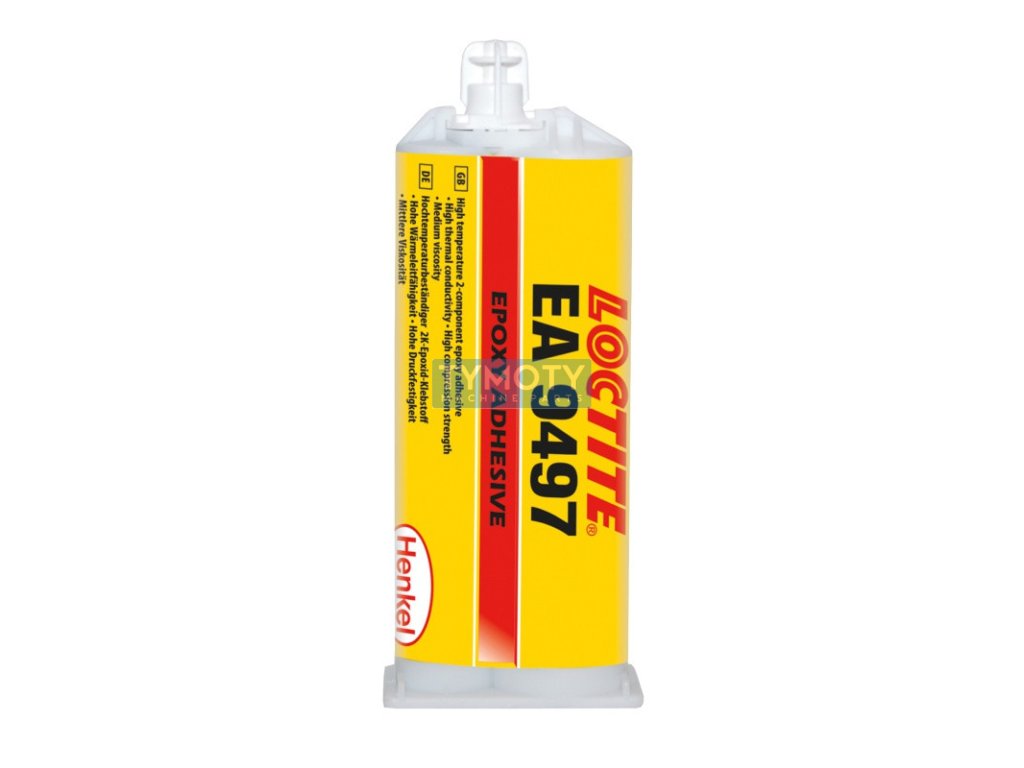

Loctite EA 9497 - 50 ml two-component thermally conductive epoxy

Product detailed description

Loctite EA 9497 (also known as Loctite 9497) - IDH 1034745

Contents: 50 ml twin cartridge

Catalog number: 42317 / IDH: 103

Loctite 9497 is a two-component, medium viscosity epoxy adhesive that cures at room temperature and bonds a wide range of materials. It is therefore suitable as a general purpose adhesive. Hysol Loctite 9497 is ideal for applications where heat dissipation is required, such as bonding metal sheets for high temperature heat exchangers or potting electrical components. It is suitable for applications with high compressive stress as well as for applications requiring a high glass transition temperature Tg together with the requirement to maintain high strength at elevated temperatures. #000000;">Applied with application gun No. 96001 or with adapter for 50 ml double cartridges 2:1

Physical properties:

• Thermal conductivity coefficient: 1.4 Wli 52.6 N/mm2
• Compressive strength: 112.5 N/mm2
• Shore hardness: 83
• Fixation time at 22 °C: 8 hours

Very good for bonding

Loctite 9497 has the following properties:

• Technology: Epoxy
• Appearance (Resin): White liquid
• Appearance (Hardener): Grey liquid
• Components: Two-component
• Mixing ratio by volume: resin: hardener 2: 1
• Mixing ratio by weight:
• Curing: At room temperature
• Application: Bonding

Instructions for use:

1. For best bonding results, the surfaces to be bonded should be clean, dry and degreased.
2. Before use, it is necessary to mix the components in the volume or weight ratio as indicated in the Product Description section. When mixing by hand, measure the required amount of resin and hardener and mix together thoroughly. Mix for about 15 seconds after the product has achieved a uniform color.
3. Do not mix more than 4 kg of product at a time, otherwise undesirable heat will develop.
4. After mixing, apply the product as quickly as possible to one of the surfaces to be bonded. To obtain maximum bond strength, spread the product evenly over both surfaces. The components should be joined immediately after application of the mixed adhesive.
5. The pot life of the mixed adhesive is 3 to 4 hours at 22°C. Higher temperatures and smaller quantities of product will shorten the pot life.
6. Prevent possible movement of the assembled components during the curing of the product. The bonded joint should be left undisturbed until it has gained full strength before the components are put into service.
7. Uncured product overflow can be wiped up with organic solvents.
8. After use, before the adhesive hardens, clean mixing and application equipment with hot.

   981209 - IDH-1034745

   LOCTITE 9497 (new designation Loctite EA 9497 ) is a two-component, medium viscosity epoxy adhesive that cures at room temperature and bonds a wide range of materials. It is therefore suitable as a general purpose adhesive. LOCTITE 9497 is ideal for applications where heat dissipation is required, such as bonding metal sheets for high temperature heat exchangers or potting electrical components. It is suitable for applications with high compressive stress as well as for applications requiring a high glass transition temperature Tg together with the requirement to maintain high strength at higher temperatures.

   For professional application, we recommend purchasing the following accessories: 50 ml

   • Mechanical applicator gun Loctite 97042
   • Loctite 984569

   For 400 ml

   Loctite 983438 or pneumatic Loctite 983439 application gun
   • Replacement mixing mixers Loctite 984570

   Documents for download:

   Technical data sheet Loctite 9497
9. component B

Package sizes:

• ml package.
Physical properties:

• Thermal conductivity coefficient: 1.4 W/(mK)
• Tensile strength: 52.6 N/mm2
• Compressive strength: 112 83
• Fixation time at 22 °C: 8 hours
Very good for bonding - (Shear strength):

• Low carbon steel: 20 N/mm2
Stainless steel: -15 N/mm2
• Brass: 5 N/mm2
• Copper: 5 N/mm2
• Chromate zinc: 5 N/mm2
• ABS: 6 N/mm2
• Polycarbonate: 4 N/mm2
• Glass fiber reinforced epoxy: 8 N/mm2
• Hardwood: 8 - 12 N/mm2
Loctite 9497 has the following properties:

• Chemical Type: Epoxy
• Appearance (Hardener): Grey liquid
• Mixing ratio by volume: resin:hardener 2:1
• Mixing ratio by weight: resin:hardener 100:50
• Curing: At room temperature after mixing
