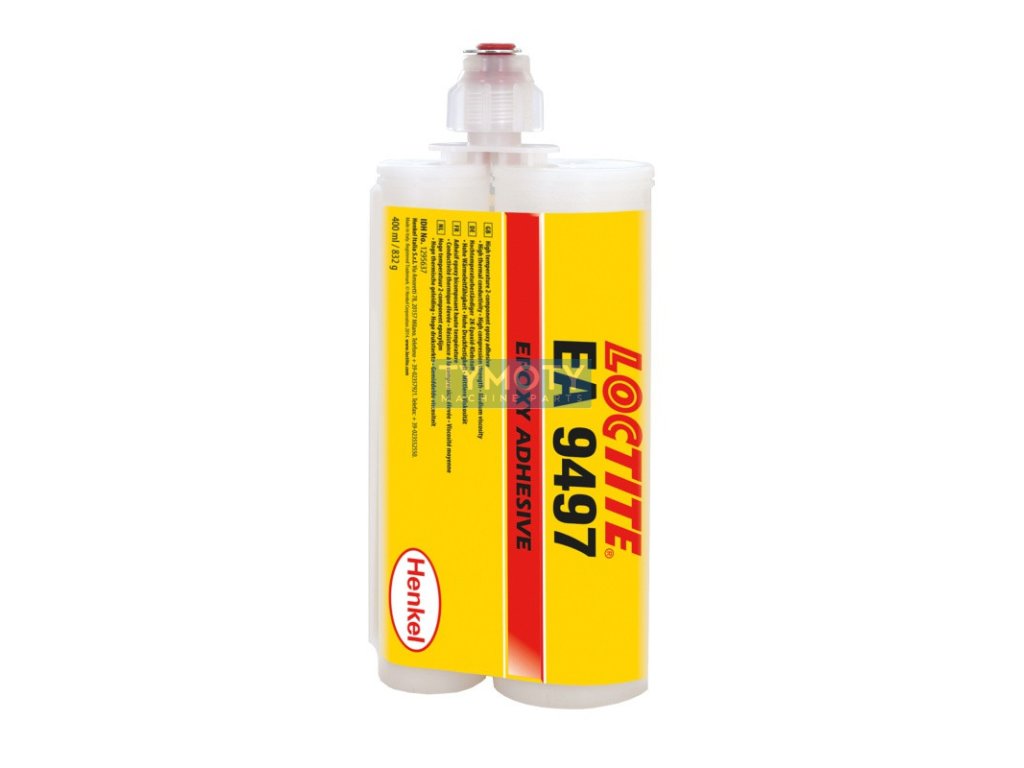

Loctite EA 9497 - 400 ml two-component thermally conductive epoxy

Product detailed description

Loctite 9497 is an excellent thermally conductive two-component epoxy adhesive of medium viscosity, which is intended for general industrial applications. This epoxy bonds a wide range of materials and is therefore suitable for multi-purpose bonding. Hysol Loctite 9497 is ideal for applications where heat dissipation is required, such as bonding metal sheets for high-temperature heat exchangers or for potting electrical components. It is suitable for applications with high compressive stress and for applications requiring a high glass transition temperature Tg together with the requirement to maintain high strength at higher temperatures. Cheap shipping and fast delivery also to Slovakia by the next day! Buy high-temperature and thermally conductive adhesives advantageously from the largest distributor of Loctite products in the Slovak Republic - !Technical information: ·Applied with application gun no. 96001 or using the adapter for 50 ml dual cartridges 2:1 · Suitable for high temperatures Physical properties: · Thermal conductivity coefficient: 1.4 W / (mK) · Tensile strength: 52.6 N/mm2 · Compressive strength: 112.5 N/mm2 · 22 °C: 8 hours Very good for bonding (shear strength): · Mild steel - 20 N/mm2 · Stainless steel - 9 N/mm2 · Aluminum: 7 -15 N/mm2 · Brass: 5 N/mm2 · Copper: 5 N/mm2 · Chromated N/mm2 · Polycarbonate - 4 N/mm2 · Polymethyl methacrylate - 1 N/mm2 · Glass fiber reinforced epoxy - 8 N/mm2 · Hardwood: 8 - 12 N/mm2Loctite 9497 has the following properties: Technology: epoxy Chemical liquid Appearance (hardener): gray liquid Ingredients: two-component Mixing ratio by volume: resin: hardener 2: 1 Mixing ratio by weight: resin: hardener 100: 50 Curing: at room temperature Application: bonding Instructions for assembly, disassembly. Safety data sheet Loctite 9497 on request. Not sure about the product selection? We will be happy to advise you, contact us!
