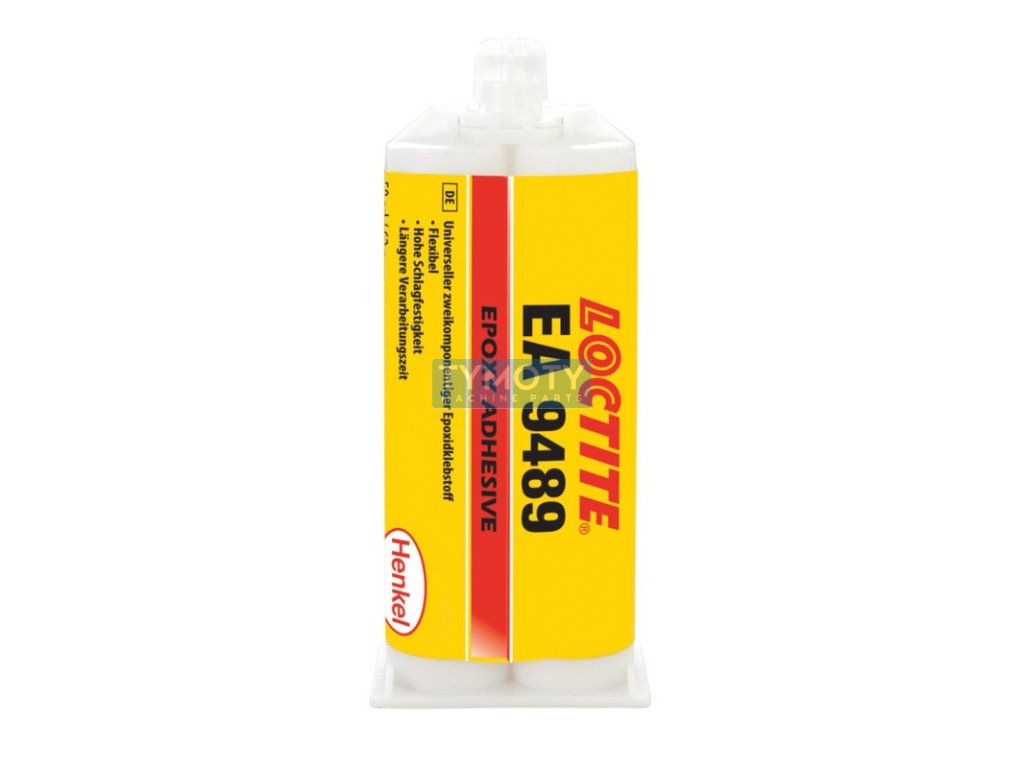

Loctite EA 9489 - 50 ml two-component epoxy resistant to temperature and shock

Product detailed description

Loctite EA 9489 (also known as Loctite 9489) - IDH 451183

Contents: 50 ml twin cartridge

Catalog number: 36587 / IDH: 451183 is a two-component, medium viscosity, tough epoxy adhesive with extended pot life, intended for industrial applications. After mixing the components, Hysol 9489 cures at room temperature to a gray flexible mass. It can also be used for strain gauge repairs, seam sealing on fiber optic components, for printed circuit board repairs, bonding stainless steel inserts and for bonding rubber hoses to steel pipes. The extended pot life of this product allows for bonding large areas and provides ample time for precise positioning of components during bonding.

Especially suitable:

• For filling joints up to 3.0 mm
• For bonding ceramics, glass, metals, plastics, plastics and plastics
• High elongation and impact resistance

This product:

• Applied with the Loctite 96001 applicator gun or with the Loctite 97956 adapter Loctite 984569
• Supplied in a pack: 50 ml and also available on request 400 ml and 2x1kg

Physical properties:

Viscosity 45 Pa.s

Thermal conductivity coefficient 0.5 W/(m·K)

Shore hardness 60 D

Elongation 91%

2

Very good for bonding - (Shear strength):

• Low carbon steel 10 N/mm2
• Aluminum 4 - 11 N/mm2
• Stainless steel 10 N/mm2
/li
• Nylon 2.4 N/mm2
• Epoxy glass 6 N/mm2
• Wood 8 N/mm2

Loctite 9489 has the following properties:

• Technology: Epoxy
• Two components - resin and hardener
• Mixing ratio by volume resin: hardener 1: 1
• Mixing ratio by weight resin: hardener 100: 85
• Curing After mixing at room temperature
• Application for use:
  1. For best bonding results, the surfaces to be bonded should be clean, dry and degreased.
  2. The resin and hardener must be mixed thoroughly before use. The product can be applied directly from the twin cartridges via the supplied static mixer. In this case, squeeze the first 3 to 5 cm into the waste. When using a larger package of the product, mix both components thoroughly in the exact ratio by volume or weight. When mixing by hand, weigh or measure the required amount of resin and hardener and mix them vigorously. Mix for about 15 seconds after you have obtained a uniform color of the product.
  3. We recommend not mixing more than 4 kg of product at a time due to the generation of unwanted heat and overheating during the reaction of both components.
  4. After mixing, apply the product as quickly as possible to one of the surfaces to be bonded. To obtain maximum bond strength, spread the product evenly over both surfaces. The parts should be bonded immediately after applying the mixed adhesive.
  5. For information on the pot life, see the section Typical Properties of Uncured Material. Higher temperatures and smaller amounts of product will shorten the pot life.
  6. Prevent possible movement of assembled parts while the product is curing. The bonded joint should be left undisturbed until it has gained full strength before the parts are put into service.
  7. Uncured product overflow can be wiped up with organic solvents.
  8. After use, before the adhesive hardens, clean mixing and application equipment with hot water.

     981201 - IDH-451183

     Loctite 9489 (new name Loctite 96001 or application Loctite 97042

  9. Replacement mixing mixers Loctite 984569

Documents for download:

• Technical data sheet Loctite 9489
• component B

Primarily suitable for:

• bonding ceramics, glass, metals, plastics, rubber, wood and building materials
• High elongation and impact resistance

Physical properties:

• Temperature resistance: -55°C to 100li.
• Thermal conductivity coefficient 0.5 W/(m·K)
• Shore hardness 60 D
• Elongation 91%
• Tensile strength 14 N/mm2

Very good for bonding

• Low carbon steel 10 N/mm2
• Aluminum 4 - 11 N/mm2
• Stainless steel 10 N/mm2
• Polycarbonate 3.8 N/mm2
• Nylon 2.4 N/mm2
• Wood 8 N/mm2

Loctite 9489 has the following properties:

• Technology: Epoxy
• Appearance: Grey liquid
• Ingredients: Two components - resin and hardener
1: 1
• Mixing ratio by weight resin: hardener 100: 85
• Curing: After mixing at room temperature
• Application: Bonding

You can find this product in the following categories Structural Adhesives > Epoxy Adhesives

Assembly, Disassembly Instructions

Product Identification - Henkel - Loctite 9489 - IDH: 451183

LOCTITE® EA 9489 is a 2-component grey epoxy adhesive that has an extended open time of 0 min. for correct positioning of parts during assembly. This tough product can also be used for strain gauge repair, seam sealing on fiberglass components, PCB repair, stainless steel insert bonding and rubber hose to steel tube bonding. workability. Tough, versatile product. LOCTITE® EA 9489 is a 2-component grey epoxy adhesive that has an extended pot life of 60 - 120 min., allowing more time for correct positioning of parts during assembly. This tough product can also be used for strain gauge repair, seam sealing on fiberglass components, PCB repair, stainless steel insert bonding and rubber hose to steel tube bonding.
