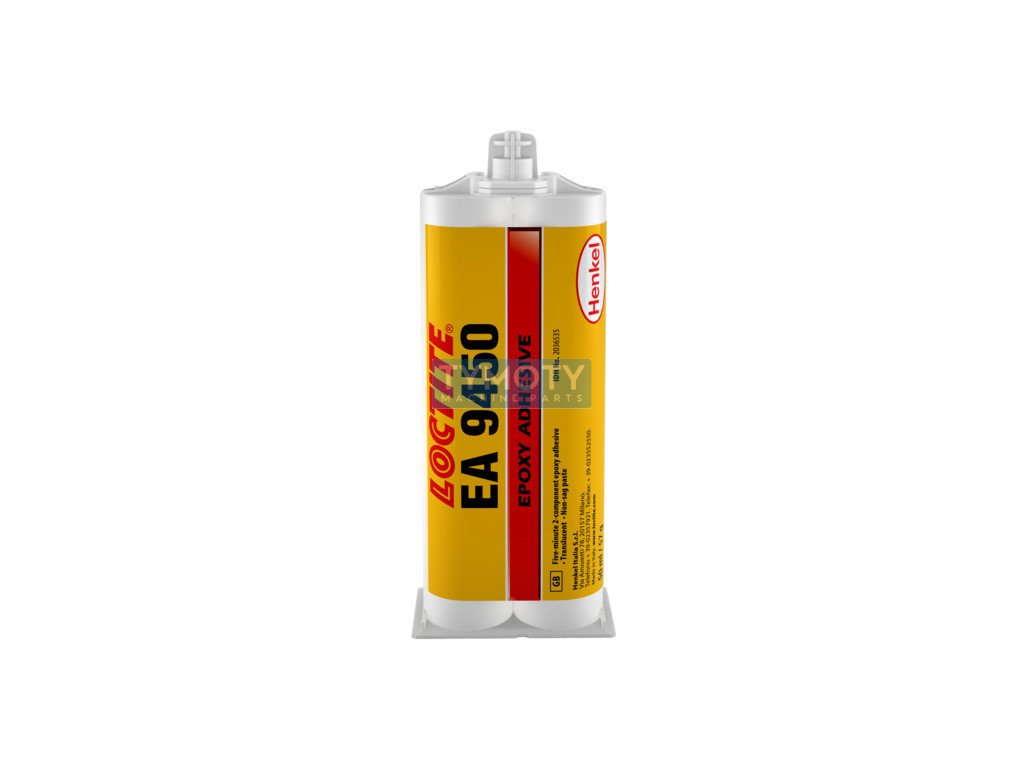

Loctite EA 9450 - 50 ml two-component epoxy fast clear

Product detailed description

Loctite EA 9450 (also known as Loctite 9450) - IDH 451262 is a fast-curing two-component epoxy adhesive suitable for a wide range of materials such as plastics. EA 9450 is intended for bonding components, household appliances, electronics and optical fibers and repairs in general industry. The non-sag property of this product makes it particularly suitable for use on vertical surfaces where it prevents the product from running off the bonding area. Especially suitable for filling joints and vertical applications (non-flowing paste until it hardens), for bonding steel and stainless steel, aluminum, copper, brass.

For professional application, we recommend purchasing the following accessories: 50 ml

• Apply using a cartridge adapter - Loctite 97956 mechanical Loctite 96001
• Or applicator Loctite 97042
• Replacement mixing mixers Loctite 984569 (one piece is included with the adhesive)
• Before applying, clean the part with Loctite SF 7063 super cleaner

Instructions for assembly, disassembly and cleaning can be found in the product data sheet. Together with the safety data sheet, you will find it on the files tab.

This product:

• Temperature resistance: -55 °C to 80 °C
• Handling strength: in 13 min
• Possibility period of the mixed product
: 22°C 36 hours
• Fast curing and clean joint line
• Low elasticity
• Application: Bonding
• Strength: High

Physical properties:

N/mm2
• Shear strength: 23 N/mm2
• Tensile modulus: 1025 N/mm2
• Shore hardness: 70
• Elongation: 40%
• Peel resistance: 0 or less Pa.s

Very good for bonding - (shear strength):

• Low carbon steel: 23 N/mm2
• Stainless steel: 14 N/mm2
Aluminum: 9 N/mm2
• Nylon: 1.0 N/mm2
• Wood: 10 N/mm2

Loctite EA 9450 has the following properties:

• Technology: Epoxy
• Appearance resin: hardener 1: 1
• Mixing ratio by weight resin: hardener 100: 92
• Curing: After mixing at room temperature temperature

Instructions for use:

1. For best degreasing.
2. The resin and hardener must be mixed thoroughly before use. The product can be applied directly from the double cartridges through the supplied static mixer. In this case, squeeze the first 3 to 5 cm into the waste. When using a larger package of the product, mix both components thoroughly in the exact ratio by volume or weight, as stated in the Product Description. When mixing by hand, weigh or measure the required amount of resin and hardener and mix them thoroughly. Mix for about 15 seconds after you obtain a uniform color of the product.
3. We recommend not mixing more than 20 g of product at a time due to the formation of unwanted heat and overheating during the reaction of both components. Mixing a smaller amount will prevent unwanted heating of the product.
4. After mixing, apply the product as quickly as possible to one of the surfaces to be bonded. For maximum bond strength, spread the product evenly over both surfaces. The parts should be bonded immediately after application of the mixed adhesive.
5. For information on pot life, see section - Typical Properties of Uncured Material. Higher temperatures and smaller amounts of product processed will shorten the pot life.
6. Prevent possible movement of the assembled parts while the product is curing. The bonded joint should be left undisturbed until it has gained full strength before the parts are put into service.

   Loctite 9450 (new label For professional application, we recommend purchasing the following accessories: 50 ml

   • Mechanical application gun Loctite 97042
   • Loctite 984569

   Documents for download:

   • Technical data sheet Loctite 9450
   • component B
   This product:


   • Handling strength: in 13 min
   • Pot life of the mixed mixture: 4 min
   • Full cure at 22°C 36 hours
   • Fast curing and clean bond line
   • Low elasticity
   • If High

   Physical properties:


   • Tensile strength: 17 N/mm2
   • Shear strength: 23 N/mm2
   • Tensile modulus: 1025 N/mm2
   • Elongation: 40%
   • Peel resistance: less than 1 N/mm
   • Viscosity 200 Pa.s

   Very good for bonding - (Shear strength):


   • Stainless steel: 14 N/mm2
   • Aluminum: 9 N/mm2
   • Polycarbonate: 2.5 N/mm2
   • Nylon: 1.0 N/mm2
   • Wood: 10 N/mm2

   • Technology: Epoxy
   • Appearance: Translucent paste
   • Mixing ratio by volume resin: hardener 1: 1
   • Mixing ratio by weight resin: hardener 100: 92
   • Curing:
     You can find this product in the following categories Structural Adhesives > Epoxy Adhesives

   For assembly, disassembly and cleaning instructions, please refer to the product data sheet.

   Product identification - Henkel - Loctite 9

   You want deliver goods to Slovakia? View 5 two-component epoxy fast, clear.





   LOCTITE® EA 9450 is a 2-component, non-sag, translucent, universal epoxy structural adhesive for general bonding. It cures quickly at room temperature and is suitable for a wide range of materials such as metals, ceramics, glass and most plastics. Because it does not sag, it is ideal for filling joints and bonding vertical surfaces. It provides a clear bonded joint and is slightly flexible after curing.



   LOCTITE EA 9450
   2-component, universal epoxy structural adhesive with fast curing and low flow. Suitable for filling joints and vertical applications because it does not sag.
   LOCTITE® EA 9450 is a 2-component, non-sag, translucent, universal epoxy structural adhesive for general bonding. It cures quickly at room temperature and is suitable for a wide range of materials such as metals, ceramics, glass and most plastics. Its non-sag properties make it ideal for filling joints and bonding vertical surfaces. It provides a clear bonded joint and is slightly flexible once cured.
