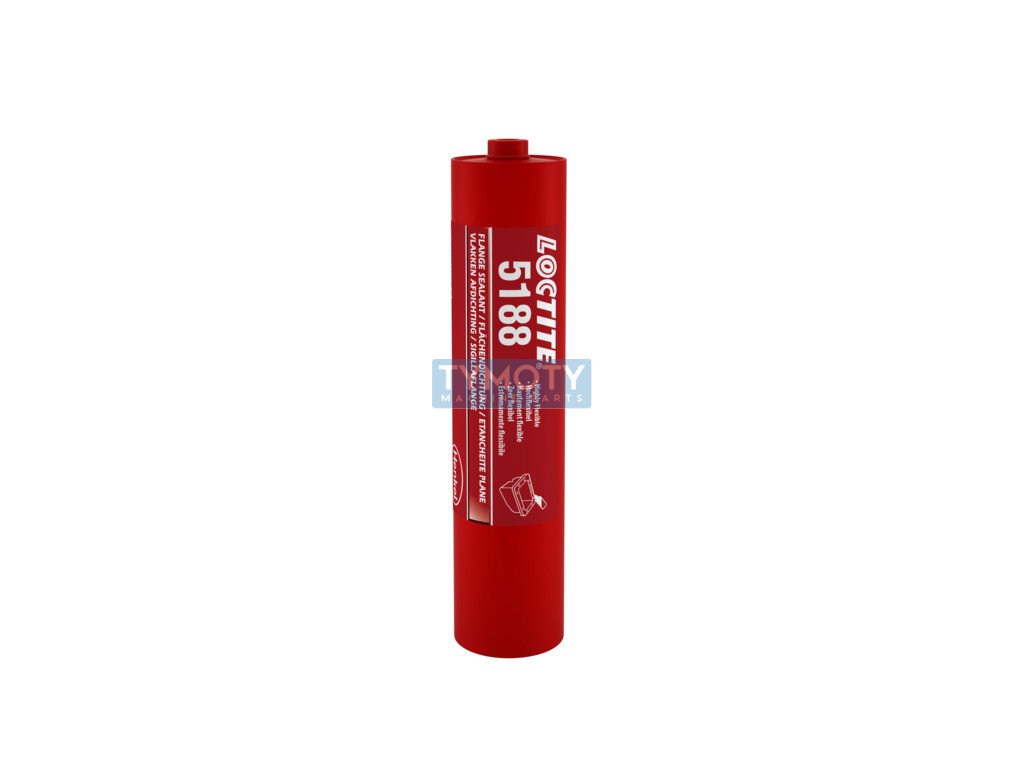

Loctite 5188 - 300 ml flat seal
Code: 981251
Related products
Product detailed description
Loctite 5188 (IDH 1104312) – Highly flexible gasketing compound is an anaerobic sealant developed for gasketing rigid metal flanges. This product cures in the absence of air in a thin gap between metal surfaces to form a flexible and durable seal that resists vibration, low pressure and chemical attack. It is ideal for applications where light oil contamination may occur and provides an immediate low-pressure seal after assembly. Loctite 5188 is particularly suitable for use on aluminum surfaces, where it achieves excellent adhesion. Loctite 5188 - 300 ml
Benefits:
- Resists low pressure immediately after application and assembly. exposed to vibrations and micro-movements.
- Excellent resistance to oils, glycols and other automotive fluids.
- Prevents leakage of liquids and gases, replaces traditional solid seals.
- Easy to apply manually or with an automatic dispensing system.
- Technology: Anaerobic
- Chemical type: Dimethacrylate ester
- Appearance: Red gel
- Fluorescence: Positive under UV light
- Viscosity: 11,000 - 32,000 mPas mm
- Handling strength:
- On steel: 25 minutes
- On aluminum: 10 minutes
- Shear strength (ISO 4587):
- Steel: 7 N/mm? Hli
- Temperature resistance: -55 °C to +150 °C
- Density: 1.16 g/cm?
- Elongation at break: 180%
- Pressure resistance: Immediately after application, withstands low pressure, after curing up to 10 MPa temperature
Application:
Loctite 5188 is designed for sealing rigid metal flange joints such as gearboxes, engine covers, pumps and other industrial components. The product is ideal for the automotive and mechanical engineering industries where resistance to oils, glycols and low pressure is required. It is also suitable for use on aluminum surfaces, where it ensures excellent adhesion even on slightly dirty surfaces.
Use when applying:
-
Surface preparation: Loctite SF 7063 . If you prefer more environmentally friendly products, the ideal choice is Loctite SF 7061 , which ensures gentle but effective cleaning. hydrocarbons.
-
Removing sealant and adhesive residues: If you need to remove old sealant, adhesives or other materials from a bonded surface, the ideal choice is Loctite SF 7200 . Its application is simple - just apply and leave to act, which will easily peel off the material. Beware of painted and plastic parts.
-
Surface activation:When applying anaerobic sealant at temperatures below 5 °C, it is recommended to first treat the surface with Loctite SF 7240 or Loctite SF 7649. The activator accelerates curing on passive metals or at low application temperatures. Product: For precise and effective application of adhesives or sealants, we recommend using the Teroson Staku &p> Loctite 97002 manual application gun. These professional tools are designed for precise dosing and ensure optimal control when applying the material. Ergonomic shapes, easy handling. Suitable for working with various types of cartridges and packages.
-
Surface cleaning: To thoroughly remove old deposits and dirt, including oils, greases and other industrial dirt, use Loctite SF 7840 . This universal, water-based cleaner is biodegradable and is ideal for effectively cleaning a variety of surfaces without damaging the material.
-
Hand cleaning after work: After completing the application, use Loctite SF 7850 , which is suitable for effective hand cleaning. This biodegradable cleaner removes oils, greases and other dirt. Choose the right LOCTITE gasket for your application.
