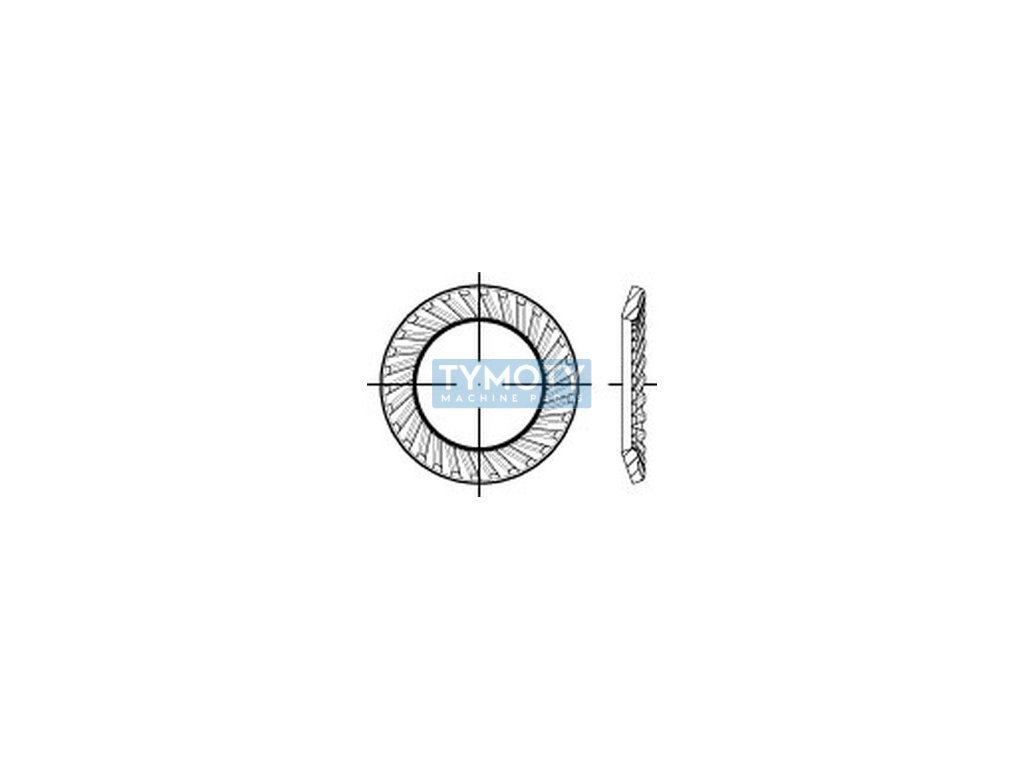

Lock washer SCHNORR type VS M18 / 19.0 galvanized

Product detailed description

The SCHNORR lock washer type VS M18 / 19.0 is specially designed for applications where it is necessary to ensure a reliable and permanent connection of bolted joints. This washer is made of spring steel, which is known for its high strength and resistance to mechanical stress. The surface treatment is carried out by mechanical zinc plating, which increases corrosion resistance and extends the service life of the component in difficult operating conditions.

The washer has an outer diameter of 27 mm and a thickness of 2 mm, and is designed for bolts with a diameter of M18. It is equipped with double-sided teeth that increase the friction between the washer and the contact surfaces, effectively preventing the bolt from loosening due to vibrations or dynamic loads. This type of washer is compatible with bolts of strength class 8.8 and 10.9, making it suitable for a wide range of industrial applications.

The SCHNORR lock washer type VS is often used in the automotive industry, mechanical engineering and other industries where the reliability and safety of connections are critical. It is part of the category of self-locking elements that are designed to minimize the risk of connection failure due to loosening. In this way, it contributes to increasing the safety and efficiency of the overall system.
