KINEX NU 208 roller bearing
Code: 330680
Product detailed description

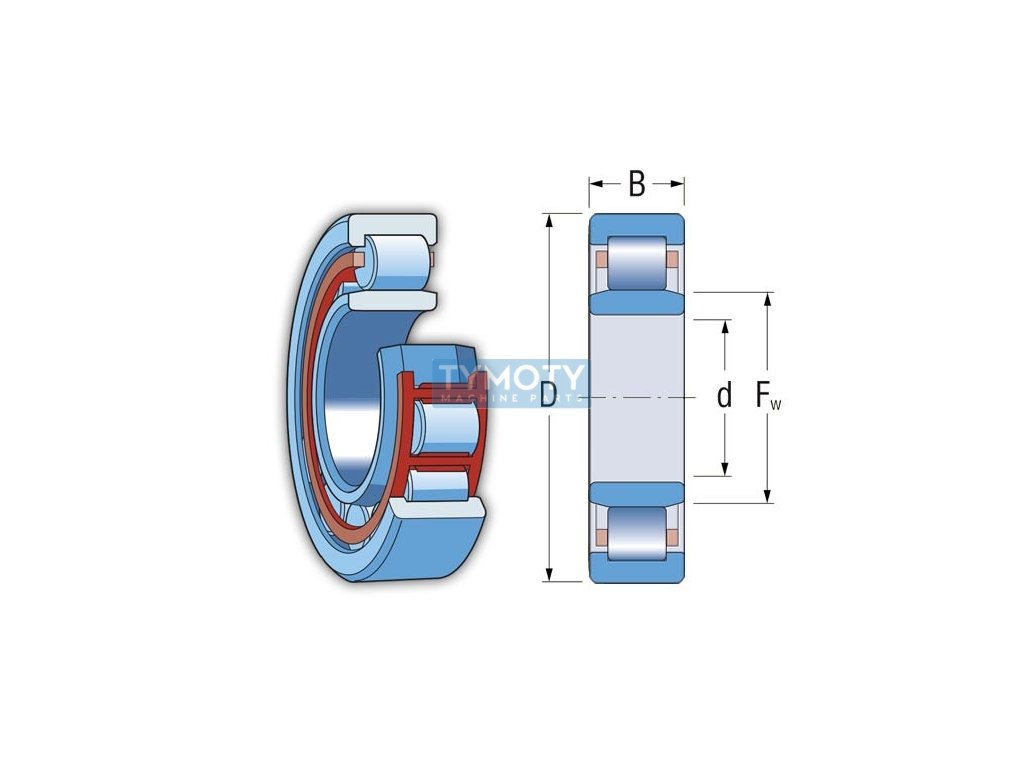

KINEX NU 208 - single-row separable radial roller bearing with a pressed window cage guided by rollers and with normal radial internal clearance.The outer ring of the bearing has two guide flanges and the inner one is without flanges, which allows axial displacement of the shaft relative to the bearing. The rollers are guided by flanges.
The bearing can be divided into an outer ring with a cage with rollers and an inner ring for easier assembly.
Additional parameters
| Category: | Bearings > roller > single row > Well 2.. > NU 208 |
|---|---|
| Weight: | 0.367 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 80, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | KINEX |
| Material: | steel |
| Width B (mm): | 18 |
| Značení: | NU 208 |
| Typ: | válečkové ložisko |
