KINEX 7315 B angular contact ball bearing
Code: 325551
Product detailed description

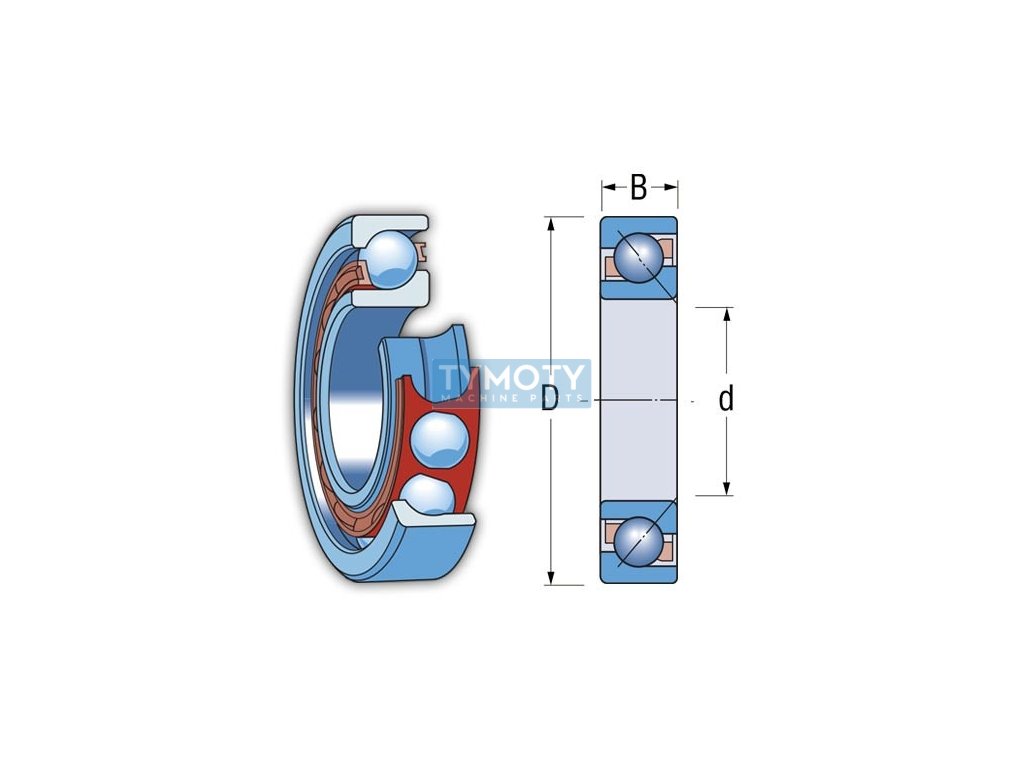

KINEX 7315 B - standard non-separable single row angular contact ball bearing, with a contact angle of 40° and a steel cage guided by balls. The bearing can only carry axial loads in one direction, therefore it is usually set against the other. The axial position of angular contact ball bearings is achieved only after assembly and depends on the setting of the axial position relative to the second bearing, which provides axial guidance in the opposite direction.Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 73.. standard > 7315 |
|---|---|
| Weight: | 3.2 kg |
| Cage: | steel |
| Diameter D (mm): | 75, 160 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | KINEX |
| Material: | steel |
| Width B (mm): | 37 |
| Značení: | 7315 B |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
