Keyes DIN 6885 A 8x5x60

Product detailed description

The DIN 6885 A 8x5x60 key is a precisely machined mechanical component designed for reliable torque transmission between the shaft and the hub. This type of key is manufactured according to the DIN 6885 A standard, which is equivalent to ISO 773 and ČSN 022562 standards, which guarantees its compatibility and standardization on an international scale.

The key is structurally made of C45K steel, which is known for its high strength and wear resistance. C45K steel is an unalloyed structural steel with a carbon content of approximately 0.45%, which provides it with an optimal combination of hardness and toughness. This material property is important for applications where high mechanical resistance and reliability of connections are required.

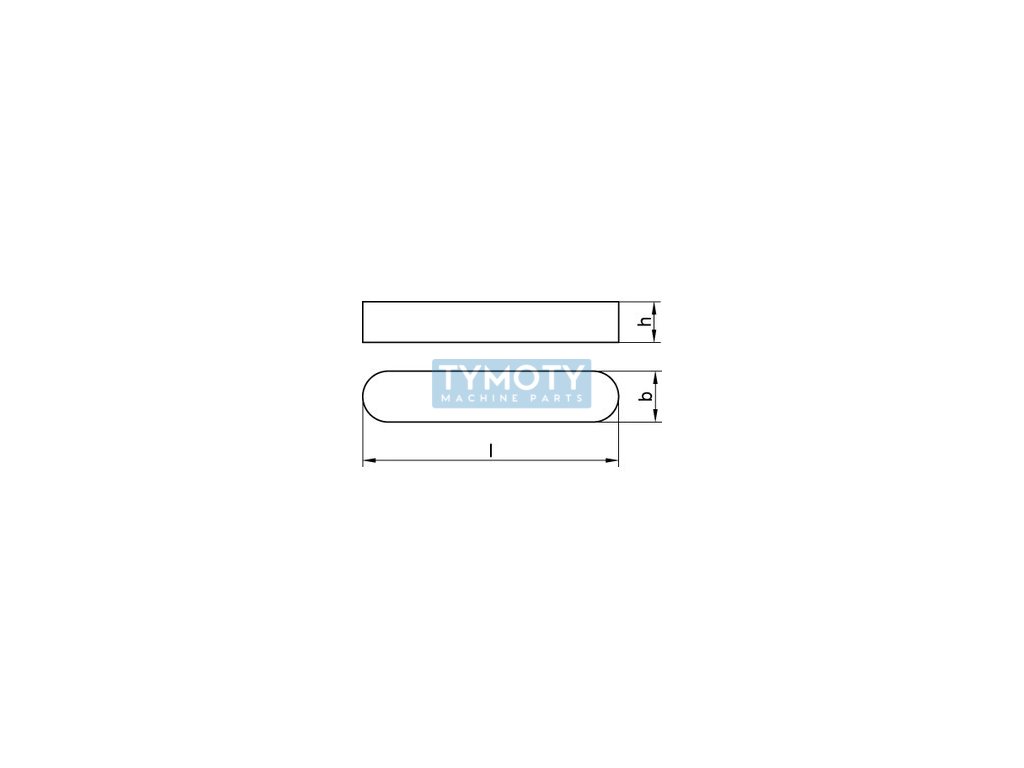

The dimensions of the key are 8 mm in width, 5 mm in height and 60 mm in length. These dimensions are precisely maintained to ensure an optimal fit in the grooves on the shaft and hub, minimizing the risk of free movement or wear in the joint. The rounded ends of the key allow for easier assembly and disassembly, which is an advantage during maintenance and component replacement in mechanical applications.

This tight key is ideal for use in various industries where precise and reliable torque transmission is required, such as machine building, automotive or equipment manufacturing. Its standardized dimensions and material properties guarantee a long service life and high reliability in operation.
