Keyes DIN 6885 A 18x11x80

Product detailed description

The key tight DIN 6885 A 18x11x80 is a precision engineering component designed for reliable torque transmission between the shaft and the hub. This component is manufactured according to the DIN 6885 A standard, which is equivalent to ISO 773 and ČSN 022562, which guarantees its compatibility and standardization on an international scale.

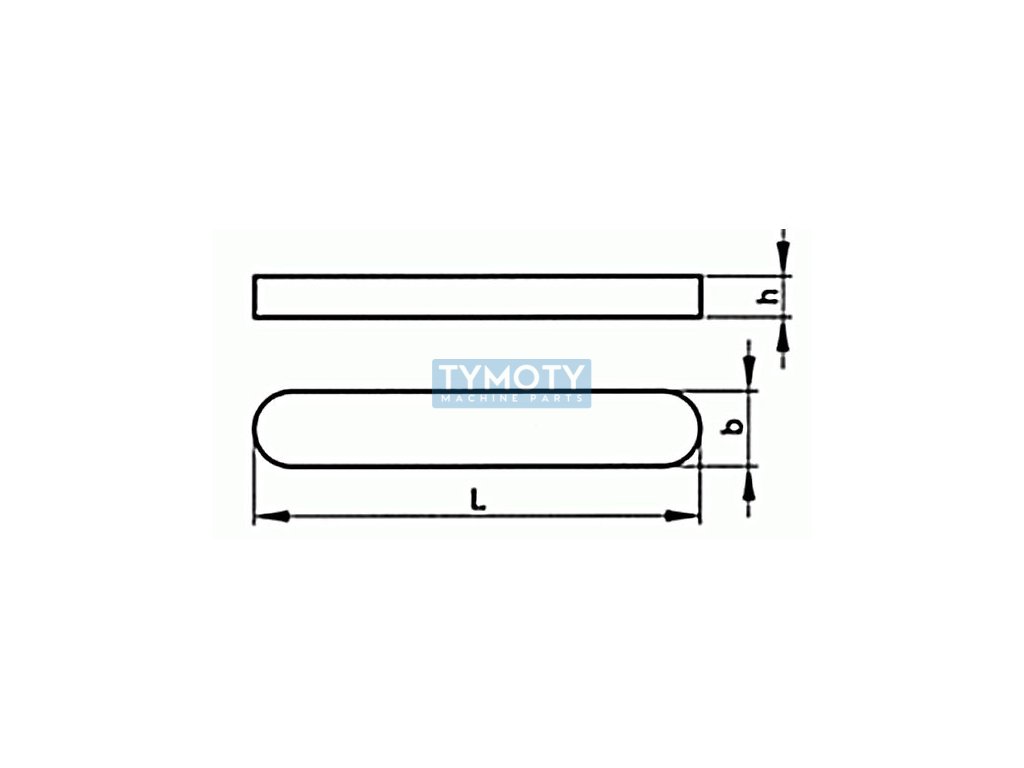

The dimensions of the key are 18 mm in width, 11 mm in height and 80 mm in length. The key has rounded ends, which is characteristic of form A according to the DIN 6885 standard. This shape allows for easier assembly and disassembly, while reducing the risk of damage to components during installation.

The material from which the key is made is C45K steel, which is an unalloyed medium carbon steel. This steel is known for its good strength and wear resistance, which is important for applications where reliable torque transmission is required. The C45+C surface treatment ensures increased corrosion resistance and improves the mechanical properties of the component.

The key is without holes, which means that it is intended for use in applications where additional fastening with screws or pins is not required. This type of key is commonly used in various industries such as mechanical engineering, automotive and equipment manufacturing, where a precise and reliable mechanical coupling is required.

Due to its design features and the materials used, the DIN 6885 A 18x11x80 key is an ideal solution for applications where high precision and reliability of torque transmission are required.
