Keyes DIN 6885 A 18x11x40

Product detailed description

The key tight DIN 6885 A 18x11x40 is a precision engineering component designed for reliable torque transmission between the shaft and the hub. This type of key is manufactured according to the DIN 6885 A standard, which is equivalent to the international standards ISO 773 and ČSN 022562. The key has hemispherical ends, which allows easier assembly and disassembly in applications where precision and reliability of the connection are required.

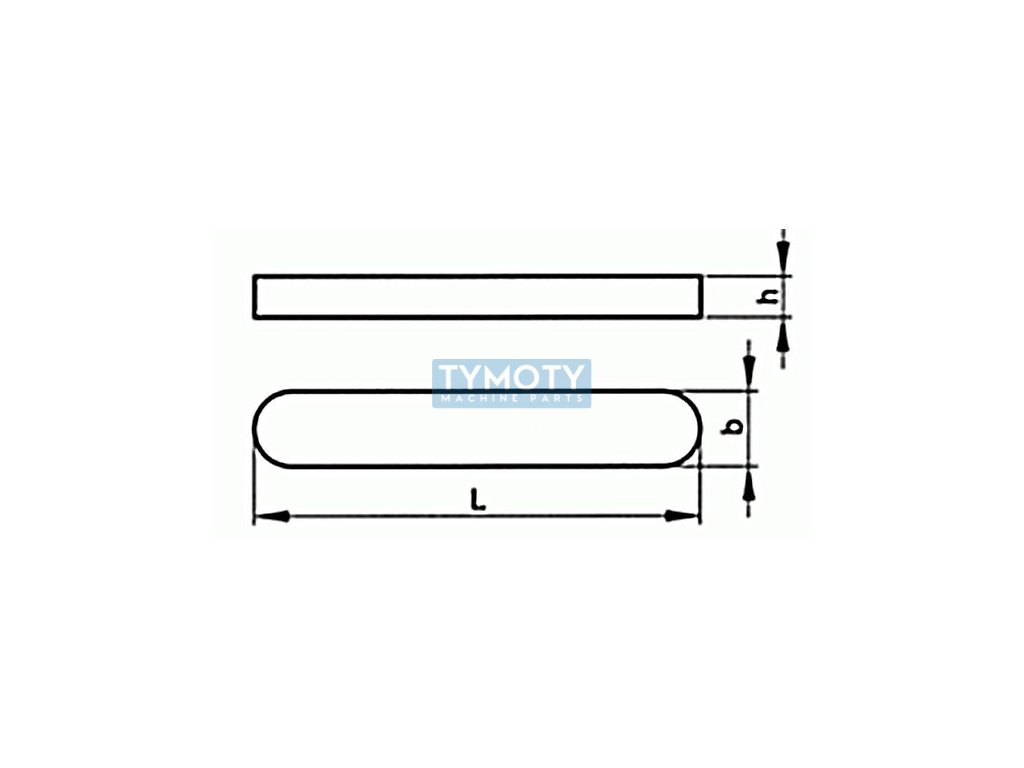

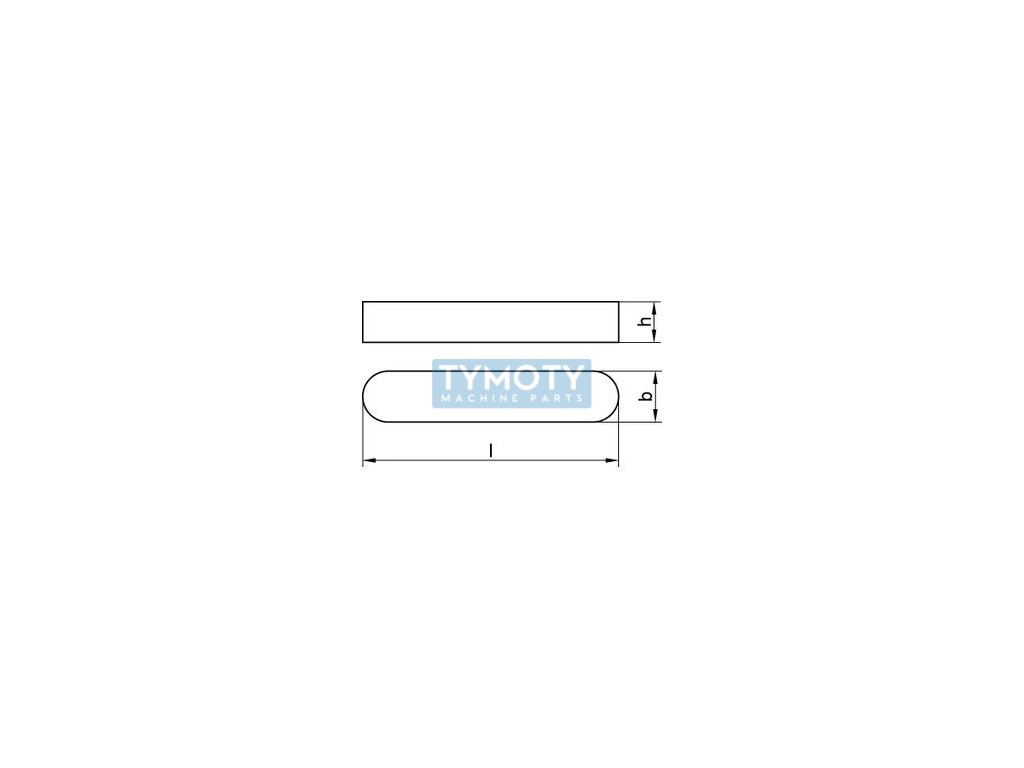

The dimensions of the key are 18 mm in width, 11 mm in height and 40 mm in length. The material is C45K steel, which is a medium carbon steel that provides a good combination of strength and toughness. This material is suitable for applications where high resistance to wear and mechanical stress is required.

The key is included in the group of parallel keys, which are commonly used in engineering for torque transmission. Its hole-free, high-form design makes it ideal for applications where high precision and reliability of the connection are required. This component is suitable for various industrial applications, including machinery and equipment manufacturing, where it is necessary to ensure a strong and precise connection between rotating parts.
