Keyes DIN 6885 A 16x10x80

Product detailed description

The DIN 6885 A 16x10x80 key is a precision engineering component designed for reliable torque transmission between the shaft and the hub. This type of key is manufactured according to the DIN 6885 A standard, which is equivalent to ISO 773 and ČSN 022562 standards. The key has rounded ends, which reduces stress concentration and increases its resistance to material fatigue.

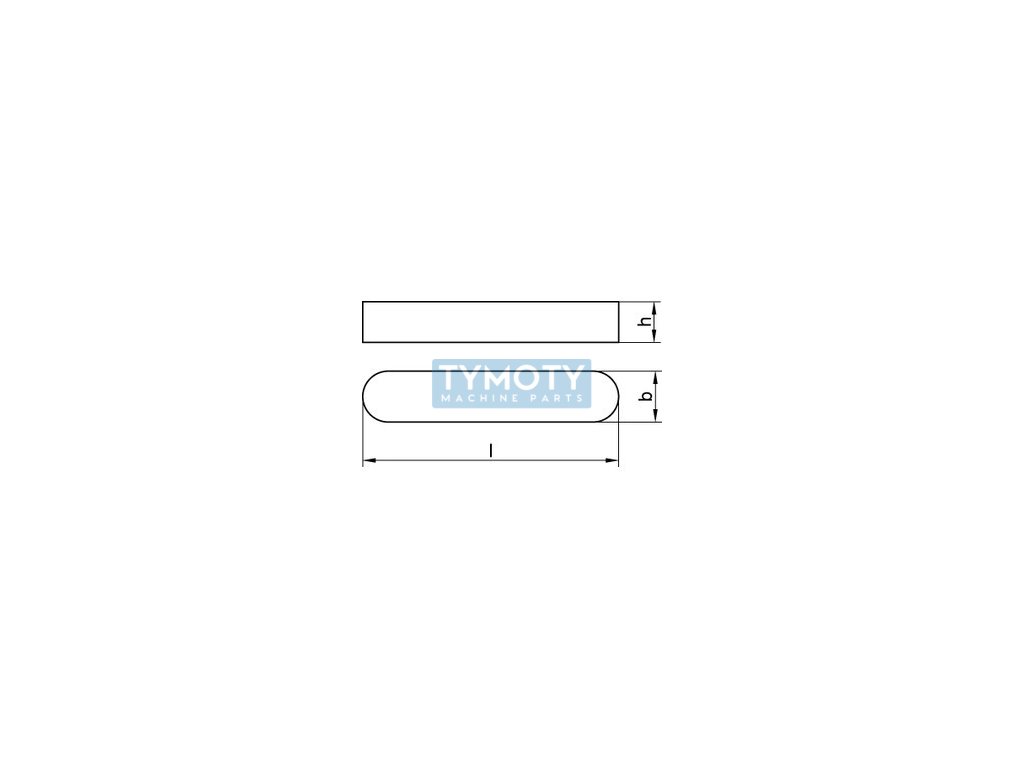

The dimensions of the key are 16 mm in width, 10 mm in height and 80 mm in length. The material from which the key is made is C45K steel, which is a medium carbon steel with good strength and toughness. This steel is often used in engineering for its excellent mechanical properties and ability to withstand dynamic loads.

The key is classified as a connecting material, specifically as a parallel key, which is used for a rigid connection of rotating parts, ensuring the transmission of torque without relative movement between the shaft and the hub. Its hole-free design and rounded ends contribute to easier assembly and disassembly, reducing the risk of shaft or hub damage during maintenance.

This component is suitable for applications where it is necessary to ensure a precise and reliable connection, such as gearboxes, clutches and other mechanisms where torque transmission is critical. Thanks to its robust design and quality material, it is ideal for use in industrial and engineering applications where high reliability and long service life are required.
