Keyes DIN 6885 A 16x10x45

Product detailed description

The key tight DIN 6885 A 16x10x45 is a structural component designed for reliable transmission of torque between the shaft and the hub. This type of key is manufactured according to the DIN 6885 A standard, which is equivalent to the international standards ISO 773 and ČSN 022562. The key has rounded ends, which allows for better stress distribution and reduces the risk of stress concentration on sharp edges.

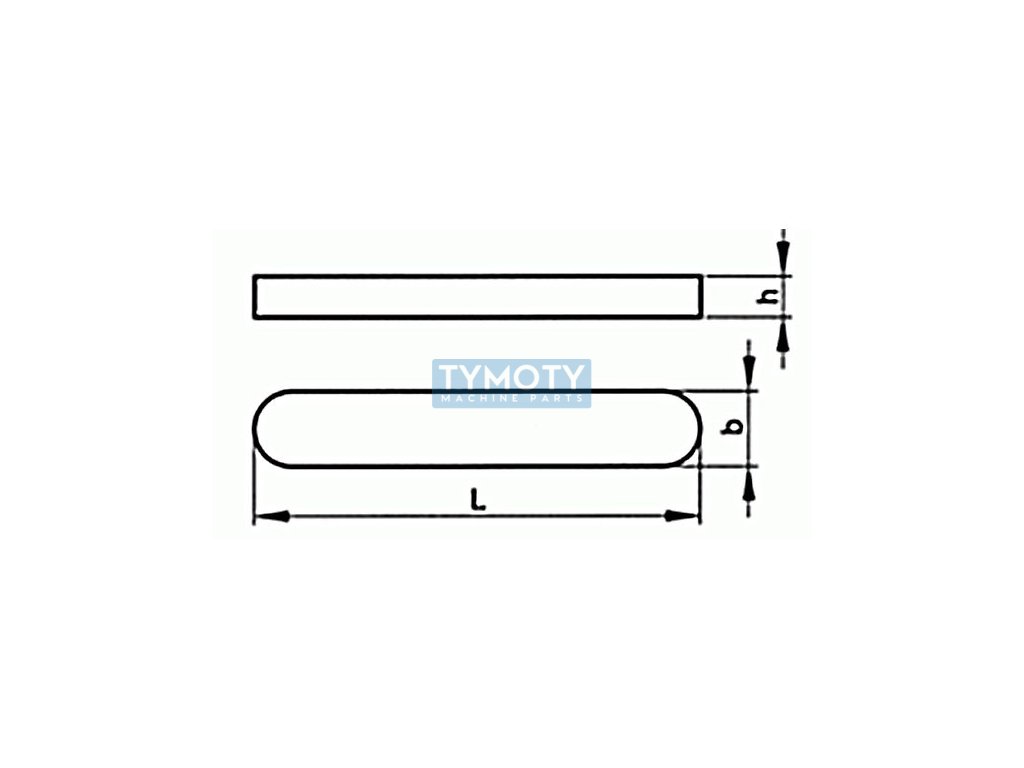

The dimensions of the key are 16 mm in width, 10 mm in height and 45 mm in length. The material used for production is C45K steel, which is a medium carbon steel with good mechanical properties such as strength and wear resistance. The C45+C surface treatment means that the steel has been hardened and tempered, which achieves higher hardness and wear resistance.

This key belongs to the group of parallel keys, which are used for precise and firm connection of rotating components in mechanical engineering. Thanks to its high precision and high-quality material, it is suitable for applications where high reliability and long connection life are required.
