Keyes DIN 6885 A 14x9x110

Product detailed description

The DIN 6885 A key with dimensions of 14x9x110 mm is a precision engineering component designed for reliable torque transmission between the shaft and the hub. It is manufactured according to the DIN 6885 A standard, which is equivalent to the international standards ISO 773 and ČSN 022562. This type of key is characterized by hemispherical ends, which allows easier assembly and disassembly in applications where precise alignment is required.

The material for the production of this key is C45K steel, which is known for its high strength and wear resistance. C45K steel is a carbon steel that is often used in engineering for its good machinability and ability to achieve high hardness after heat treatment. The C45+C surface finish indicates that the key is supplied in a drawn finish, which increases its accuracy and surface quality.

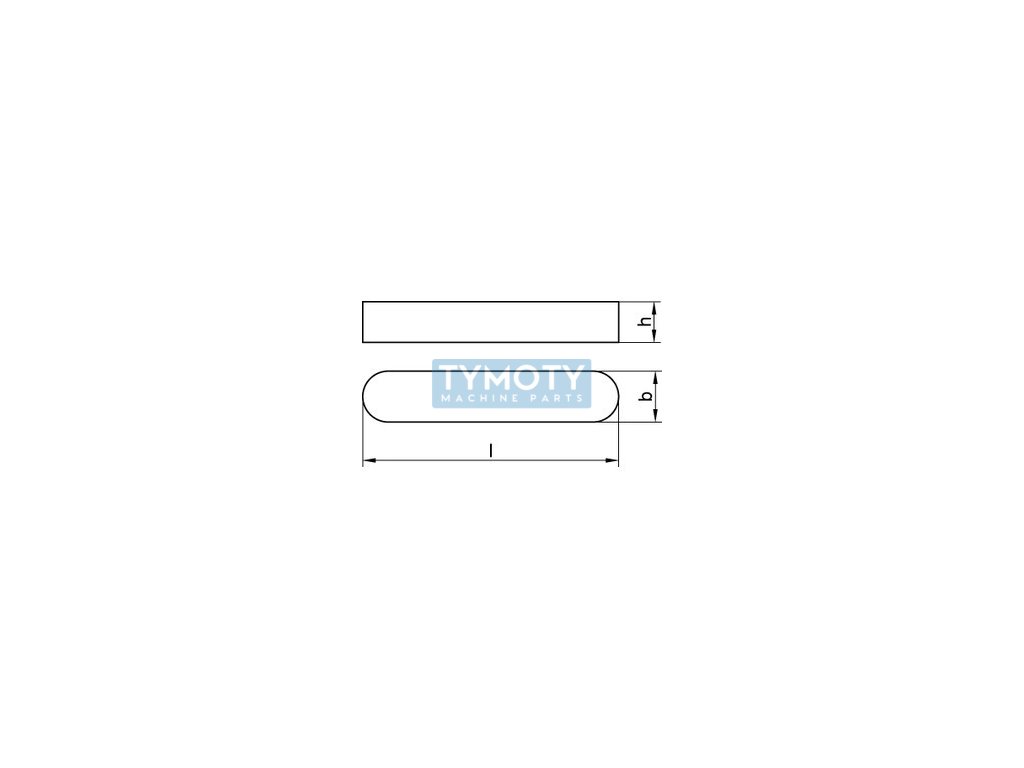

The key is included in the group of parallel keys, which are essential for the proper functioning of mechanical joints, where it is necessary to transmit torque without the risk of slipping. The dimensions of 14x9x110 mm correspond to the width, height and length of the key, which is important for its compatibility with the corresponding grooves on the shaft and hub. This component is ideal for use in various industrial applications where high accuracy and reliability of mechanical joints are required.
