Keyes DIN 6885 A 10x8x20

Product detailed description

The DIN 6885 A key, 10x8x20 mm, is a precision machined component designed to reliably transmit torque between the shaft and the hub. This type of key is made of C45K steel, which is a medium carbon steel that provides excellent strength and wear resistance, while being suitable for hardening and surface treatment.

The key has hemispherical ends, which simplifies its assembly and disassembly in applications where precise and firm fixation is required. The DIN 6885 A standard, which is equivalent to ISO 773 and ČSN 022562, ensures that the key meets international standards for dimensions and tolerances, thus guaranteeing its compatibility with various industrial applications.

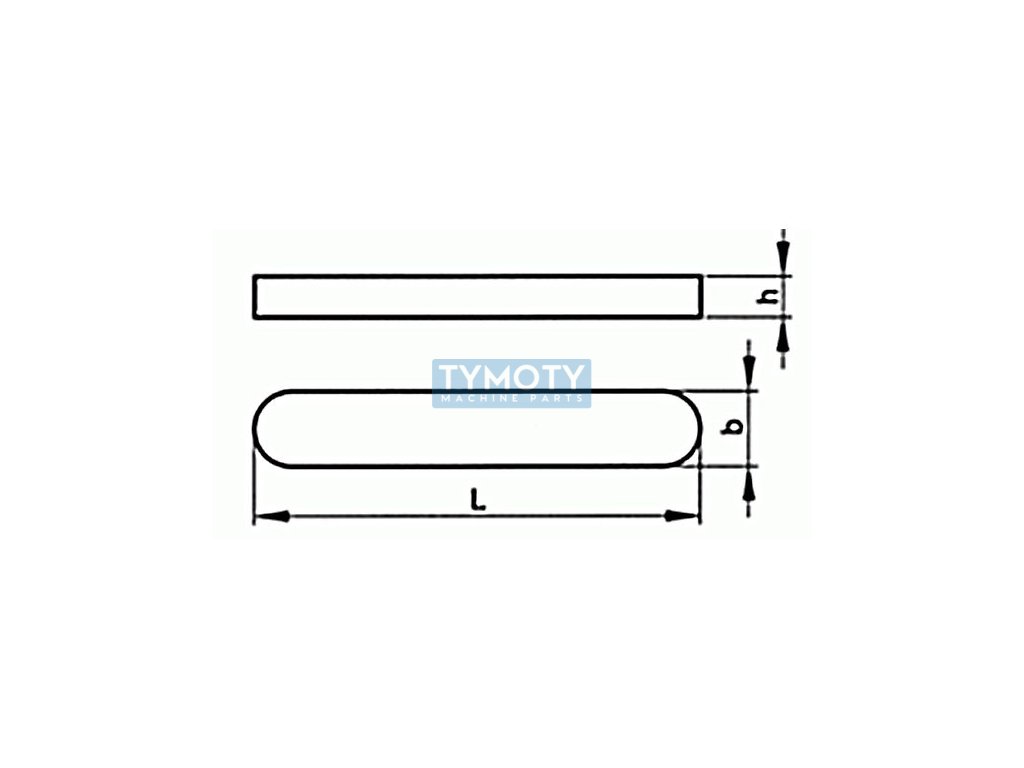

The key dimensions are as follows: width (a) is 10 mm, height (h) is 8 mm and length is 20 mm. These dimensions are critical for proper seating in the grooves on the shaft and hub, ensuring optimal power transmission without unwanted movement or wear. The key is classified as a fastener and is suitable for use in various mechanical assemblies where a strong and reliable coupling between rotating components is required.
