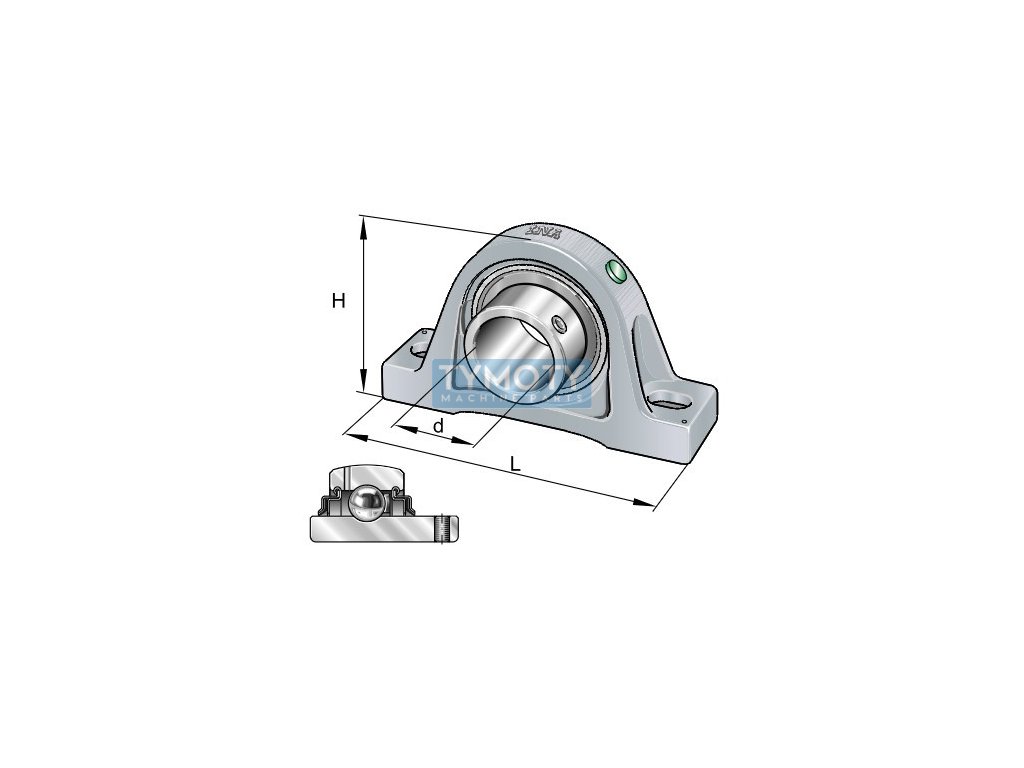

INA RASEY 20-XL-N bearing unit

Product detailed description

The INA RASEY 20-XL-N bearing unit is a vertical body unit designed for applications requiring reliable and precise shaft support. This unit features a cylindrical bore profile with an inner diameter of 20 mm, an outer diameter of 130 mm and a width of 64 mm. The construction is made of grey cast iron, which provides excellent strength and wear resistance, while the bearing is made of standard rolling bearing steel, which guarantees long life and reliability.

The unit is designed with double seals, which provide protection against the ingress of dirt and moisture, thus extending the life of the bearing. These seals are particularly important in environments with high dust or humidity. The bearing unit is capable of operating in a temperature range from -20 °C to +120 °C, which allows it to be used in various industrial applications.

The unit is fixed using set screws, which allows for easy assembly and disassembly. The dark gray color gives the unit a discreet appearance that is suitable for various industrial environments. The total weight of the unit is 0.58 kg, which simplifies handling during installation.

This bearing unit is ideal for applications where reliable and precise shaft support is required, while its robust construction and high-quality materials guarantee long-term operational reliability. Thanks to its technical properties, it is suitable for a wide range of industrial applications.
