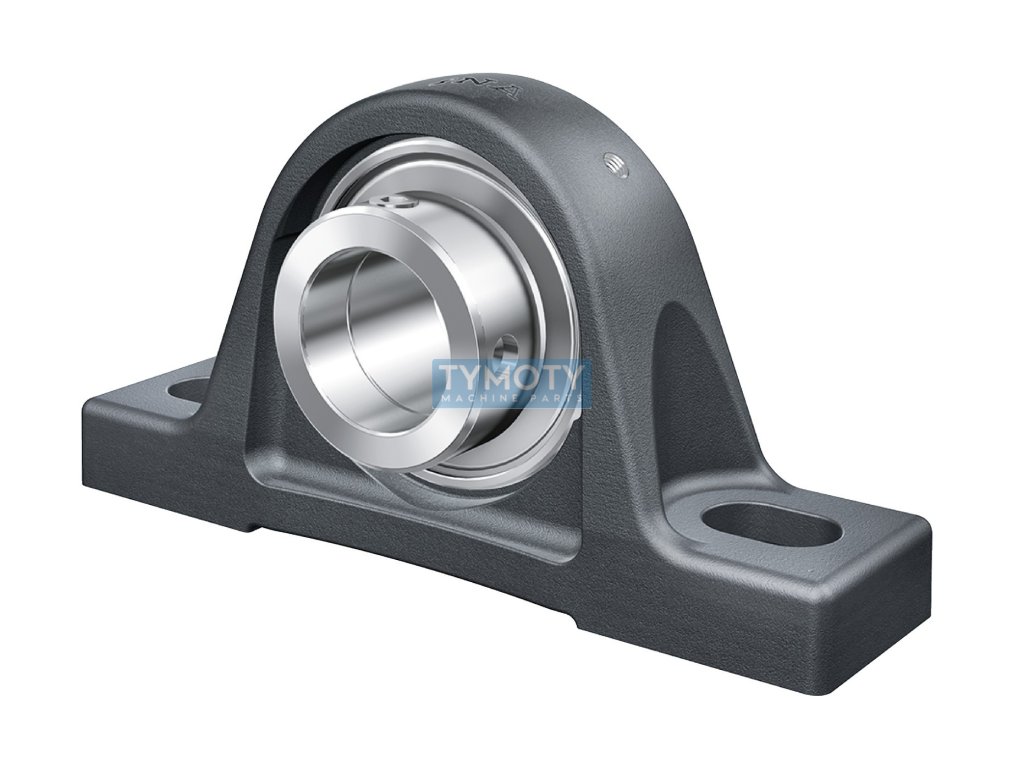

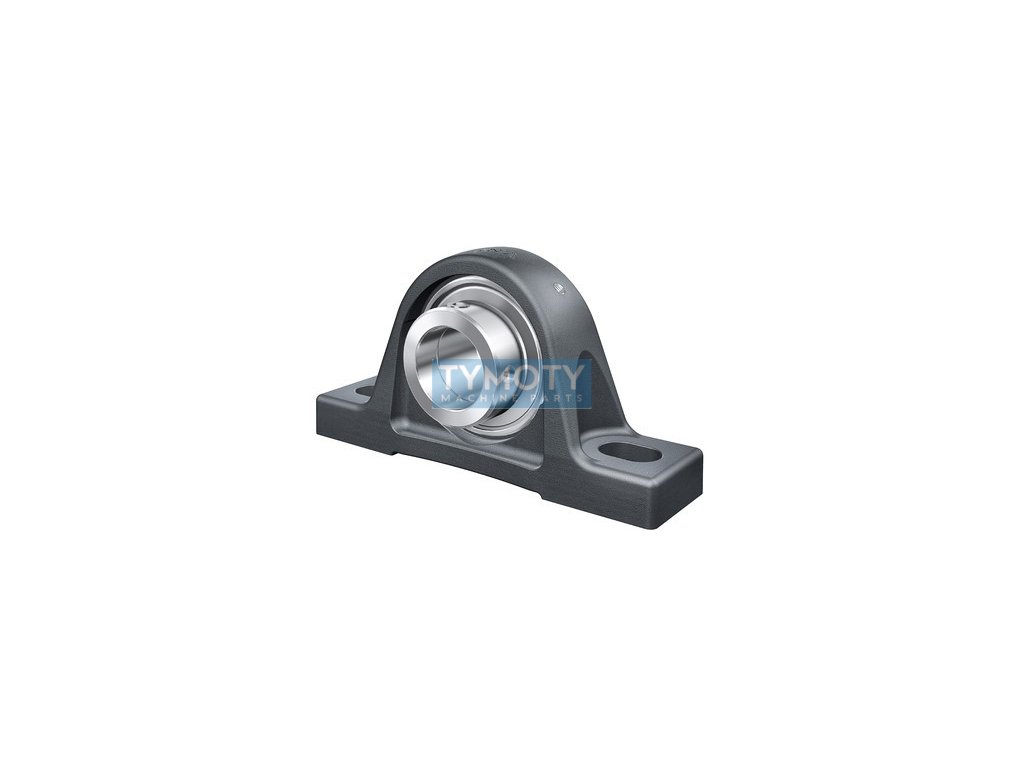

INA RASE 50-XL-N bearing unit

Product detailed description

The INA RASE 50-XL-N bearing unit is a high-quality plummer block designed for applications requiring reliability and long service life. This unit features a cylindrical bore profile with an inner diameter of 50 mm, an outer diameter of 200 mm and a width of 115 mm. It is made of durable grey cast iron, which provides high strength and resistance to mechanical wear, while the bearing is made of standard rolling bearing steel, which guarantees optimal performance under various operating conditions.

The unit is equipped with a double seal, which provides excellent protection against dust and moisture, thereby extending the bearing life and reducing the need for maintenance. The operating temperature range of this unit is from -20 °C to +120 °C, which allows it to be used in a wide range of industrial applications. The dark grey surface color contributes to the aesthetic appearance while providing additional protection against corrosion.

The assembly of this bearing unit is simple and flexible, allowing for top and bottom mounting using an eccentric mounting ring, which simplifies installation and increases the stability of the entire assembly. Weighing 2.8 kg, this unit is robust enough to handle demanding operating conditions, while its design ensures minimal vibration and quiet operation.

The INA RASE 50-XL-N bearing unit is the ideal choice for applications where high reliability and low maintenance are required, and is compatible with the previous INA RASE50-XL-NI model. Its design and material composition ensure long-term functionality and efficiency in various industrial sectors.
