INA PCJY 25-XL-N bearing unit

Product detailed description

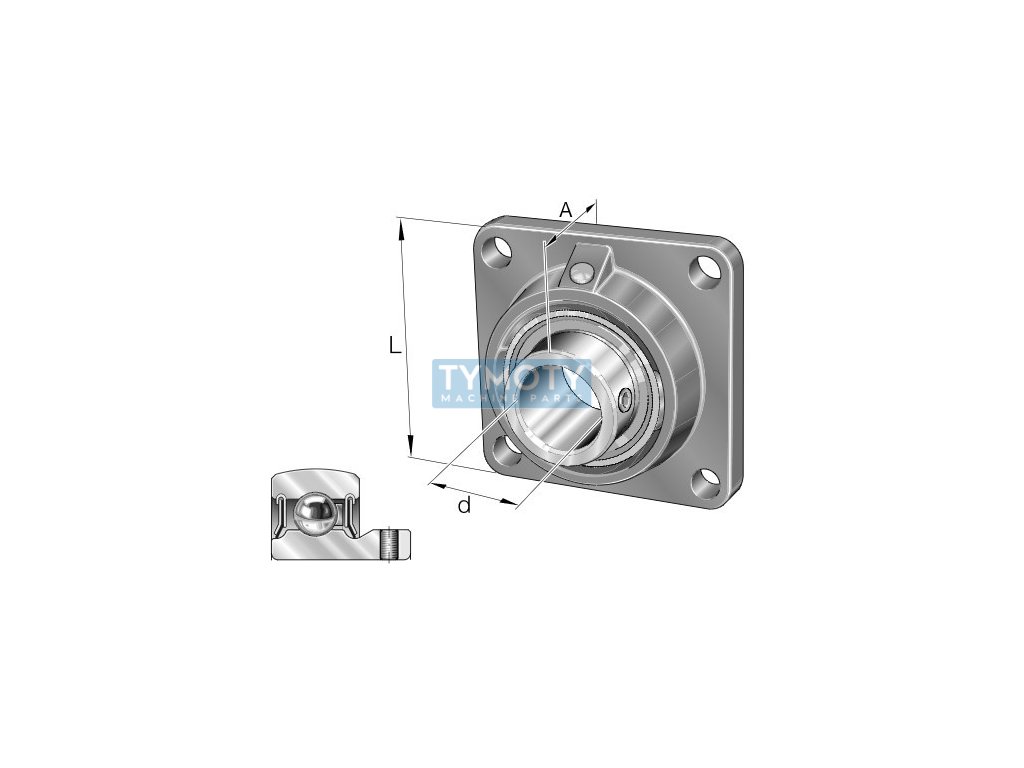

The INA PCJY 25-XL-N bearing unit is precisely designed for applications requiring reliable and efficient solutions in the field of power and motion transmission. This unit is equipped with a bearing with an inner diameter of 25 mm, an outer diameter of 95 mm and a width of 38.5 mm, which makes it suitable for a wide range of industrial applications.

The housing of the bearing unit is made of gray cast iron, which provides high strength and wear resistance, while the bearing itself is made of standard steel for rolling bearings, ensuring long service life and reliability. The dark gray surface finish contributes to the aesthetic appearance and protection against corrosion.

The unit is equipped with a simple seal that effectively protects against dirt and moisture, thereby extending the service life of the bearing. The operating temperature range from -20 °C to +120 °C allows use in various climatic conditions. The mounting is secured with set screws, which ensures a stable and secure installation.

The design includes four mounting holes and is equipped with a groove, which facilitates installation and increases flexibility of use. The total weight of the bearing unit is 0.73 kg, which allows easy handling and installation. This bearing unit is an ideal choice for applications requiring high quality and reliability, while being compatible with the previous model INA PCJY25-XL-N.
