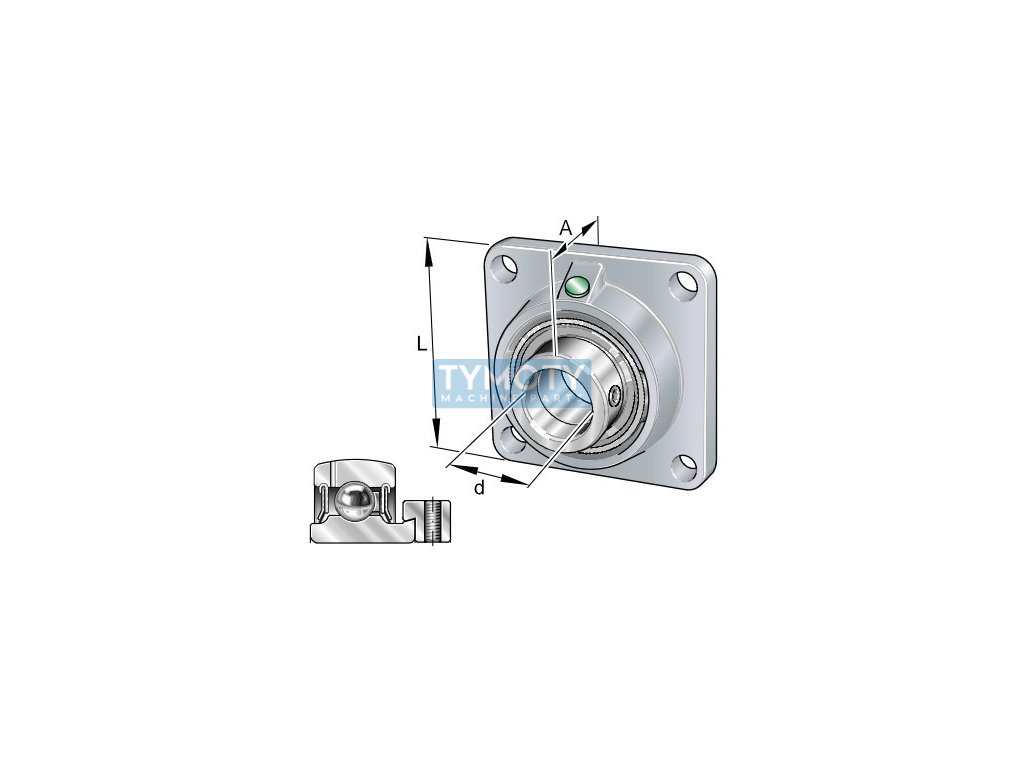

INA PCJ 25-N bearing unit
Code: 387556Product detailed description
The INA PCJ25-XL-N bearing unit is a high-quality component designed for applications requiring reliable and precise support of rotating parts. This unit is equipped with a bearing with an inner diameter (d) of 95 mm, an outer diameter (D) of 95 mm and a width (B) of 42.5 mm, making it a suitable choice for various industrial applications where standard dimensions are required.The design of the bearing unit is based on the use of gray cast iron for the housing, which provides excellent strength and resistance to mechanical stress. The bearing itself is made of high-quality bearing steel, which guarantees a long service life and high wear resistance. The dark gray color of the unit is the result of a surface treatment that increases its resistance to corrosion and wear.
The unit is equipped with a simple seal that provides basic protection against dust and moisture, thereby contributing to the extension of the bearing life. The operating temperature range of the bearing unit is from -20 °C to +120 °C, which allows it to be used in various climatic conditions and applications.
The PCJ25-XL-N bearing unit is designed with a cylindrical hole profile, which allows easy mounting and dismounting on the shaft. This product is suitable for use in various industrial sectors where high reliability and accuracy of bearing systems are required. The manufacturer INA is known for its consistency in quality and innovation, which ensures that this bearing unit will meet the expectations of even the most demanding applications.
Additional parameters
Category: | Bearings > bearing units > with Y bearings > oval > row 200 beds with extra narrow (FYTB..FM, PCJT, PCFT) > 205 |
---|---|
Weight: | 0.76 kg |
EAN: | 4012802809473 |
Color: | dark gray |
Diameter D (mm): | 95 |
Hole profile: | cylindrical |
Manufacturer's brand: | INA |
Material: | gray cast iron, bearing steel |
Maximum temperature °C: | +120 |
Minimum temperature °C: | -20 |
Seal: | simple seal |
Width B (mm): | 42,5 |
Číslo výrobce: | 009640908-0000 |
Značení: | PCJ25-XL-N |
Typ: | ložisková jednotka |
