INA PCFT 50 bearing unit

Product detailed description

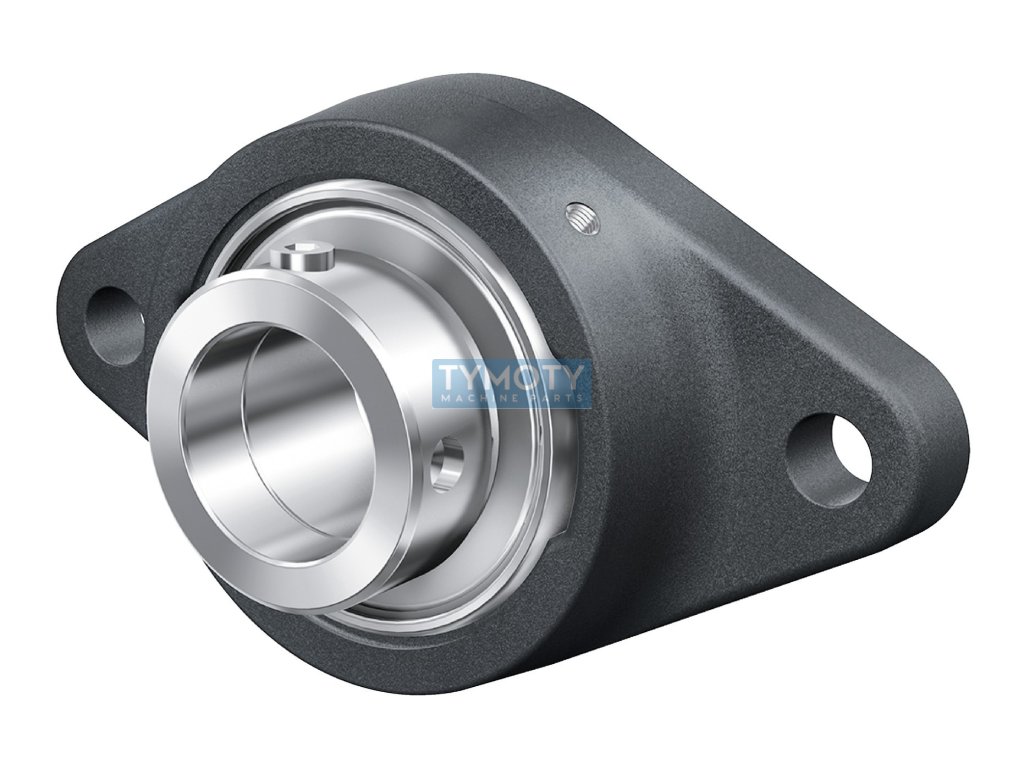

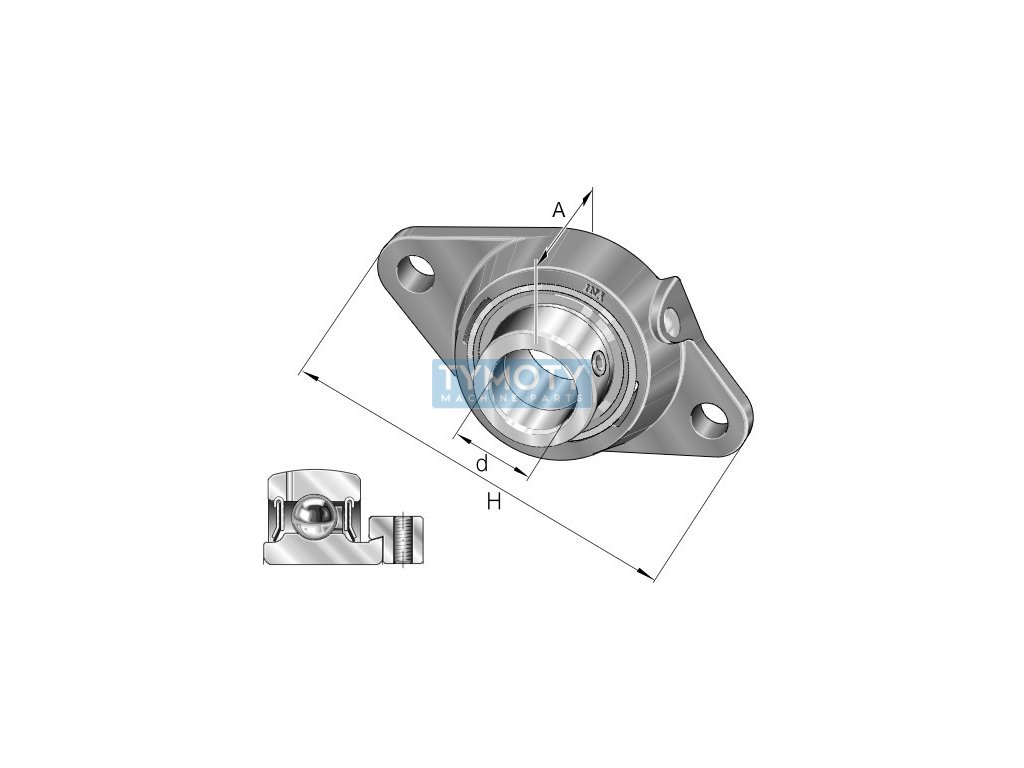

The INA PCFT50 bearing unit is designed as a square flange unit and is intended for applications requiring reliable and precise shaft support. This unit is equipped with a cylindrical bore profile with a diameter of 50 mm, which allows easy installation on a shaft with the same diameter. The outer diameter of the unit is 190 mm and the overall width is 52 mm, which ensures stability and strength in operation.

The material composition consists of gray cast iron for the unit housing and bearing steel for the bearing itself, which provides high wear resistance and long service life. The unit is equipped with a single seal that provides protection against dust and dirt, while allowing operation in a temperature range from -20 °C to +120 °C. The dark gray surface color increases corrosion resistance and aesthetically blends into the industrial environment.

The bearing unit is mounted using an eccentric mounting ring, which simplifies assembly and disassembly, while ensuring a solid connection to the shaft. The unit contains two mounting holes that allow for secure attachment to the supporting structure. The total weight of the unit is 1.72 kg, which is optimal for handling and installation in various industrial applications.

The INA PCFT50 bearing unit is an ideal choice for applications where high precision and reliability are required, while its standard design allows for wide use in various industrial sectors.
