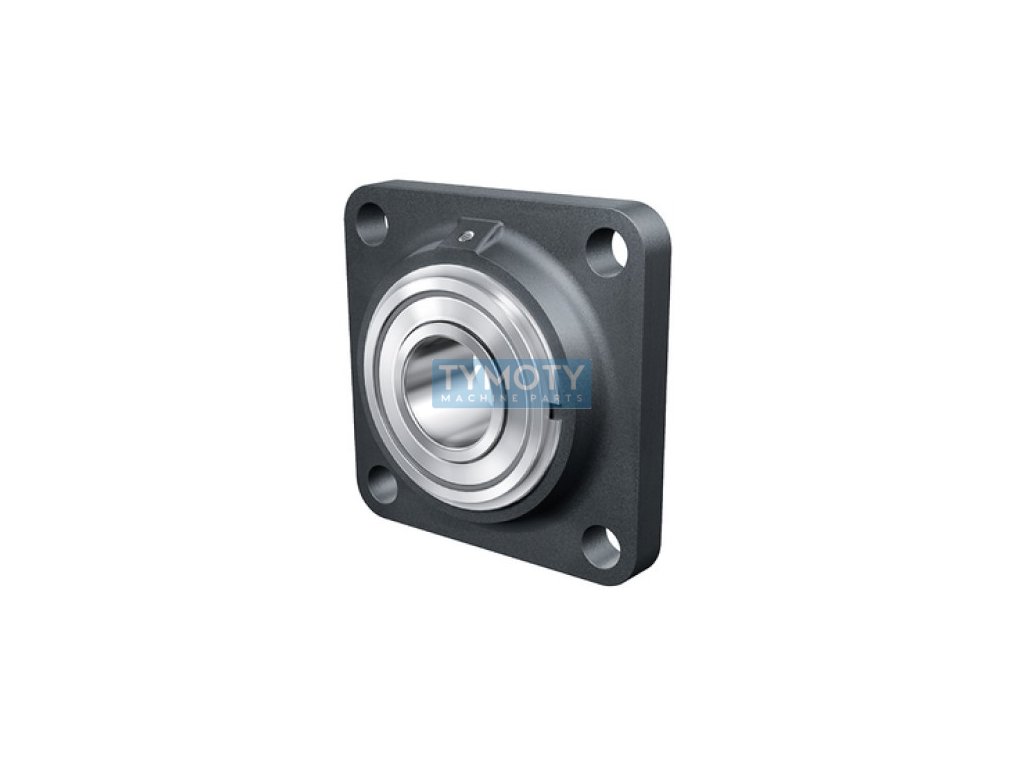

INA PCCJ 25 bearing unit

Product detailed description

The PCCJ25 bearing unit from INA is a flanged bearing unit designed for applications requiring reliable and precise positioning of rotating components. This unit has an inner diameter (d) of 25 mm, an outer diameter (D) of 95 mm and a width (B) of 26.7 mm. It is made of high-quality gray cast iron, while the bearing itself is made of standard steel for rolling bearings, which ensures high durability and long service life.

The unit is equipped with a simple seal that provides basic protection against dust and dirt, thereby contributing to the extension of the service life of the bearing. The operating temperature range is from -20 °C to +120 °C, which allows it to be used in various industrial environments.

The PCCJ25 is a standard design and has four mounting holes, which allows easy installation on various types of structures. The shape of the unit is square, which simplifies its integration into existing systems. The unit weighs 0.89 kg, which reflects the robustness and stability needed for efficient load transfer.

This bearing unit is ideal for applications where high precision and reliability are required, such as various mechanical devices and industrial machines. The manufacturer INA, part of the Schaeffler Group, is known for its quality and innovation in the field of bearings, which ensures that the PCCJ25 is a product of the highest quality.
