INA NUTR 2052 support pulley

Product detailed description

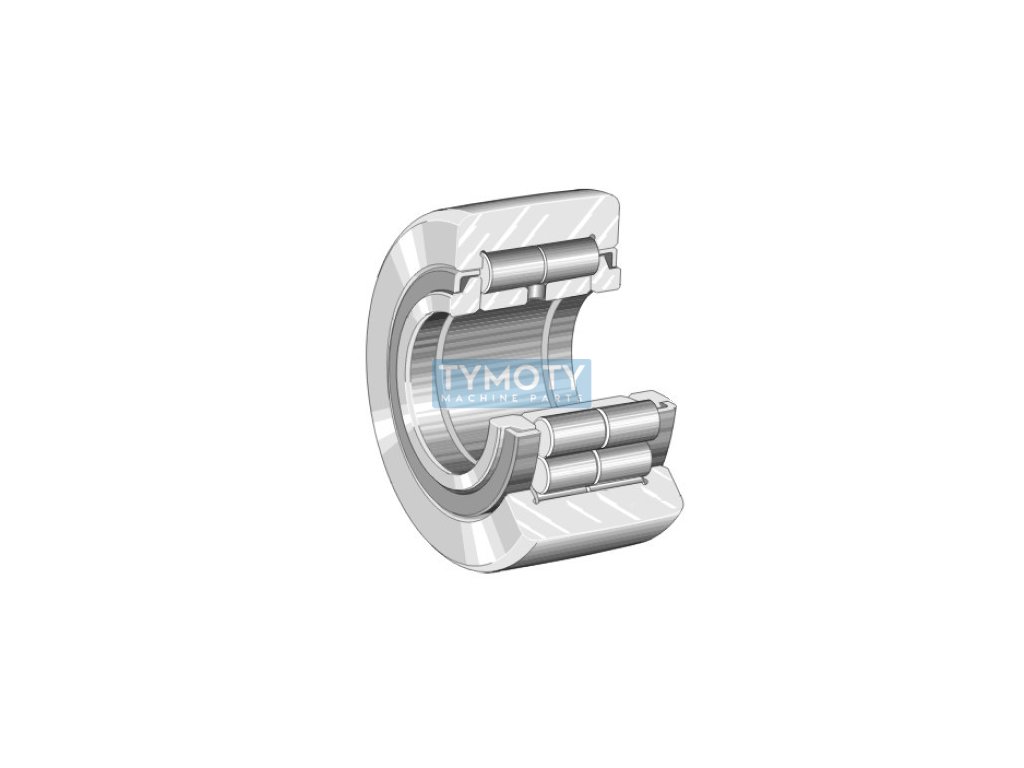

The INA NUTR 2052 support roller is specifically designed for applications requiring high durability and reliability in track environments. This component belongs to the category of "yoke type track rollers", which means that it is designed to transmit high radial and axial loads.

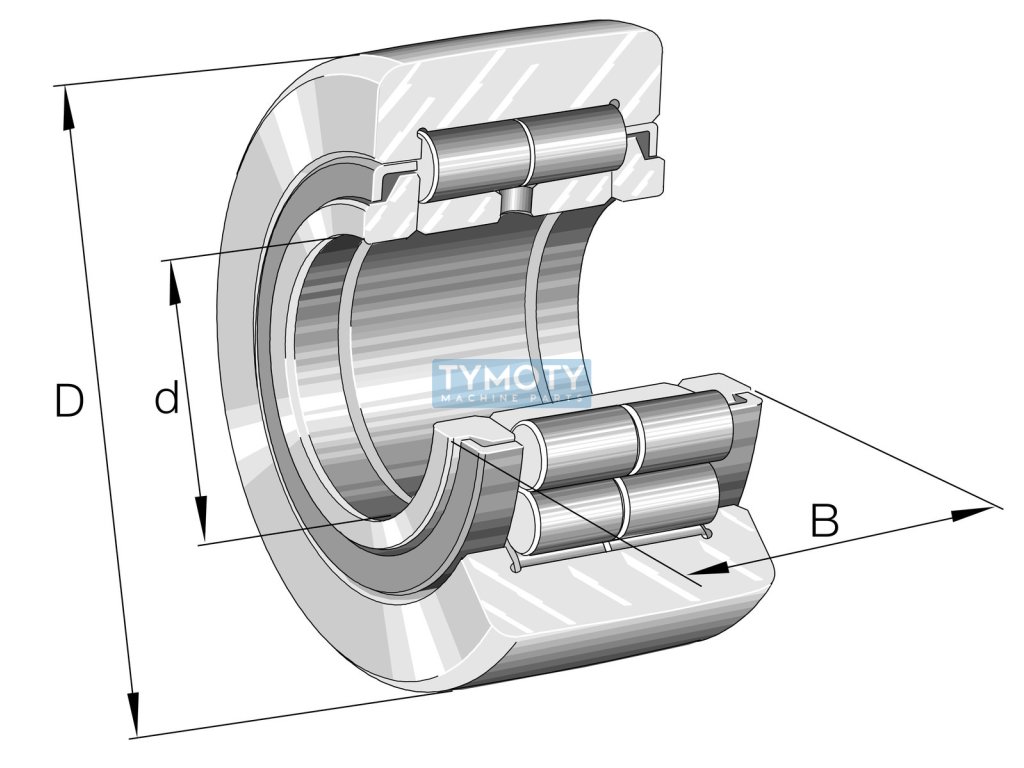

The roller has an inner diameter (d) of 20 mm, an outer diameter (D) of 52 mm and a width (B) of 25 mm. It is made of standard steel for rolling bearings, which guarantees high strength and wear resistance. The inner ring is equipped with an axial guide, which ensures stability and accuracy of movement.

The outer ring has a spherical surface, which allows for better load distribution and reduces the risk of stress concentration. The pulley is equipped with a double-sided labyrinth seal, which provides effective protection against dust and dirt, thereby extending the life of the bearing.

The operating temperature range of the pulley is from -20 °C to +120 °C, which allows it to be used in various industrial conditions. The pulley does not have an internal cage, which simplifies its design and reduces the weight to 0.317 kg.

This component is ideal for applications in the automotive industry, production technology and other areas where high precision and reliability in load transfer are required. The manufacturer is the renowned brand INA, which is part of the Schaeffler Group, known for its quality and innovation in the field of bearings and pulleys.
