INA NKIB 5907-XL bearing

Product detailed description

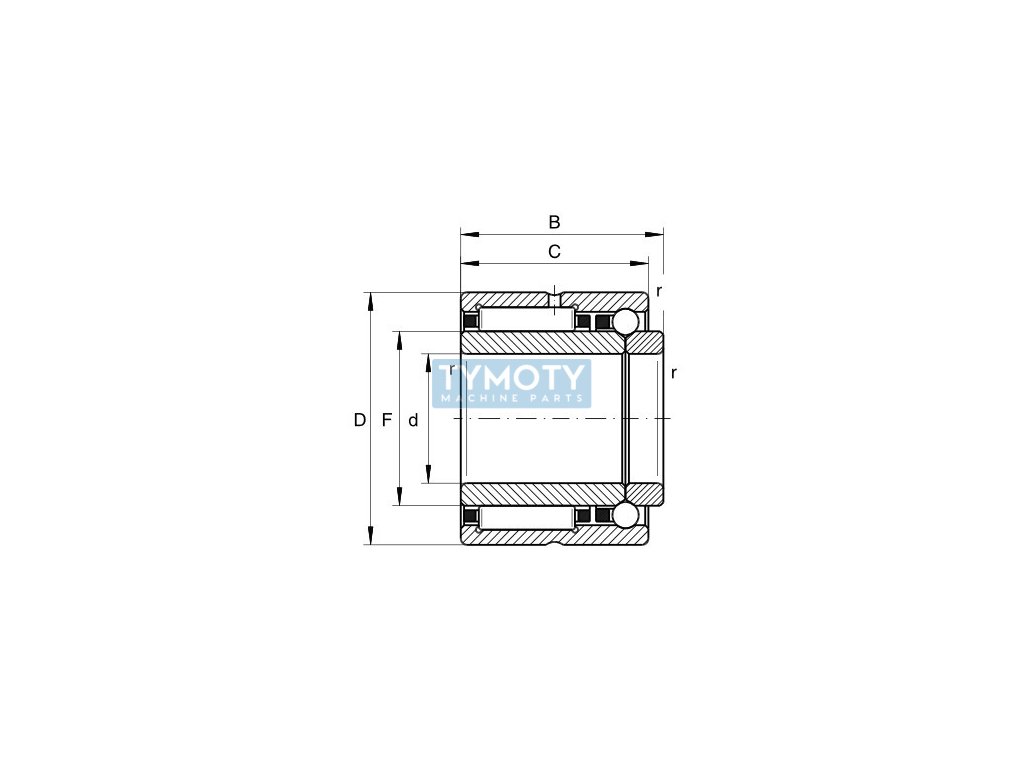

The INA NKIB 5907-XL bearing is a combined needle and angular contact ball bearing designed for applications requiring high precision and reliability. This bearing has an inner diameter of 35 mm, an outer diameter of 55 mm and a width of 30 mm. It is made of high-quality steel, which is standard for rolling bearings, and is equipped with a pressed steel cage, which ensures optimal stability and resistance to mechanical stress.

The bearing is designed without seals, which allows it to be used in applications where protection from external influences is not required, or where external lubrication is provided. The inner ring is two-piece, which contributes to better load distribution and allows bidirectional force transmission. The bearing operates in a temperature range from -20 °C to +120 °C, making it suitable for a wide range of industrial applications.

The running accuracy is in class P0/PN, which corresponds to ABEC 1, and provides sufficient accuracy for common industrial use. The normal bearing clearance ensures an optimal compromise between freedom of movement and stability. With a weight of 0.244 kg, the bearing is lightweight, which contributes to reducing the overall weight of the structure in which it is used. Overall, the INA NKIB 5907-XL bearing is ideal for applications where a combination of radial and axial loads is required, while providing a high level of reliability and performance.
