INA NATR 5 PP-A support pulley

Product detailed description

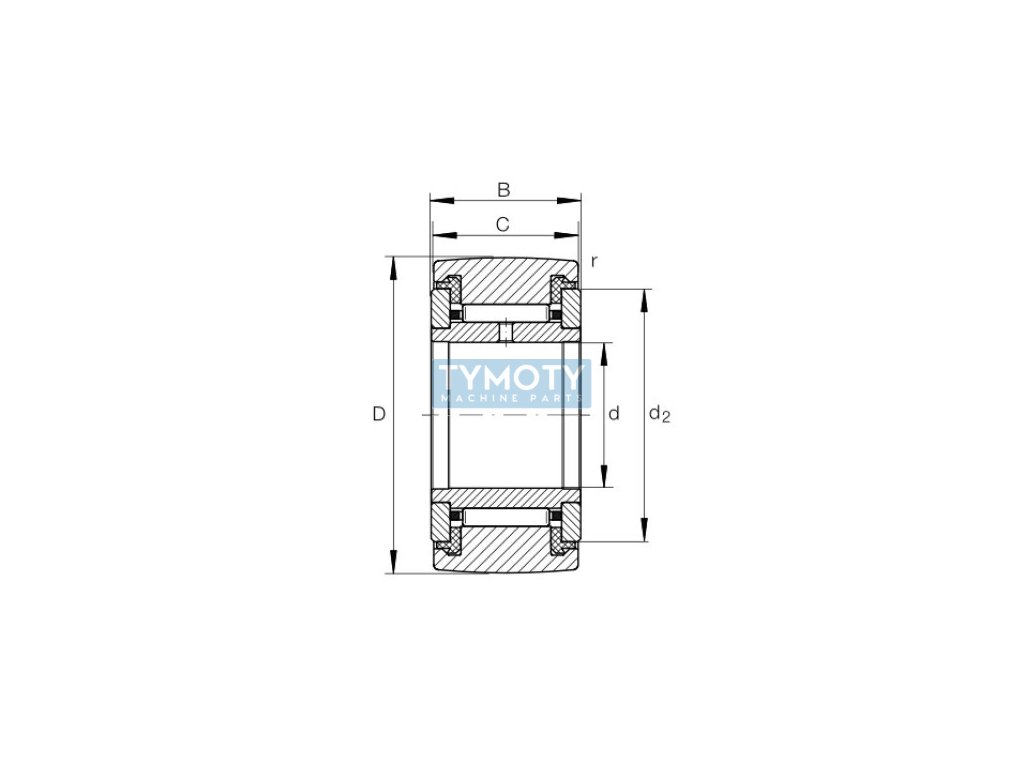

INA NATR 5 PP-A is a support pulley designed for applications where high precision and reliability are required. This pulley is part of the INA product range, which is known for its quality and durability. The pulley has an outer diameter of 16 mm and an inner diameter of 5 mm, while its overall width is 12 mm and the width of the rolling surface is 11 mm. These dimensions allow it to be used in compact spaces where high power density is required.

The outer ring of the pulley has a spherical surface, which contributes to better load distribution and reduces wear when in contact with uneven surfaces. The hole profile is cylindrical, which allows easy mounting on the shaft. The pulley material is high-quality steel, which ensures a long service life and resistance to mechanical stress. The steel cage guarantees the stability of the rolling elements and contributes to the overall robustness of the component.

The pulley is equipped with a double-sided plastic seal with a ring, which protects the internal components from dust and dirt, thereby extending its service life. The operating temperature range of the pulley is from -20 °C to +120 °C, which allows it to be used in various climatic conditions and applications.

This component is ideal for use in industrial applications where high accuracy and reliability are required, such as conveyor systems, automated production lines and other mechanisms requiring precise guidance and support. The serial number 005705908-0000 allows for easy identification and ordering of spare parts.
