INA NA 69/32-ZW-XL needle bearing

Product detailed description

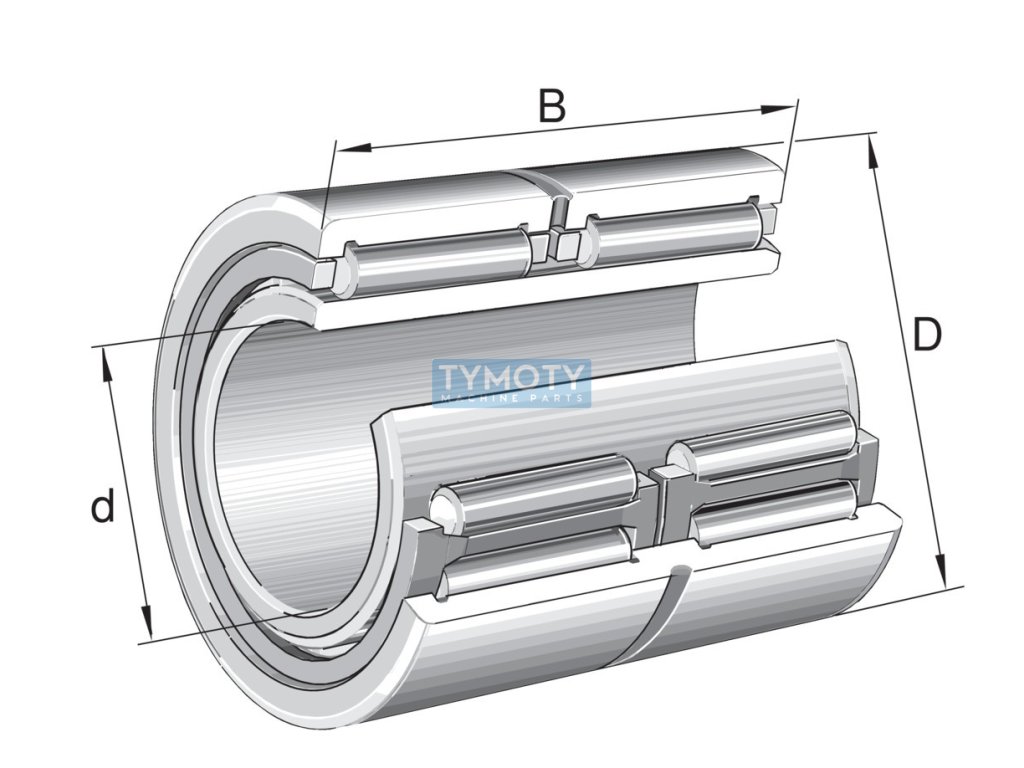

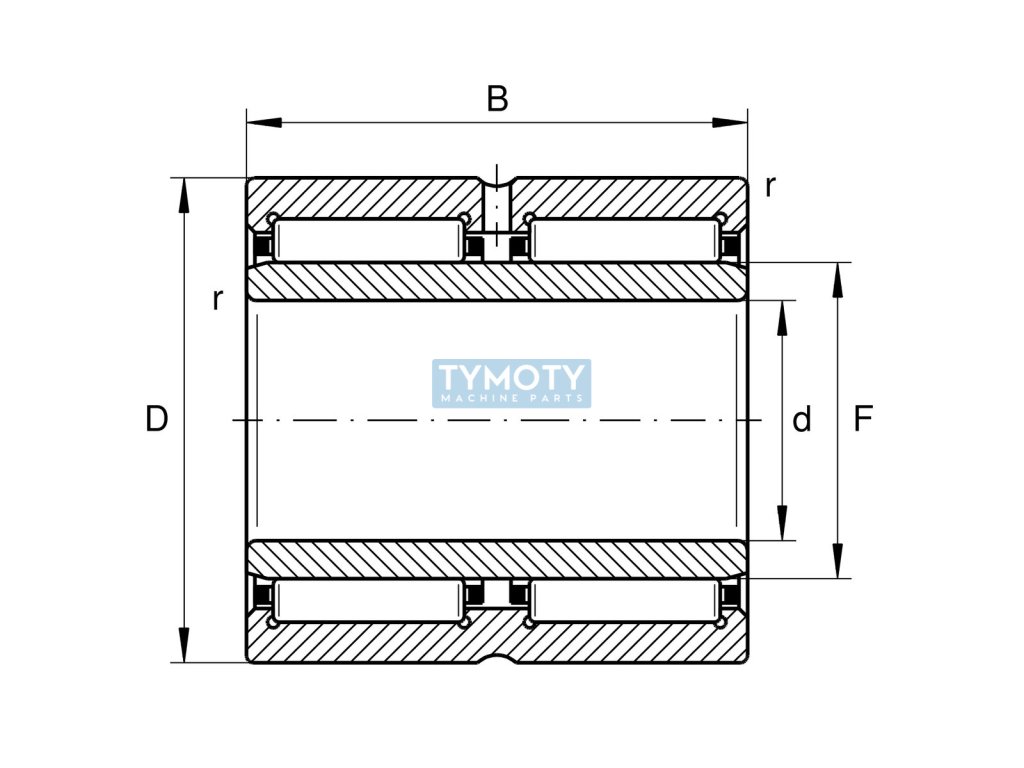

INA NA 69/32-ZW-XL is a double row needle roller bearing designed for applications requiring high load capacity and compact dimensions. This bearing has an inner diameter of 32 mm, an outer diameter of 52 mm and a width of 36 mm. The bearing is made of high-quality steel, which ensures its long service life and reliability in operation.

The bearing is equipped with a pressed steel cage, which ensures optimal needle guidance and reduces friction. The inner ring is part of the design, which allows easier assembly and disassembly in applications where the bearing needs to be changed or checked frequently.

The operating temperature range of the bearing is from -20 °C to +100 °C, which allows it to be used in various industrial conditions. The bearing is without a seal, which means that it is suitable for applications where external lubrication is provided. Lubrication is facilitated by the presence of a circumferential groove with lubrication holes, which allows for efficient delivery of lubricant directly to the bearing.

Normal radial clearance and running accuracy in class P0/PN (resp. ABEC 1) ensure that the bearing provides stable and precise performance in applications where precise movements and low vibrations are critical. Thanks to its robust design and reliability, the INA NA 69/32-ZW-XL bearing is ideal for various industrial applications, including the engineering industry, production and maintenance of mechanical equipment.

The total weight of the bearing is 0.289 kg, which contributes to its easy handling and installation. The manufacturer INA, part of the Schaeffler Group, is known for its high quality and innovation in the field of bearings, which ensures that this bearing meets the highest standards of reliability and performance.
