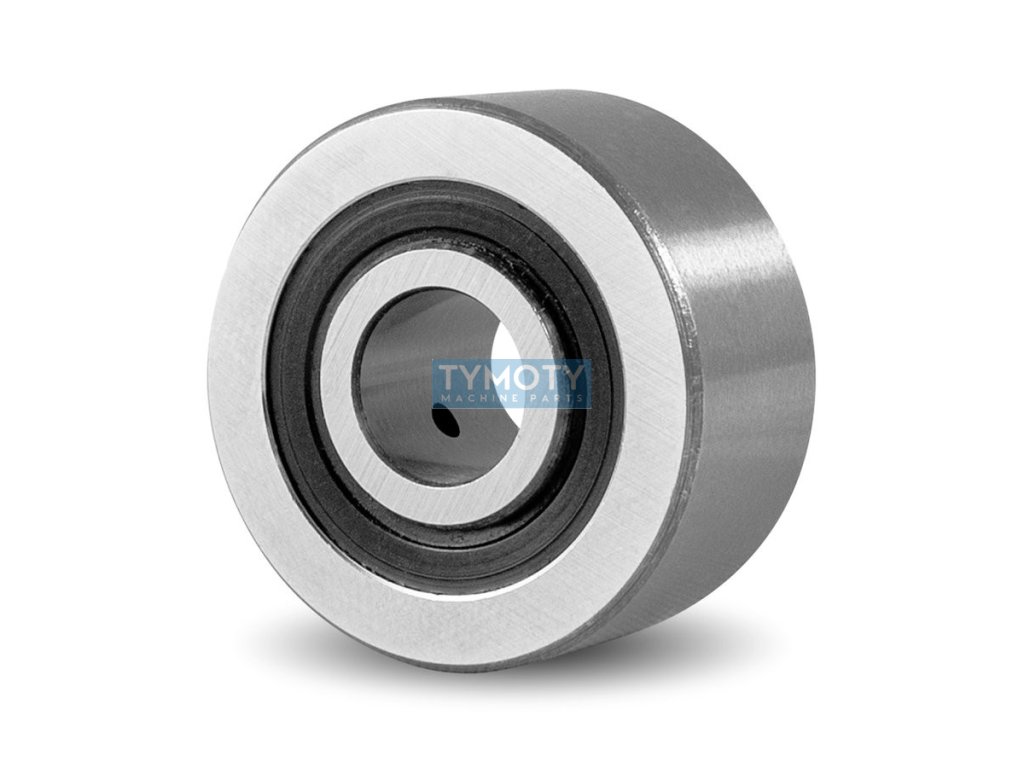

INA NA 2201 2RS support pulley

Product detailed description

The INA NA 2201 2RS support roller is specially designed for applications requiring precise guidance and support in mechanical systems. This roller belongs to the yoke type track rollers category, which means that it is designed to transmit radial loads in combination with axial movements, and is suitable for various industrial applications.

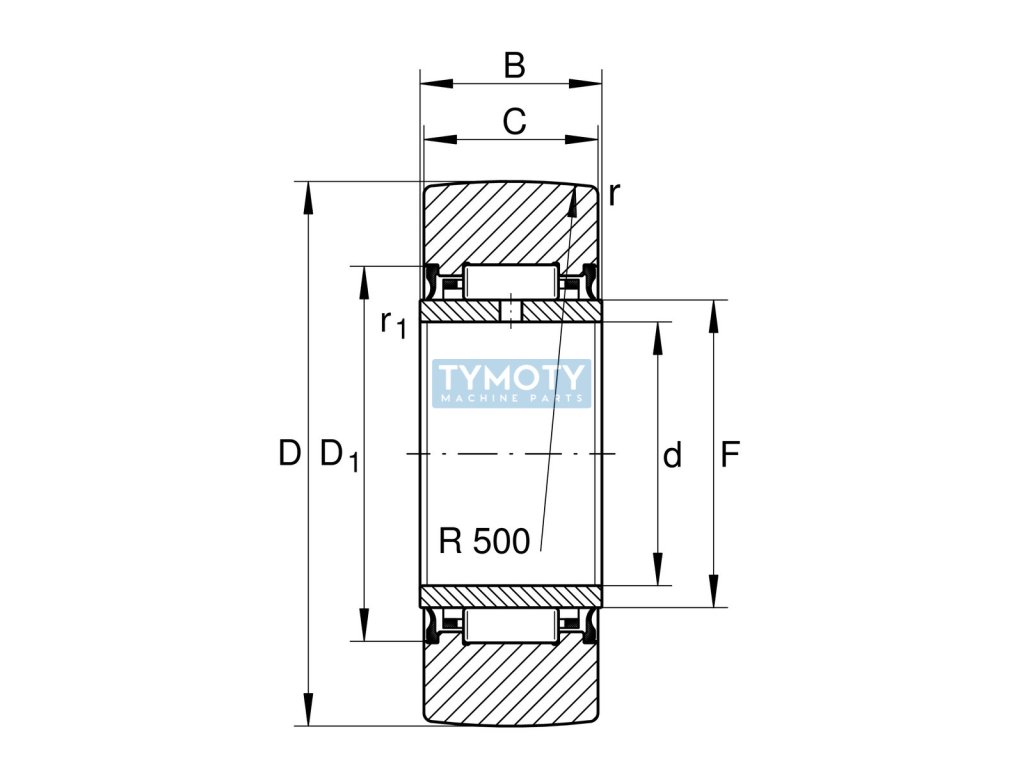

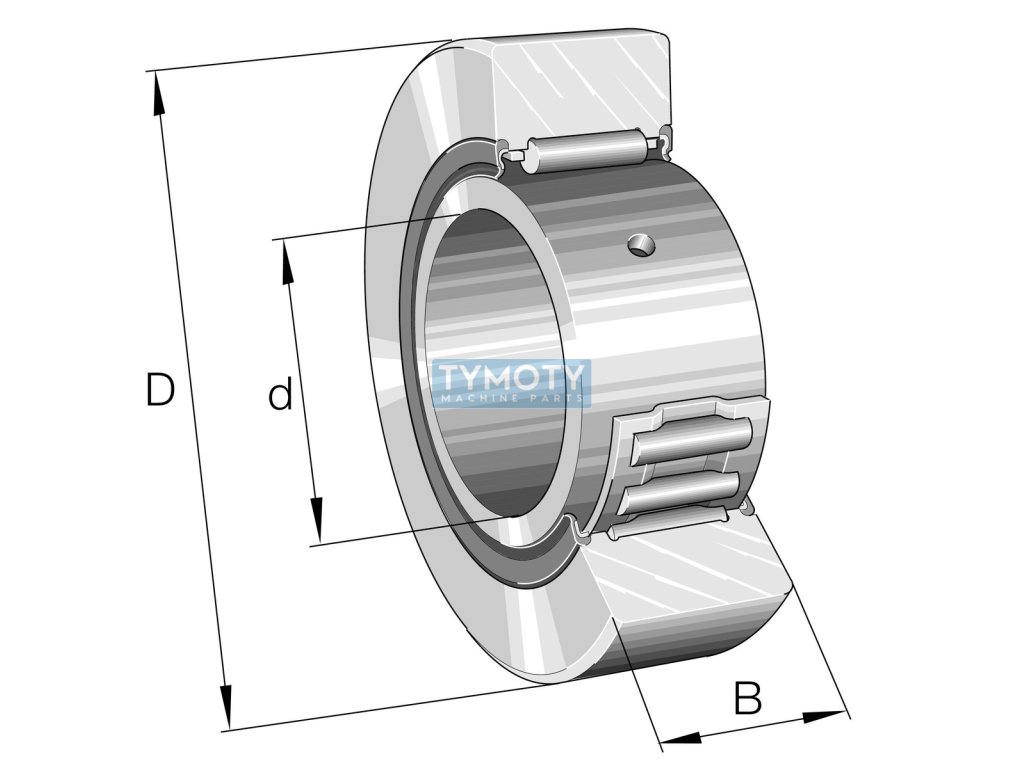

The roller has an inner diameter (d) of 12 mm, an outer diameter (D) of 32 mm and a width (B) of 14 mm. It is equipped with a double-sided lip seal, which provides protection against dirt and moisture, thereby extending the life of the component. These seals are important for maintaining optimal operating conditions in the temperature range from -20 °C to +120 °C.

The roller is made of standard steel for rolling bearings, which guarantees high strength and wear resistance. The inner ring is part of the structure and provides reliable support for rotation. The inner ring is accompanied by a pressed steel cage, which ensures stability and uniform load distribution.

The outer ring has an external spherical surface, which allows better adaptability during assembly and operation in systems with slight irregularities. The pulley does not have an axial guide, which is suitable for applications where axial clearance is required.

With a weight of 0.067 kg, this pulley is lightweight, which contributes to reducing the overall weight of mechanical assemblies. The manufacturer INA, part of the Schaeffler Group, is known for its quality and reliability in the field of rolling bearings and components for drive systems. This pulley is an ideal choice for applications where high precision and reliability are required while maintaining a low component weight.
