INA KH 50 bearing
Code: 399911
Product detailed description

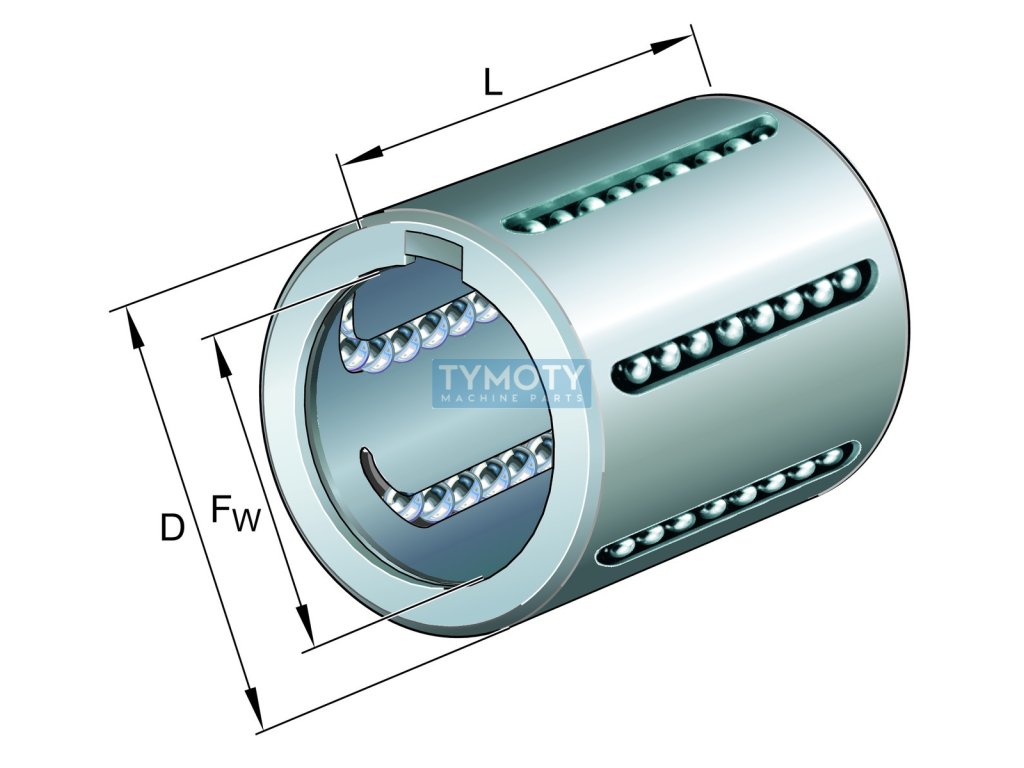

INA KH 50 linear ball bearing
The INA KH50 linear ball bearing is a compact and reliable solution for linear motion applications. This bearing is equipped with double-row raceways that enable smooth and precise movement with minimal friction. Thanks to its compact dimensions and low weight, it is ideal for mounting in confined spaces.
Technical parameters:
- Maximum load: 520 N
- Moving speed: up to 3 m/s>_x _x
- INA KH 50-basic model without any added modifications or seals.
- INA KH 50-P - version with one seal ("P" means seal), the seal is located on one side of the bearing.
- INA KH 50-PP - version with two seals (both sides have seals).
- INA KH 50-PP-RROC - version with two seals (PP) RROC.
INA KH 50 is an ideal choice for applications requiring precise and reliable linear movements, such as CNC machines, automation or precision tools.
The INA KH50 bearing has several modifications
Additional parameters
| Category: | Bearings > linear technique > rod guides with bushings > ball bearings > compact KH > without gaskets |
|---|---|
| Weight: | 0.255 kg |
| EAN: | 4012802086751 |
| Diameter D (mm): | 50, 62 |
| Hole profile: | cylindrical |
| Length L (mm): | 70 |
| Manufacturer's brand: | INA |
| Material: | steel |
| Width B (mm): | 50 |
| Číslo výrobce: | 000342246-0000 |
| Značení: | KH50-B |
| Typ: | lineární kuličkové ložisko |
