INA K 30x35x20 needle cage

Product detailed description

INA K 30x35x20 needle roller bearing is a specific type of needle roller bearing, which consists of rollers and a cage. This component is designed for applications where it is necessary to carry high radial loads with minimal space requirements. Its design allows for effective use in confined spaces where other types of bearings cannot be used.

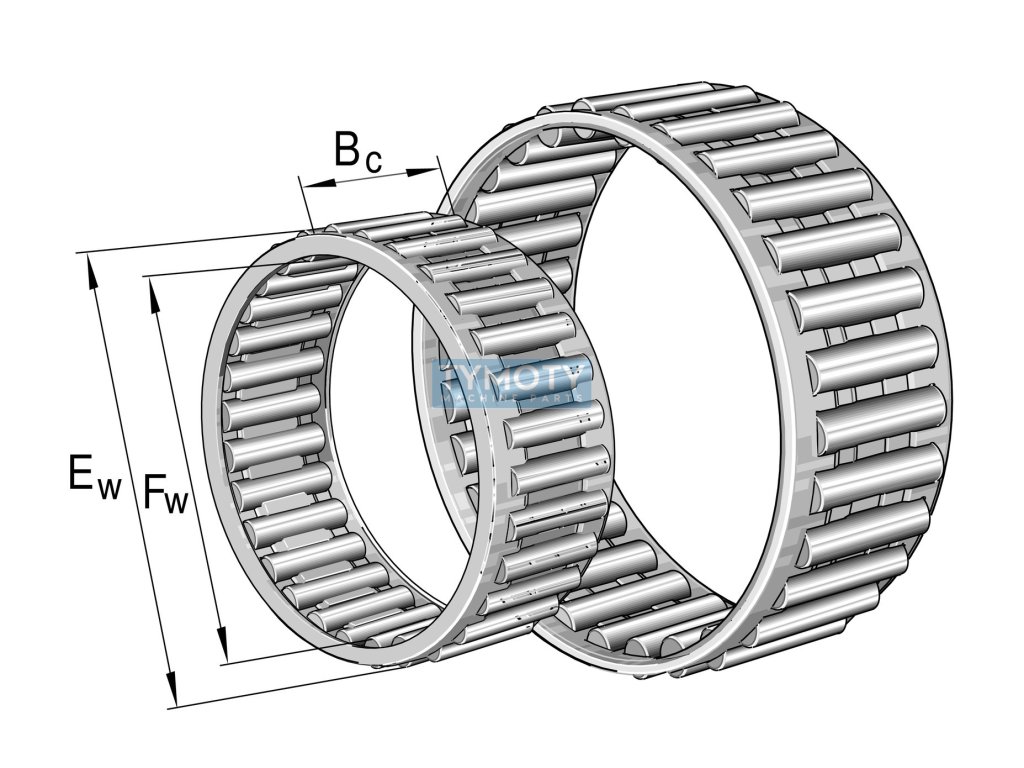

The main dimensions of this needle roller bearing are: inner diameter (d) 30 mm, outer diameter (D) 35 mm and width (B) 20 mm. These dimensions guarantee an accurate fit in applications where precise tolerances are specified. The needle roller bearing is made of pressed steel, which guarantees high strength and wear resistance. The steel cage provides stable support for the needle rollers and reduces friction, thereby extending the bearing's life.

This component is designed to operate in a temperature range of -20 °C to +150 °C, which allows it to be used in a variety of industrial environments, including those with high temperature fluctuations. The needle cage is single-row, which means it contains one row of needle rollers, optimized for efficient load distribution.

The manufacturer INA, part of the Schaeffler Group, is known for its quality and precision in the field of bearing manufacturing. The product is marked with the manufacturer's number 000263931-6063 and weighs 0.022 kg, which contributes to its easy handling and installation. This needle cage is ideal for applications where high precision and reliability are required, such as gearboxes, automobiles and various industrial machines.
