INA K 20x24x10 needle cage
Code: 658603Product detailed description

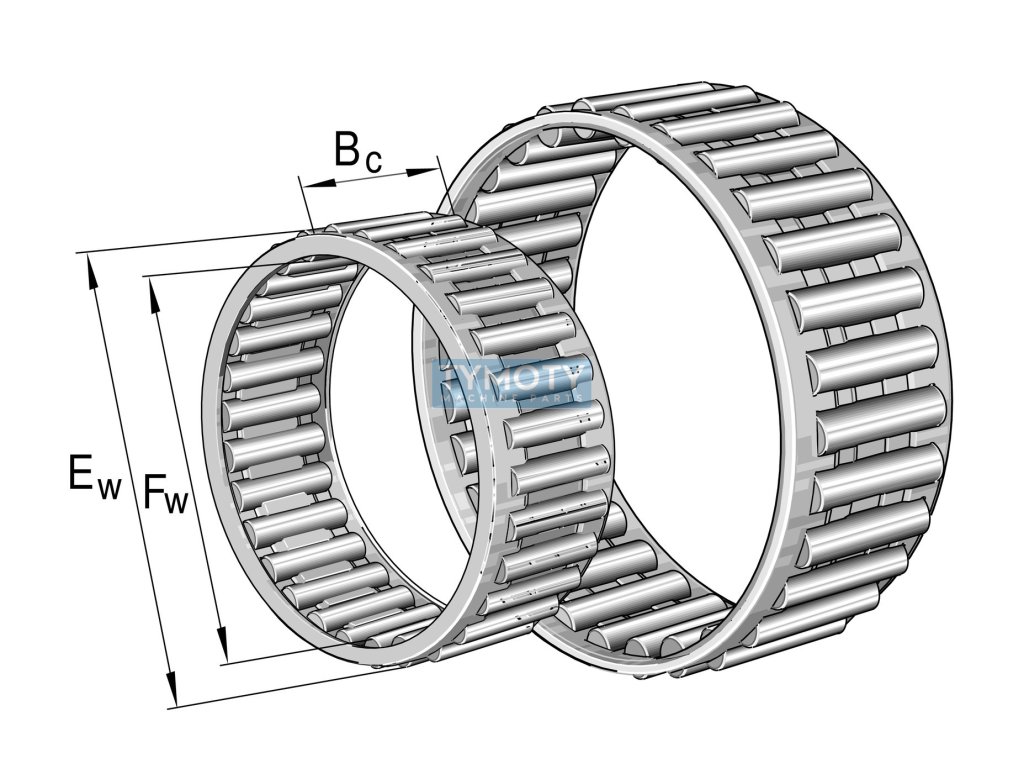

INA K 20x24x10 needle roller cage is a precisely designed needle roller cage designed for applications where it is necessary to ensure high load capacity with minimum dimensions. This component is part of the range of the renowned manufacturer INA, which is known for its quality and reliability.The cage has an inner diameter of 20 mm, an outer diameter of 24 mm and a width of 10 mm. It is made of pressed steel, which guarantees high strength and resistance to mechanical wear. The steel structure also allows for effective heat dissipation, which is important for operation in a wide temperature range from -20 °C to +150 °C.
The INA K 20x24x10 needle roller cage is single-row, which means that it contains one row of needles, which are arranged to ensure even load distribution and minimize friction. The hole profile is cylindrical, which allows for easy assembly and disassembly within mechanical assemblies.
Weighing just 0.006 kg, this cage is ideal for applications where low component weight is critical. It is suitable for a variety of industries including automotive, mechanical engineering and equipment manufacturing, where high precision and reliability in the transmission of rotary motion are required.
The code designation K20X24X10-A/0-7 and the serial number 000284882-6063 allow for easy identification and ordering of this component within supply chains.
Additional parameters
Category: | Bearings > needle > cage > d = 20 mm > D = 24 mm |
---|---|
Weight: | 0.006 kg |
EAN: | 4054362414582 |
Cage: | steel |
Diameter D (mm): | 20, 24 |
Hole profile: | cylindrical |
Manufacturer's brand: | INA |
Maximum temperature °C: | +150 |
Minimum temperature °C: | -20 |
Width B (mm): | 10 |
Číslo výrobce: | 000284882-6063 |
Značení: | K20X24X10-A/0-7 |
Typ: | jehlová klec |
