INA K 16x22x16 needle cage

Product detailed description

INA K 16x22x16 is a needle roller cage that is part of the INA bearing range, known for its reliability and quality in the field of rolling bearings. This component is designed for applications where it is necessary to ensure effective force transmission while maintaining minimum dimensions and weight.

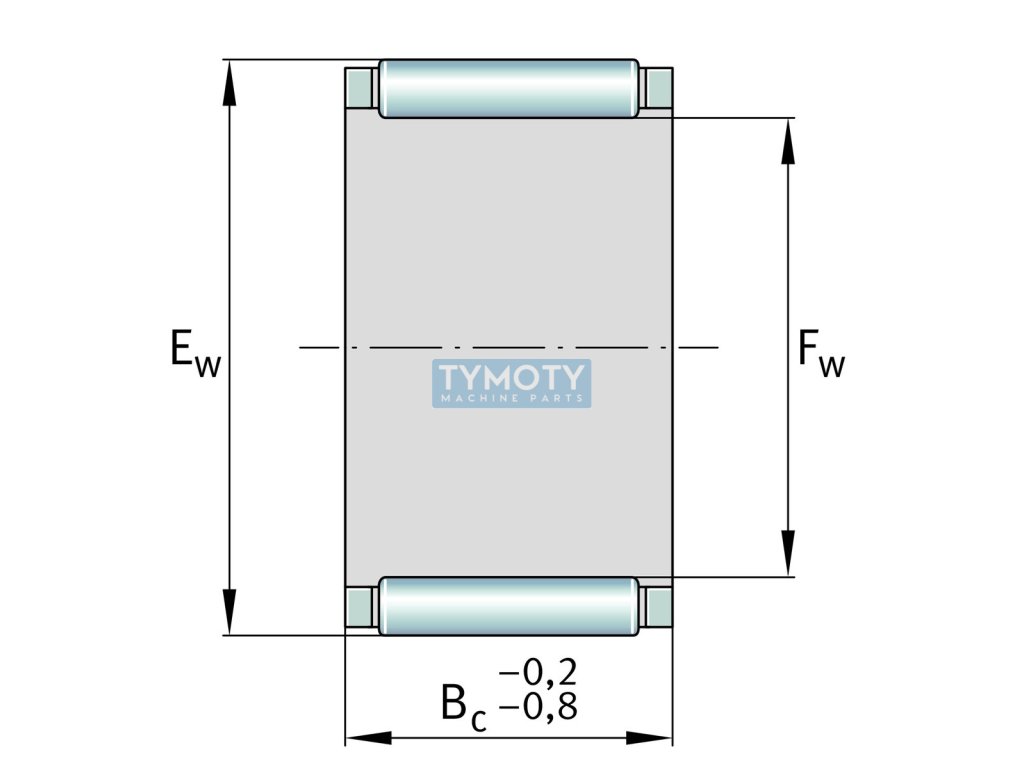

The cage has an outer diameter (D) of 22 mm, an inner diameter (d) of 16 mm and a width (B) of 16 mm. These dimensions allow it to be used in compact mechanical assemblies where space requirements need to be minimized. The hole profile is cylindrical, which simplifies assembly and ensures precise seating in the bearing housing.

Needle roller cages are characterized by their ability to transmit high radial loads while maintaining a low profile. This type of bearing is ideal for applications with limited space where high strength and wear resistance are required.

The cage is marked as K16X22X16-A/0-7, which is an older designation that may still be used in some technical documentation. The serial number 009146440-6063 allows for precise product identification when ordering or during maintenance.

Due to its design, the INA K 16x22x16 needle roller cage is suitable for a wide range of industrial applications, including automotive, mechanical engineering and plant construction, where a combination of compactness and load capacity is important.
