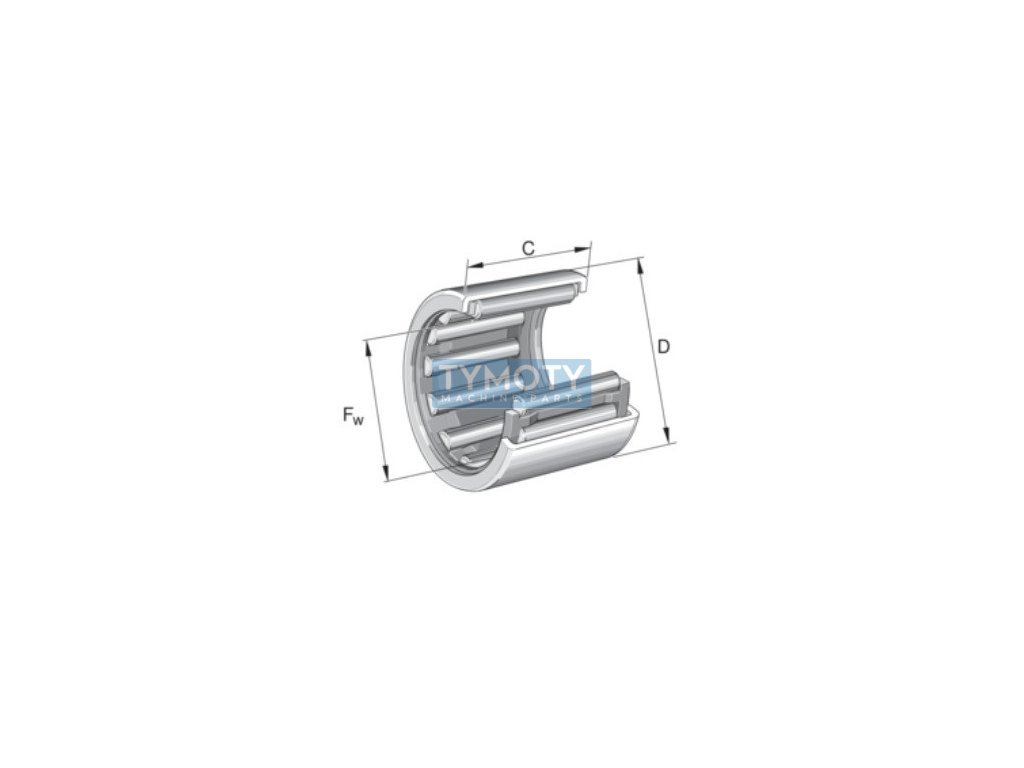

INA HK 1312 AS1 needle bearing with pressed housing

Product detailed description

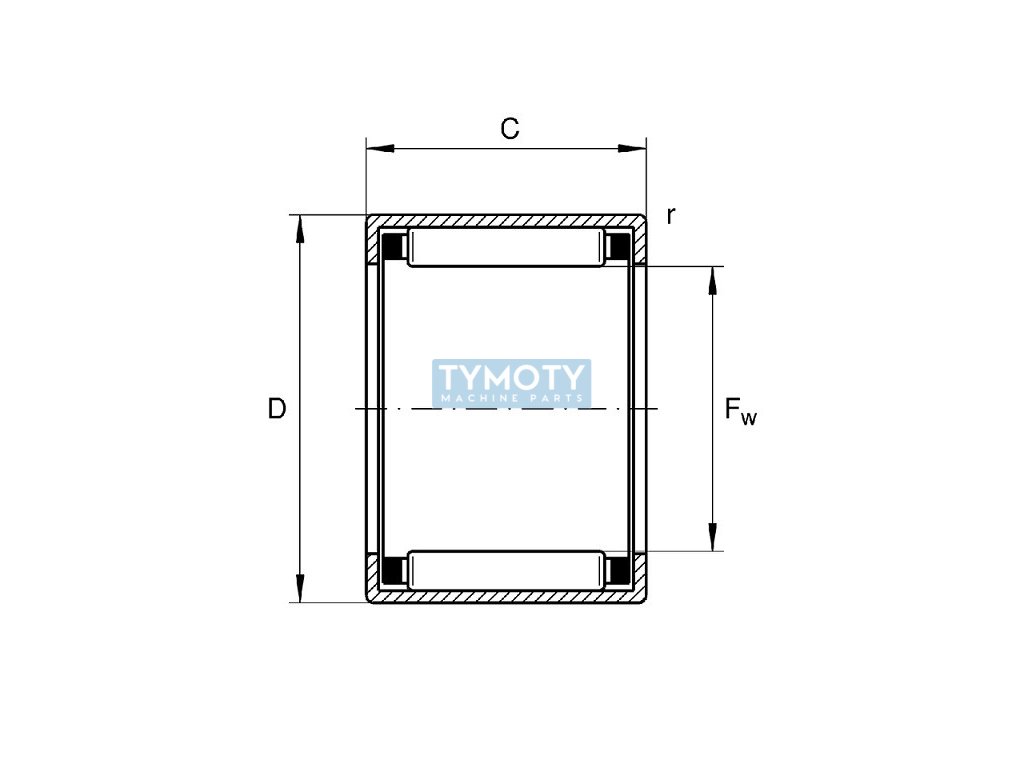

INA HK 1312 AS1 is a needle roller bearing with a pressed steel housing, designed for applications requiring a compact and lightweight solution with a high load capacity. This bearing has an inner diameter (d) of 13 mm, an outer diameter (D) of 19 mm and a width (B) of 12 mm, which makes it suitable for use in limited spaces where high power density is required.

The bearing belongs to the category of single-row needle roller bearings, which means that it contains one row of needle rollers that are housed in a pressed steel cage. This design allows for effective load distribution and reduces friction, thereby extending the life of the bearing. The bearing is sealless, which means that it is intended for applications where external lubrication is provided, and is equipped with a lubrication hole for easy maintenance.

The material composition of the bearing is steel, which ensures its high strength and wear resistance. The operating temperature range is from -30 °C to +140 °C, which allows its use in a wide range of industrial applications, including those where significant temperature fluctuations occur.

The bearing is manufactured by INA, part of the Schaeffler Group, known for its precision and quality in the field of bearing production. Weighing only 0.01 kg, this component is ideal for applications where low weight and compact dimensions are critical. Thanks to its properties, it is suitable for use in the automotive industry, mechanical engineering and other technical areas where a reliable and efficient solution for the transmission of rotary motion is required.
